> SIEMENS>CONTROL AND CONTACTORS>SIRIUS, compact starter>3RA6920-2A SIEMENS Main circuit terminals Inclusion and connection Main circuit: Spring-type terminal
Previous Product Next Product

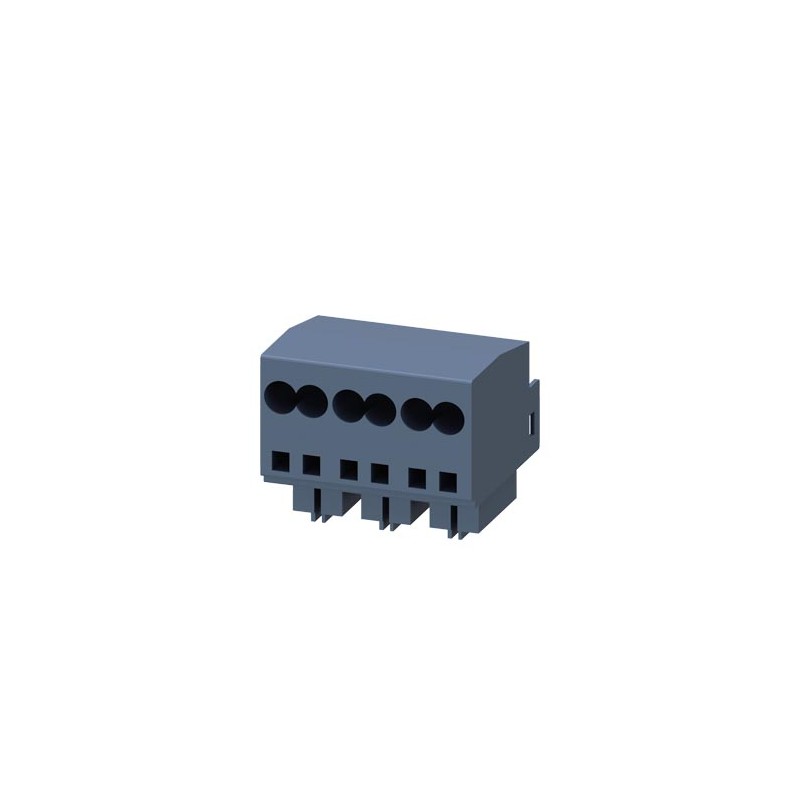

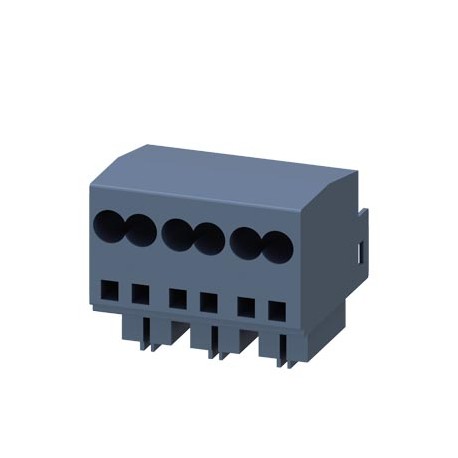

3RA6920-2A SIEMENS Main circuit terminals Inclusion and connection Main circuit: Spring-type terminal View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RA6920-2A SIEMENS Main circuit terminals Inclusion and connection Main circuit: Spring-type terminal

3RA6920-2A

SIEMENS

Main circuit terminals Inclusion and connection Main circuit: Spring-type terminal

More details


Energy distribution systems > Rail terminal bar

CONTROL AND CONTACTORS > SIRIUS, compact starter

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC000275 - Rail terminal bar

Value Unit
Number of poles (EF001391) 3
Nominal current (EF000001) -A
Connection type (EF000124) Screwless
Mounting method (EF000003) DIN rail
Number of connections total (EF008299) 0
Number of connections < 6 mm² (EF001155) 0
Number of connections 10 mm² (EF001156) 0
Number of connections 16 mm² (EF001158) 0
Number of connections 25 mm² (EF001157) 0
Number of connections > 25 mm² (EF001159) 0
Number of connections < AWG 6 (EF011966) 0
Number of connections AWG 6 (EF011967) 0
Number of connections AWG 4 (EF011968) 0
Number of connections AWG 2 (EF011969) 0
Number of connections AWG 4/0 (EF011970) 0
Number of connections 250 kcmil (EF011971) 0
Number of connections > 250 kcmil (EF011972) 0
Contact safe (EF004521) FALSE
Height (EF000040) 32.0mm
Width (EF000008) 45.0mm
Depth (EF000049) 30.0mm


Main circuit terminals Inclusion and connection Main circuit: Spring-type terminal
General technical data
Product brand nameSIRIUS
Product designationmain circuit terminals (ingoing as well as outgoing)
Protection class IPIP20
Relative humidity during operation%10 ... 90
Ambient temperature
● during transport°C-55 ... +80
● during storage°C-55 ... +80
● during operation°C-20 ... +60
Reference code acc. to DIN EN 61346-2X
Reference code acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750X
Installation/ mounting/ dimensions
Widthmm45
Heightmm32
Depthmm30
Connections/ Terminals
Wire stripping lengthmm10
Type of electrical connection
● for main current circuitspring-loaded terminals
● for auxiliary and control current circuitspring-loaded terminals
Type of connectable conductor cross-sections
● for main contacts
— solidup to 12 A: 2x (1.5 ... 6 mm²), up to 32 A: 2x (2.5 ... 6 mm²)
— finely stranded with core end processingup to 12 A: 2x (1.5 ... 6 mm²), up to 32 A: 2x (2.5 ... 6 mm²)
● at AWG conductors for main contactsup to 12 A: 2x (16 ... 14), 2x (14 ... 10), 1x 8, up to 32 A: 2x (14 ... 10), 1x 8
Certificates/ approvals
Certificate of suitabilityIEC / EN 60947-6-2
General Product ApprovalEMCDeclaration of Conformity

CSA

UL

EAC

RCM

EC/EU-Declaration of Conformity

Miscellaneous

Shipping Approval

ABS (American Bureau of Shipping)

BV / Bureau Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

other

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:08/19/2020


Product
Article Number (Market Facing Number)3RA6920-2A
Product DescriptionMain circuit terminals Inclusion and connection Main circuit: Spring-type terminal
Product familyAccessories
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group42F
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,128 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension98,00 x 113,00 x 47,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209682467
UPC754554962719
Commodity Code85369010
LKZ_FDB/ CatalogIDCC-IC10
Product Group5340
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-40-06-03
eClass7.127-40-06-03
eClass827-40-06-03
eClass927-40-06-03
eClass9.127-40-06-03
ETIM4EC000275
ETIM5EC000275
ETIM6EC000275
ETIM7EC000275
IDEA44604
UNSPSC1439-12-15-21
UNSPSC1539-12-14-32
