> SIEMENS>CONTROL AND CONTACTORS>SIRIUS, compact starter>3RA6912-2A SIEMENS Auxiliary switch 2 NC contacts Connection control circuit: Spring-type terminal
Previous Product Next Product

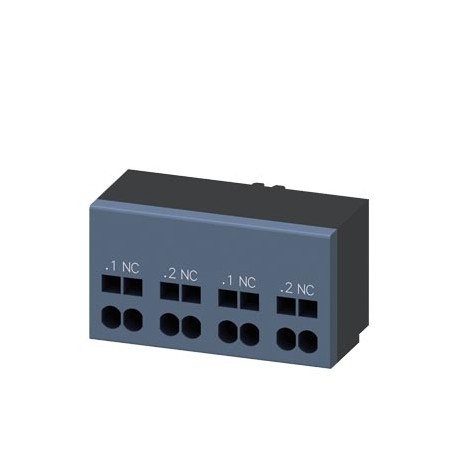

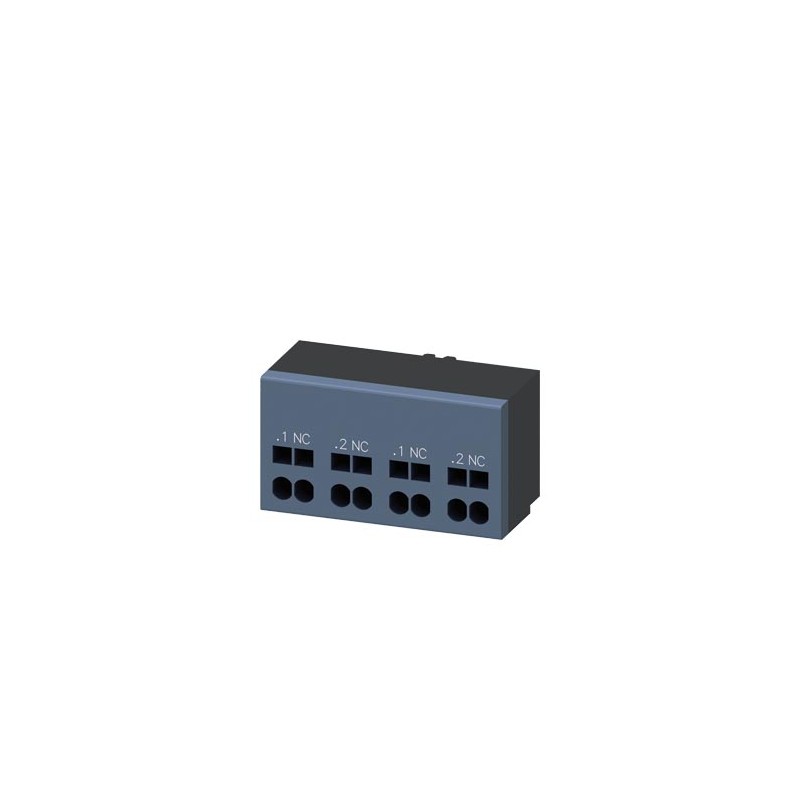

3RA6912-2A SIEMENS Auxiliary switch 2 NC contacts Connection control circuit: Spring-type terminal View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RA6912-2A SIEMENS Auxiliary switch 2 NC contacts Connection control circuit: Spring-type terminal

3RA6912-2A

SIEMENS

Auxiliary switch 2 NC contacts Connection control circuit: Spring-type terminal

More details


CONTROL AND CONTACTORS > SIRIUS, compact starter

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC000041 - Auxiliary contact block

Value Unit
Model (EF000010) -
Mounting method (EF000003) -
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 2
Number of fault-signal switches (EF007613) 0
Rated operation current Ie at AC-15, 230 V (EF001385) -A
Type of electric connection (EF003961) Spring clamp connection
Lamp holder (EF000048) None


Auxiliary switch 2 NC contacts Connection control circuit: Spring-type terminal
General technical data
Product brand nameSIRIUS
Product designationauxiliary switch compact feeder
Protection class IPIP20
Relative humidity during operation%10 ... 90
Ambient temperature
● during transport°C-55 ... +80
● during storage°C-55 ... +80
● during operation°C-20 ... +60
Reference code acc. to DIN EN 61346-2K
Reference code acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750K
Auxiliary circuit
Number of NC contacts for auxiliary contacts2
Number of NO contacts for auxiliary contacts0
Installation/ mounting/ dimensions
Widthmm45
Heightmm32
Depthmm25
Connections/ Terminals
Wire stripping lengthmm10
Type of electrical connection
● for auxiliary and control current circuitspring-loaded terminals
Type of connectable conductor cross-sections for auxiliary contacts
● solid2x (0.25 ... 2.5 mm²)
● finely stranded
— with core end processing2x (0.25 ... 1.5 mm²)
— without core end processing2x (0.25 ... 2.5 mm²)
Type of connectable conductor cross-sections at AWG conductors for auxiliary contacts2x (24 ... 14)
Certificates/ approvals
Certificate of suitabilityIEC / EN 60947-6-2
General Product ApprovalEMCFunctional Safety/Safety of Machinery

CCC

CSA

UL

EAC

RCM

Type Examination Certificate

Declaration of ConformityTest CertificatesShipping Approval

EC/EU-Declaration of Conformity

Miscellaneous

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

PRS / Polski Rejestr Statkow

Shipping Approvalother

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:06/27/2020


Product
Article Number (Market Facing Number)3RA6912-2A
Product DescriptionAuxiliary switch 2 NC contacts Connection control circuit: Spring-type terminal
Product familyAccessories
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group42F
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,028 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension49,00 x 52,00 x 73,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209684362
UPC662643360806
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5340
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-13-02
eClass7.127-37-13-02
eClass827-37-13-02
eClass927-37-13-02
eClass9.127-37-13-02
ETIM4EC000041
ETIM5EC000041
ETIM6EC000041
ETIM7EC000041
UNSPSC1439-12-15-21
UNSPSC1539-12-15-22

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RA6912-2A 3RA6912-2A EN_3RA6912-2A.pdf 218 Kbytes 3RA6912-2A 3RA6912-2A EN_3RA6912-2A.pdf
