> SIEMENS>CONTROL AND CONTACTORS>SIRIUS, compact starter>3RA6823-0AC SIEMENS Triple extension block Connection main circuit: Spring-type terminal 3 slots for compact..
Previous Product Next Product

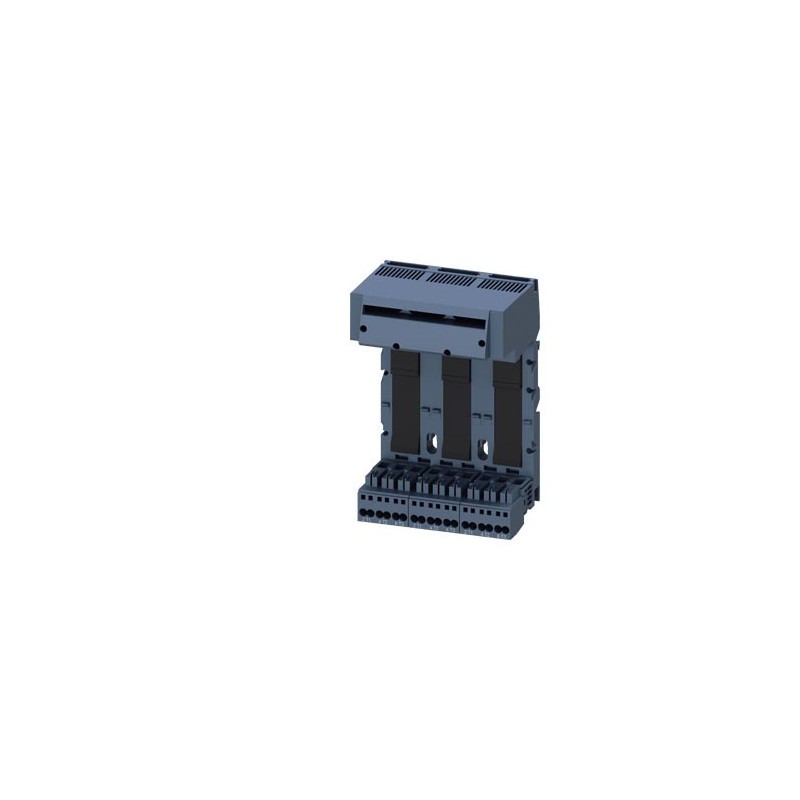

3RA6823-0AC SIEMENS Triple extension block Connection main circuit: Spring-type terminal 3 slots for compact.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RA6823-0AC SIEMENS Triple extension block Connection main circuit: Spring-type terminal 3 slots for compact..

3RA6823-0AC

SIEMENS

Triple extension block Connection main circuit: Spring-type terminal 3 slots for compact load feeders

More details


Low-voltage industrial components > Chassis part power circuit breaker

CONTROL AND CONTACTORS > SIRIUS, compact starter

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


ETIM: EC002043 - Chassis part power circuit breaker

Value Unit
Rated current In (EF008250) 63A
Number of poles (EF001391) 3
Version as busbar adapter (EF006965) false
Version as built-in device (EF006954) true
Type of electrical connection of main circuit (EF006819) Spring clamp connection


Triple extension block Connection main circuit: Spring-type terminal 3 slots for compact load feeders
General technical data
Product brand nameSIRIUS
Product designation3-expansion block
Protection class IPIP20
Degree of pollution3
Number of slots for compact feeder3
Installation altitude at height above sea level maximumm2 000
Ambient temperature
● during transport°C-55 ... +80
● during storage°C-55 ... +80
● during operation°C-20 ... +60
Vibration resistancef = 4 to 5.8 Hz; d = 15 mm; f = 5.8 to 500 Hz; a = 2 m / s2 10 cycles
Shock resistanceSemi-sinusoidal a = 6 m/s2 at 10 ms; 3 pos. and 3 neg. Shock in all axes
Reference code acc. to DIN EN 61346-2K
Reference code acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750K
Main circuit
Operating current at AC at 400 V rated valueA63
Operating voltage at AC-3 rated value maximumV690
Installation/ mounting/ dimensions
Mounting typescrew and snap-on mounting
Widthmm135
Heightmm197
Depthmm100
Connections/ Terminals
Type of electrical connection for main current circuitspring-loaded terminals
Wire stripping length for main contactsmm10
Connectable conductor cross-section for main contacts for load-side outgoing feeder
● solidmm²1.5 ... 10
● strandedmm²1.5 ... 10
● finely stranded with core end processingmm²1.5 ... 6
● finely stranded without core end processingmm²1.5 ... 6
AWG number as coded connectable conductor cross section for main contacts for load-side outgoing feeder14 ... 8
Type of connectable conductor cross-sections for main contacts for load-side outgoing feeder
● solid2x (1.5 ... 6 mm²), 1x (1.5 ... 10 mm²)
● stranded2x (1.5 ... 6 mm²), 1x (1.5 ... 10 mm²)
● finely stranded with core end processing2 x (1.5 ... 6) mm²
● finely stranded without core end processing2 x (1.5 ... 6) mm²
Type of connectable conductor cross-sections at AWG conductors for main contacts for load-side outgoing feeder2 x (16 ... 10), 1 x (16 ... 8)
Certificates/ approvals
General Product ApprovalEMCDeclaration of Conformity

CSA

UL

EAC

RCM

EC/EU-Declaration of Conformity

Miscellaneous

Test CertificatesShipping Approval

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

Shipping Approvalother

RMRS / Russian Maritime Register

Confirmation

Safety related data
Protection against electrical shockfinger-safe
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:06/27/2020


Product
Article Number (Market Facing Number)3RA6823-0AC
Product DescriptionTriple extension block Connection main circuit: Spring-type terminal 3 slots for compact load feeders
Product familyInfeed system for 3RA6
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group42F
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,946 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension241,00 x 162,00 x 127,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209725331
UPC662643360677
Commodity Code85369095
LKZ_FDB/ CatalogIDCC-IC10
Product Group5340
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-04-22
eClass7.127-37-04-22
eClass827-37-04-22
eClass927-37-04-22
eClass9.127-37-04-22
ETIM4EC002043
ETIM5EC002043
ETIM6EC002043
ETIM7EC002043
IDEA44604
UNSPSC1432-15-17-05
UNSPSC1539-12-14-32

Datasheet - PDF

▲
Title: Size: Type:
3RA6823-0AC 3RA6823-0AC EN_3RA6823-0AC.pdf 247 Kbytes 3RA6823-0AC 3RA6823-0AC EN_3RA6823-0AC.pdf
