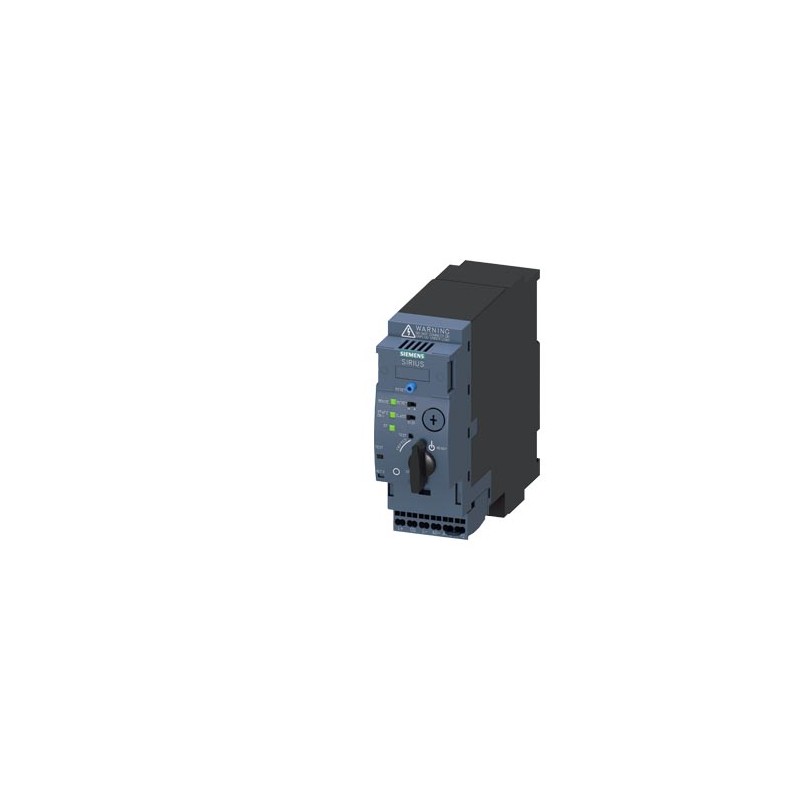

3RA6400-2BB43 SIEMENS SIRIUS Compact load feeder DOL starter for IO-Link 690 V 24 V DC 0.32...1.25 A IP20 Co.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

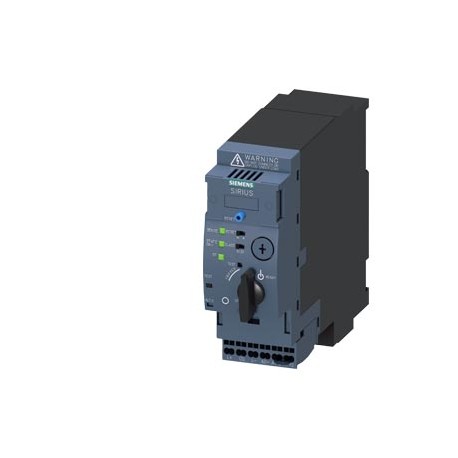

3RA6400-2BB43 SIEMENS SIRIUS Compact load feeder DOL starter for IO-Link 690 V 24 V DC 0.32...1.25 A IP20 Co..

3RA6400-2BB43

SIEMENS

SIRIUS Compact load feeder DOL starter for IO-Link 690 V 24 V DC 0.32...1.25 A IP20 Connection main circuit: plug-in, without terminals Connection control circuit: Spring-type terminal

More details


Low-voltage industrial components > Motor starter/Motor starter combination

CONTROL AND CONTACTORS > SIRIUS, compact starter

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC001037 - Motor starter/Motor starter combination

Value Unit
Ambient temperature, upper operating limit (EF009603) -°C
Supporting protocol for PROFIsafe (EF007526) -
Supporting protocol for PROFINET IO (EF007525) -
Temperature compensated overload protection (EF009604) -
Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) -A
Rated power, 460 V, 60 Hz, 3-phase (EF009600) -kW
Supporting protocol for DeviceNet Safety (EF007520) -
Supporting protocol for other bus systems (EF003062) -
Supporting protocol for Data-Highway (EF003058) -
Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) -A
Supporting protocol for DeviceNet (EF003059) -
Supporting protocol for ASI (EF003051) -
Rated operation current at AC-3, 400 V (EF009602) -A
Rail mounting possible (EF003972) -
Supporting protocol for CAN (EF003053) -
Supporting protocol for LON (EF003017) -
Rated conditional short-circuit current, type 2, 230 V (EF009606) -A
Supporting protocol for SafetyBUS p (EF007527) -
Number of command positions (EF001372) -
Supporting protocol for Modbus (EF003057) -
Rated operation power at AC-3, 230 V, 3-phase (EF009599) -kW
Supporting protocol for Foundation Fieldbus (EF007522) -
Supporting protocol for SERCOS (EF006657) -
External reset possible (EF003426) -
Supporting protocol for INTERBUS (EF003054) -
Supporting protocol for PROFIBUS (EF003052) -
Supporting protocol for SUCONET (EF003060) -
Supporting protocol for INTERBUS-Safety (EF006662) -
Supporting protocol for PROFINET CBA (EF007524) -
Rated power, 575 V, 60 Hz, 3-phase (EF009601) -kW
Supporting protocol for AS-Interface Safety at Work (EF007519) -
Suitable for emergency stop (EF001433) -
Supporting protocol for EtherNet/IP (EF007521) -
Rated conditional short-circuit current, type 2, 400 V (EF009605) -A
Degree of protection (NEMA) (EF011959) -
Number of indicator lights (EF001965) -
Supporting protocol for TCP/IP (EF003050) -
Type of motor starter (EF009598) Direct online starter (DOL)
With short-circuit release (EF006691) true
Rated control supply voltage Us at AC 50HZ (EF003978) ['-', '-']V
Rated control supply voltage Us at AC 60HZ (EF003979) ['-', '-']V
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Voltage type for actuating (EF008242) DC
Rated operation power at AC-3, 400 V (EF001364) 0.37kW
Rated operation current Ie (EF001443) 1.25A
Overload release current setting (EF002336) ['0.32', '1.25']A
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as normally closed contact (EF001377) 0
Release class (EF006668) Adjustable
Type of electrical connection of main circuit (EF006819) Other
Type of electrical connection for auxiliary- and control current circuit (EF006979) Spring clamp connection
With transformer (EF000278) false
Coordination class according to IEC 60947-4-3 (EF012390) continous operation according to IEC 60947-6-2
With fuse (EF006693) false
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 45.0mm
Height (EF000040) 191.0mm
Depth (EF000049) 165.0mm


SIRIUS Compact load feeder DOL starter for IO-Link 690 V 24 V DC 0.32...1.25 A IP20 Connection main circuit: plug-in, without terminals Connection control circuit: Spring-type terminal
product brand nameSIRIUS
Product designationCompact starter for IO-Link
Design of the productdirect starter
Product type designation3RA64
General technical data
Product function
● Control circuit interface to parallel wiringNo
Product extension
● Auxiliary switchYes
Power loss [W] for rated value of the current
● at AC in hot operating state0.1 W
● at AC in hot operating state per pole0.03 W
Power loss [W] for rated value of the current without load current share typical2.9 W
● Insulation voltage rated value690 V
Degree of pollution3
Surge voltage resistance rated value6 000 V
● Protection class IPIP20
Degree of protection NEMA ratingother
Shock resistancea=60 m/s2 (6g) with 10 ms per 3 shocks in all axes
Vibration resistancef= 4 ... 5.8 Hz, d= 15 mm; f= 5.8 ... 500 Hz, a= 20 m/s²; 10 cycles
Mechanical service life (switching cycles)
● of the main contacts typical10 000 000
● of auxiliary contacts typical10 000 000
● of the signaling contacts typical10 000 000
Electrical endurance (switching cycles) of auxiliary contacts
● at DC-13 at 6 A at 24 V typical30 000
● at AC-15 at 6 A at 230 V typical200 000
Type of assignmentcontinous operation according to IEC 60947-6-2
Reference code acc. to DIN EN 81346-2Q
Ambient conditions
Installation altitude at height above sea level
● maximum2 000 m
Ambient temperature
● during operation-20 ... +60 °C
● during storage-55 ... +80 °C
● during transport-55 ... +80 °C
Relative humidity during operation10 ... 90 %
Main circuit
Number of poles for main current circuit3
adjustable pick-up value current of the current-dependent overload release0.32 ... 1.25 A
Formula for making capacity limit current38.4 x Ie
Formula for interruption capacity limit current32 x Ie
Mechanical power output for 4-pole AC motor
● at 400 V rated value0.37 kW
● at 500 V rated value0.55 kW
● at 690 V rated value0.75 kW
Operating voltage
● at AC-3 rated value maximum690 V
Operating current
● at AC at 400 V rated value1.25 A
● at AC-43
— at 400 V rated value1.1 A
— at 500 V rated value1.2 A
— at 690 V rated value1.1 A
Operating power
● at AC-3
— at 400 V rated value370 W
● at AC-43
— at 400 V rated value370 W
— at 500 V rated value550 W
— at 690 V rated value750 W
No-load switching frequency3 600 1/h
Operating frequency
● at AC-41 acc. to IEC 60947-6-2 maximum750 1/h
● at AC-43 acc. to IEC 60947-6-2 maximum250 1/h
Control circuit/ Control
type of voltageDC
Holding power
● at DC maximum2.9 W
Auxiliary circuit
Number of NC contacts for auxiliary contacts0
Number of NO contacts for auxiliary contacts0
Number of NO contacts
● of instantaneous short-circuit trip unit for signaling contact0
Number of CO contacts
● of the current-dependent overload release for signaling contact0
Operating current of auxiliary contacts at AC-12 maximum10 A
● operating current of auxiliary contacts at DC-13 at 250 V0.27 A
Protective and monitoring functions
Trip classCLASS 10 and 20 adjustable
Operational short-circuit current breaking capacity (Ics)
● at 400 V53 kA
● at 500 V rated value3 kA
● at 690 V rated value3 kA
UL/CSA ratings
Full-load current (FLA) for three-phase AC motor
● at 480 V rated value1.25 A
● at 600 V rated value1.25 A
Yielded mechanical performance [hp]
● for three-phase AC motor
— at 460/480 V rated value0.5 hp
— at 575/600 V rated value0.5 hp
Short-circuit protection
Product function Short circuit protectionYes
Design of short-circuit protectionelectromagnetic
Design of the fuse link
● for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 10 A
Installation/ mounting/ dimensions
● mounting positionany
● Mounting position recommendedvertical, on horizontal standard mounting rail
Mounting typescrew and snap-on mounting
Height191 mm
Width45 mm
Depth165 mm
Connections/ Terminals
Product function
● removable terminal for main circuitYes
● removable terminal for auxiliary and control circuitYes
● Type of electrical connection for main current circuitplug-in without terminals
● Type of electrical connection for auxiliary and control current circuitspring-loaded terminals
Type of connectable conductor cross-sections
● for main contacts
— solid2x (1.5 ... 6 mm²), 1x 10 mm²
— finely stranded with core end processing2x (1.5 ... 6 mm²)
— finely stranded without core end processing2x (1.5 ... 6 mm²)
● at AWG conductors for main contacts2x (16 ... 10), 1x 8
Type of connectable conductor cross-sections
● for auxiliary contacts
— solid2x (0.25 ... 1.5 mm²)
— finely stranded with core end processing2x (0.25 ... 1.5 mm²)
— finely stranded without core end processing2x (0.25 ... 1.5 mm²)
● at AWG conductors for auxiliary contacts2x (24 ... 16)
Safety related data
B10 value
● with high demand rate acc. to SN 319203 000 000
Proportion of dangerous failures
● with high demand rate acc. to SN 3192050 %
Communication/ Protocol
product function bus communicationYes
Protocol is supported
● IO-Link protocolYes
Product function Control circuit interface with IO linkYes
IO-Link transfer rateCOM2 (38,4 kBaud)
Point-to-point cycle time between master and IO-Link device minimum2.5 ms
Type of voltage supply via input/output link masterNo
Amount of data
● of the address area of the inputs with cyclical transfer total2 byte
● of the address area of the outputs with cyclical transfer total2 byte
Electromagnetic compatibility
Conducted interference
● due to burst acc. to IEC 61000-4-44 kV main circuits, 2 kV auxiliary circuits, 2 kV IO-Link, 2 kV limit switches, 2 kV line hand-held device
● due to conductor-earth surge acc. to IEC 61000-4-54 kV main circuits, 0.5 kV auxiliary voltage with upstream overvoltage protection
● due to conductor-conductor surge acc. to IEC 61000-4-52 kV main circuits, 0.5 kV auxiliary voltage with upstream overvoltage protection
● due to high-frequency radiation acc. to IEC 61000-4-60.15-80Mhz at 10V
Field-bound parasitic coupling acc. to IEC 61000-4-380 ... 3000 MHz at 10V/m
Electrostatic discharge acc. to IEC 61000-4-28 kV
Conducted HF-interference emissions acc. to CISPR11150 kHz ... 30 MHz Class A
Field-bound HF-interference emission acc. to CISPR1130 ... 1000 MHz Class A
Supply voltage
Supply voltage required Auxiliary voltageYes
Display
number of LEDs3
Display version
● as status display of the input/output link devicegreen/red dual LED
Certificates/ approvals
General Product ApprovalEMCFunctional Safety/Safety of Machinery

CCC

CSA

UL

EAC

RCM

Type Examination Certificate

Declaration of ConformityTest CertificatesMarine / Shipping

EC/EU-Declaration of Conformity

Miscellaneous

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

LR (Lloyds Register)

Marine / Shippingother

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Further characteristics (e.g. electrical endurance, switching frequency)
last modified:08/13/2020


Product
Article Number (Market Facing Number)3RA6400-2BB43
Product DescriptionSIRIUS Compact load feeder DOL starter for IO-Link 690 V 24 V DC 0.32...1.25 A IP20 Connection main circuit: plug-in, without terminals Connection control circuit: Spring-type terminal
Product family3RA64 direct-on-line starters
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group42F
Surcharge for Raw MaterialsNone
Metal FactorLCO-----
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works2 Day/Days
Net Weight (kg)1,381 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension181,50 x 228,50 x 59,50
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209714816
UPC662643527421
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5341
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-09-05
eClass7.127-37-09-05
eClass827-37-09-05
eClass927-37-09-05
eClass9.127-37-09-05
ETIM4EC001037
ETIM5EC001037
ETIM6EC001037
ETIM7EC001037
IDEA44755
UNSPSC1439-12-15-21
UNSPSC1539-12-15-21

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RA6400-2BB43 3RA6400-2BB43 EN_3RA6400-2BB43.pdf 247 Kbytes 3RA6400-2BB43 3RA6400-2BB43 EN_3RA6400-2BB43.pdf

Reviews (0) ▲

No customer reviews for the moment.

Add Review
Add Review
hide form
Rating:
Name:
Email:
Subject:
Text:
Do you recommend this product to buy?
  Captcha
  Add review

Latest Customer Reviews

All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.

Newsletter
Follow us
My account
