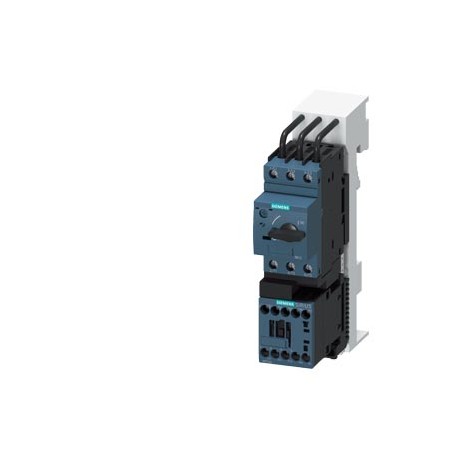

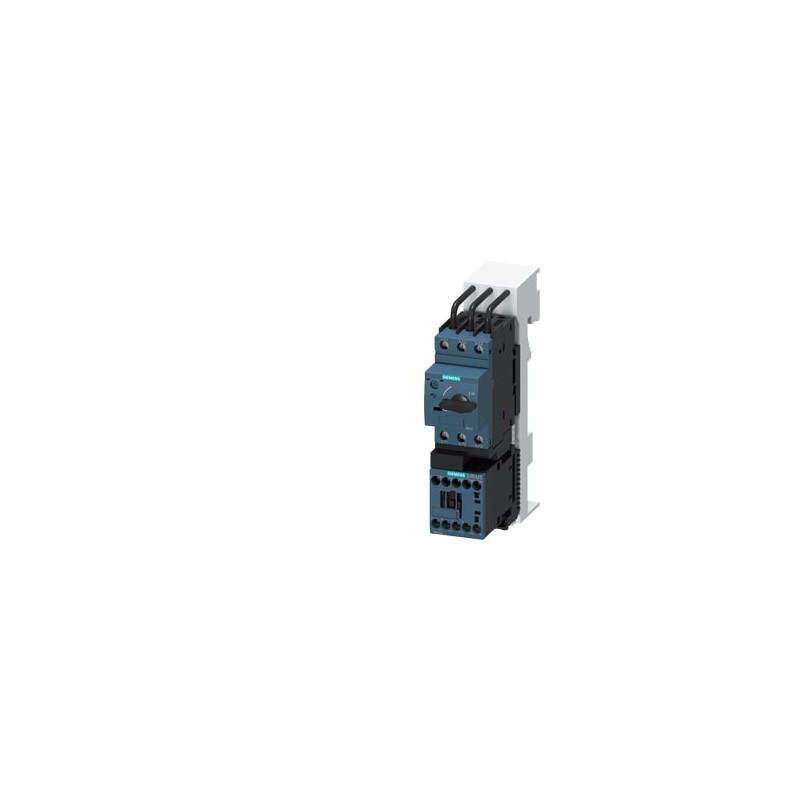

3RA2110-1ED15-1BB4 SIEMENS Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 2.80...4.00 A 24.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RA2110-1ED15-1BB4 SIEMENS Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 2.80...4.00 A 24..

3RA2110-1ED15-1BB4

SIEMENS

Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 2.80...4.00 A 24 V DC screw terminal for 60 mm busbar systems (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO (contactor)

More details


CONTROL AND CONTACTORS > Contactors for switching motors

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $190.12
Unit price: $190.12

Quantity Price
1+$190.12
2+$183.12
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Technical data

Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 2.80...4.00 A 24 V DC screw terminal for 60 mm busbar systems (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO (contactor)
product brand nameSIRIUS
product designationDirect (on-line) starter
design of the productfor 60 mm busbars
product type designation3RA21
manufacturer's article number
● of the supplied contactor3RT2015-1BB41
● of the supplied circuit-breakers3RV2011-1EA10
● of the supplied busbar adapter8US1251-5DS10
● of the supplied link module3RA1921-1DA00
General technical data
size of the circuit-breakerS00
size of load feederS00
insulation voltage with degree of pollution 3 at AC rated value690 V
surge voltage resistance rated value6 kV
degree of protection NEMA ratingother
shock resistance according to IEC 60068-2-276g / 11 ms
mechanical service life (switching cycles) of contactor typical30 000 000
type of assignment2
type of protection according to ATEX directive 2014/34/EUEx II (2) GD
certificate of suitability according to ATEX directive 2014/34/EUDMT 02 ATEX F 001
Substance Prohibitance (Date)10/01/2009
Ambient conditions
ambient temperature
● during operation-20 ... +60 °C
● during storage-50 ... +80 °C
● during transport-50 ... +80 °C
temperature compensation-20 ... +60 °C
relative humidity during operation10 ... 95 %
Main circuit
number of poles for main current circuit3
design of the switching contactelectromechanical
adjustable current response value current of the current-dependent overload release2.8 ... 4 A
operating voltage
● rated value690 V
● at AC-3 rated value maximum690 V
operating frequency rated value50 ... 60 Hz
operational current at AC-3 at 400 V rated value3.6 A
operating power at AC-3
● at 400 V rated value1 500 W
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage at DC
● rated value24 V
● rated value24 ... 24 V
holding power of magnet coil at DC4 W
Auxiliary circuit
product extension auxiliary switchYes
Protective and monitoring functions
trip classCLASS 10
design of the overload releasethermal (bimetallic)
UL/CSA ratings
full-load current (FLA) for 3-phase AC motor
● at 480 V rated value4 A
yielded mechanical performance [hp]
● for 3-phase AC motor
— at 200/208 V rated value0.75 hp
— at 220/230 V rated value1 hp
— at 460/480 V rated value2 hp
— at 575/600 V rated value3 hp
Short-circuit protection
product function short circuit protectionYes
design of the short-circuit tripmagnetic
conditional short-circuit current (Iq)
● at 400 V according to IEC 60947-4-1 rated value150 000 A
Installation/ mounting/ dimensions
mounting positionvertical
fastening methodfor snapping onto 60 mm busbar systems
height200 mm
width45 mm
depth155 mm
required spacing
● for grounded parts
— forwards20 mm
— backwards0 mm
— upwards50 mm
— at the side20 mm
— downwards10 mm
● for live parts
— forwards20 mm
— backwards0 mm
— upwards50 mm
— downwards10 mm
— at the side20 mm
Connections/ Terminals
type of electrical connection
● for main current circuitscrew-type terminals
● for auxiliary and control circuitscrew-type terminals
type of connectable conductor cross-sections
● for main contacts
— stranded0.5 ... 4 mm², 2x (0.75 ... 2.5 mm²)
● at AWG cables for main contacts2x (20 ... 16), only for contactor 2x (18 ... 14), 2x 12
connectable conductor cross-section for main contacts finely stranded with core end processing0.5 ... 2.5 mm²
Safety related data
B10 value with high demand rate according to SN 319201 000 000
proportion of dangerous failures
● with high demand rate according to SN 3192073 %
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
Communication/ Protocol
protocol is supported
● PROFINET IO protocolNo
● PROFIsafe protocolNo
protocol is supported AS-Interface protocolNo
Certificates/ approvals

Downloads and manuals

General Product ApprovalFor use in hazardous locationsDeclaration of Conformity

CSA

Confirmation

UL

EAC

ATEX-EC-Type-Examination-Certificate

EC/EU-Declaration of Conformity

Declaration of ConformityTest CertificatesMarine / Shipping

UK Declaration of Conformity

Special Test Certificate

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

LR (Lloyds Register)

Marine / ShippingotherRailway

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

DNV-GL

Confirmation

Vibration and Shock

Dangerous Good

Transport Information

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Further characteristics (e.g. electrical endurance, switching frequency)
last modified:2/16/2022
Date
5/11/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RA2110-1ED15-1BB4
Product DescriptionLoad feeder fuseless, Direct-on-line starting 400 V AC, Size S00 2.80...4.00 A 24 V DC screw terminal for 60 mm busbar systems (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO (contactor)
Product familySIRIUS 3RA2 load feeders
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41D / 41D
Surcharge for Raw MaterialsNone
Metal FactorLCO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works20 Day/Days
Net Weight (kg)1,123 Kg
Packaging Dimension221,00 x 306,00 x 87,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209796720
UPC662643898392
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5348
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-09-05
eClass7.127-37-09-05
eClass827-37-09-05
eClass927-37-09-05
eClass9.127-37-09-05
ETIM5EC001037
ETIM6EC001037
ETIM7EC001037
ETIM8EC001037
IDEA44741
UNSPSC1439-12-15-21
UNSPSC1539-12-15-21

ETIM data

ETIM: EC001037 - Motor starter/Motor starter combination

Value Unit
Supporting protocol for Modbus (EF003057) -
Rated conditional short-circuit current, type 2, 230 V (EF009606) -A
Rated power, 460 V, 60 Hz, 3-phase (EF009600) -kW
Supporting protocol for SafetyBUS p (EF007527) -
Supporting protocol for PROFINET IO (EF007525) -
Rail mounting possible (EF003972) -
Supporting protocol for SUCONET (EF003060) -
Supporting protocol for DeviceNet (EF003059) -
Supporting protocol for LON (EF003017) -
Supporting protocol for PROFINET CBA (EF007524) -
Supporting protocol for EtherNet/IP (EF007521) -
Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) -A
Rated conditional short-circuit current, type 2, 400 V (EF009605) -A
Supporting protocol for Foundation Fieldbus (EF007522) -
Supporting protocol for AS-Interface Safety at Work (EF007519) -
Supporting protocol for DeviceNet Safety (EF007520) -
Type of electrical connection for auxiliary- and control current circuit (EF006979) -
Supporting protocol for other bus systems (EF003062) -
Supporting protocol for INTERBUS-Safety (EF006662) -
Rated power, 575 V, 60 Hz, 3-phase (EF009601) -kW
Supporting protocol for PROFIsafe (EF007526) -
Supporting protocol for ASI (EF003051) -
Suitable for emergency stop (EF001433) -
Temperature compensated overload protection (EF009604) -
Ambient temperature, upper operating limit (EF009603) -°C
Rated operation power at AC-3, 230 V, 3-phase (EF009599) -kW
Number of command positions (EF001372) -
Supporting protocol for TCP/IP (EF003050) -
External reset possible (EF003426) -
Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) -A
Degree of protection (NEMA) (EF011959) -
Supporting protocol for PROFIBUS (EF003052) -
Supporting protocol for CAN (EF003053) -
Supporting protocol for INTERBUS (EF003054) -
Supporting protocol for Data-Highway (EF003058) -
Supporting protocol for SERCOS (EF006657) -
Type of motor starter (EF009598) Other
With short-circuit release (EF006691) true
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Voltage type for actuating (EF008242) DC / DC
Rated operation power at AC-3, 400 V (EF001364) 1.5kW
Rated operation current Ie (EF001443) 3.6A
Rated operation current at AC-3, 400 V (EF009602) 3.6A
Overload release current setting (EF002336) ['2.8', '4']A
Number of auxiliary contacts as normally open contact (EF001376) -
Number of auxiliary contacts as normally closed contact (EF001377) -
Release class (EF006668) CLASS 10
Type of electrical connection of main circuit (EF006819) Screw connection
With transformer (EF000278) false
Coordination class according to IEC 60947-4-3 (EF012390) Class 2
Number of indicator lights (EF001965) 0
With fuse (EF006693) false
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 45.0mm
Height (EF000040) 200.0mm
Depth (EF000049) 155.0mm
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V
