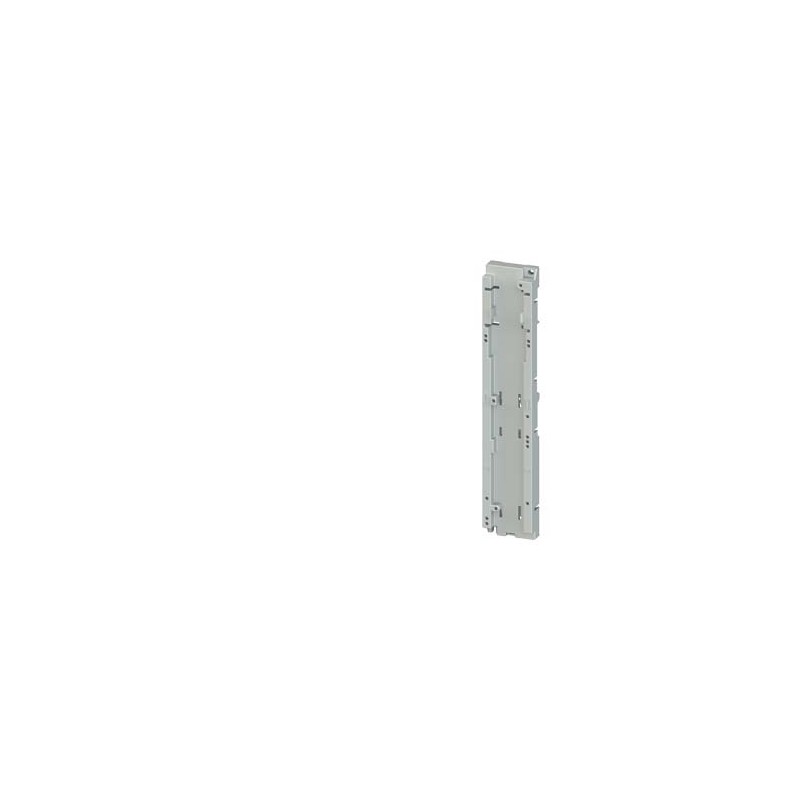

3RA1932-1AA00 SIEMENS Standard mounting rail adapter Size S2, for mechanical attachment of circuit breaker a.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RA1932-1AA00 SIEMENS Standard mounting rail adapter Size S2, for mechanical attachment of circuit breaker a..

3RA1932-1AA00

SIEMENS

Standard mounting rail adapter Size S2, for mechanical attachment of circuit breaker and contactor Can be snapped on standard mounting rail or for screw mounting (individual unit packaging) !!! Phased-out product !!! Successor is SIRIUS 3RA2 Preferred successor type is >>3RA2932-1AA00<

More details


Low-voltage industrial components > DIN-rail adapter

CONTROL AND CONTACTORS > Contactors for switching motors

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


ETIM: EC001024 - DIN-rail adapter

Value Unit
Type of fastening (EF002442) DIN rail (top hat rail) 35 mm
Type of DIN-rail adapter (EF008236) Straight
Material (EF002169) Plastic


Standard mounting rail adapter Size S2, for mechanical attachment of circuit breaker and contactor Can be snapped on standard mounting rail or for screw mounting (individual unit packaging) !!! Phased-out product !!! Successor is SIRIUS 3RA2 Preferred successor type is >>3RA2932-1AA00<<
General technical data
Product brand nameSIRIUS
Product designationmounting rail adapter
Design of the productfor mechanical mounting of circuit breaker and contactor
Size of the circuit-breakerS2
Size of contactorS2
Installation/ mounting/ dimensions
Mounting typescrew and snap-on mounting onto 35 mm standard mounting rail
Widthmm55
Heightmm295
Depthmm28
Certificates/ approvals
Certificate of suitabilityCE / UL
General Product ApprovalDeclaration of ConformityShipping Approvalother

EAC

EC/EU-Declaration of Conformity

Miscellaneous

ABS (American Bureau of Shipping)

RINA / Registro Italiano Navale

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:07/28/2020


Product
Article Number (Market Facing Number)3RA1932-1AA00
Product DescriptionStandard mounting rail adapter Size S2, for mechanical attachment of circuit breaker and contactor Can be snapped on standard mounting rail or for screw mounting (individual unit packaging) !!! Phased-out product !!! Successor is SIRIUS 3RA2 Preferred successor type is >>3RA2932-1AA00<<
Product familyNot available
Product Lifecycle (PLM)PM410:Product cancellation
PLM Effective DateProduct is cancelled since: 01.10.2019
Notes
Sucessor:Successor SIRIUS Innovation 3RA2
Price data
Price Group41B
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsECCN : N / AL : N
Standard lead time ex-works20 Day/Days
Net Weight (kg)0,204 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension58,00 x 300,00 x 31,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209516557
UPC754554899121
Commodity Code85389099
LKZ_FDB/ CatalogIDCC-IC10
Product Group3729
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
Not available

Datasheet - PDF

▲
Title: Size: Type:
3RA1932-1AA00 3RA1932-1AA00 EN_3RA1932-1AA00.pdf 148 Kbytes 3RA1932-1AA00 3RA1932-1AA00 EN_3RA1932-1AA00.pdf
