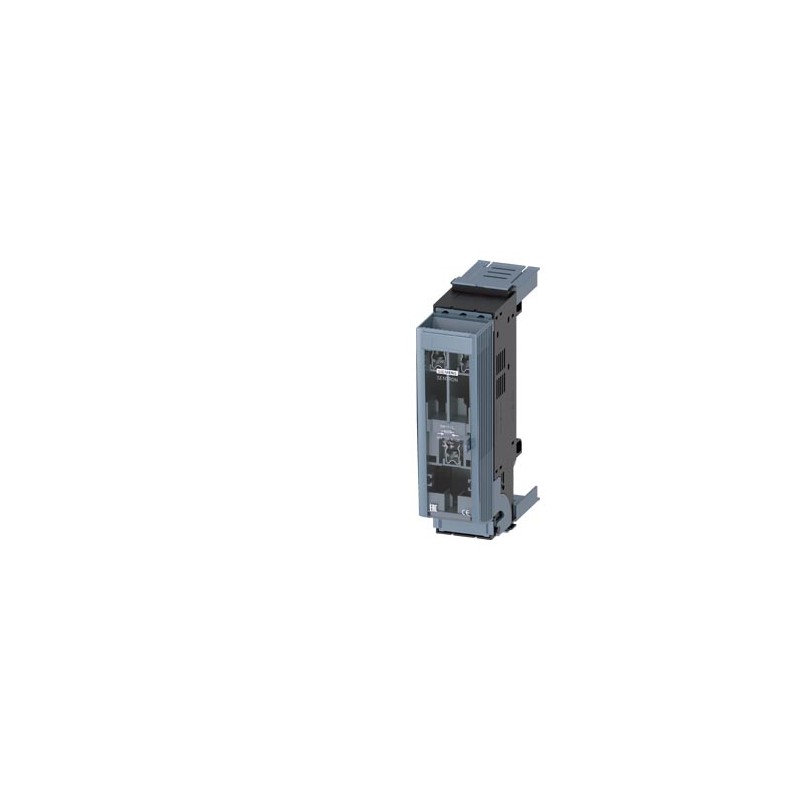

3NP1113-2BC20 SIEMENS SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH000 narrow, 125 A, for busbar system.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3NP1113-2BC20 SIEMENS SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH000 narrow, 125 A, for busbar system..

3NP1113-2BC20

SIEMENS

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH000 narrow, 125 A, for busbar systems 60 mm, box terminal, cable outlet upwards Cover level 32/60/70 mm

SENTRON, 3NP1 fuse switch-disconnector, three-pole, NH000 narrow, 125 A, for 60 mm busbar systems, frame-type terminal, cable outlet from above, deck plane 32/60/70 mm. Limited return and cancellation. Check conditions.

More details


POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > SWITCHES-DISCONNECTORS

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $241.24
Unit price: $241.24
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Product
Article Number (Market Facing Number)3NP1113-2BC20
Product DescriptionSENTRON, Fuse switch disconnector 3NP1, 3-pole, NH000 narrow, 125 A, for busbar systems 60 mm, box terminal, cable outlet upwards Cover level 32/60/70 mm
Product familySENTRON 3NP1 Fuse Switch Disconnectors up to 630 A
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group14M / 53Q
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works3 Day/Days
Net Weight (kg)0,745 Kg
Packaging Dimension146,00 x 226,00 x 106,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869599588
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10
Product Group5863
Group CodeP360
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 29.01.2021
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass1227-37-14-01
eClass1427-37-14-01
eClass627-37-14-01
eClass7.127-37-14-01
eClass827-37-14-01
eClass927-37-14-01
eClass9.127-37-14-01
ETIM10EC001040
ETIM7EC001040
ETIM8EC001040
ETIM9EC001040

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3NP1113-2BC20 EN_3NP1113-2BC20.pdf 460 Kbytes 3NP1113-2BC20 EN_3NP1113-2BC20.pdf
