3LD3450-1TL11
SIEMENS
1

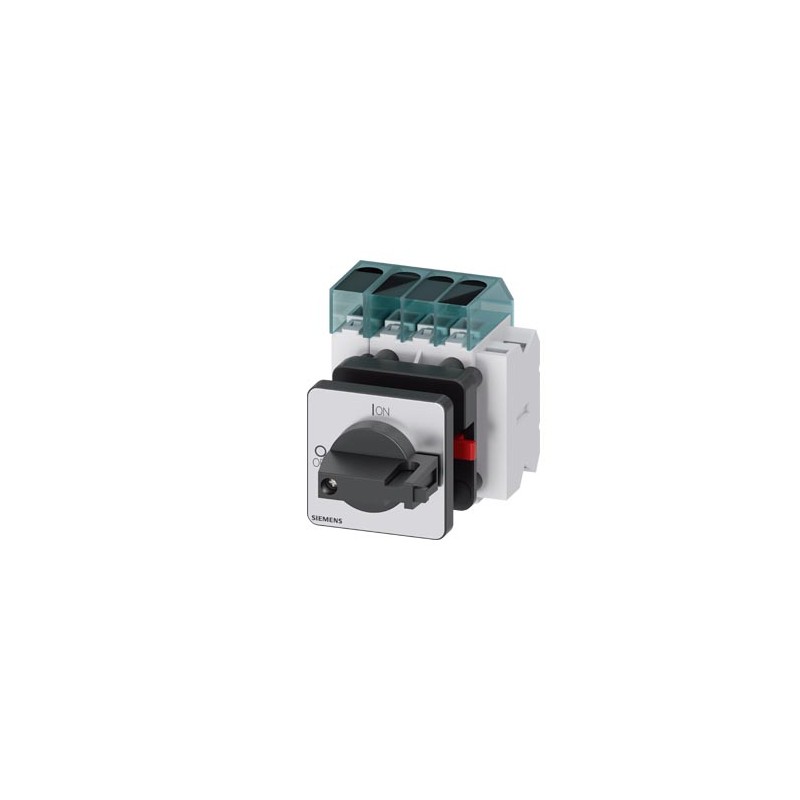

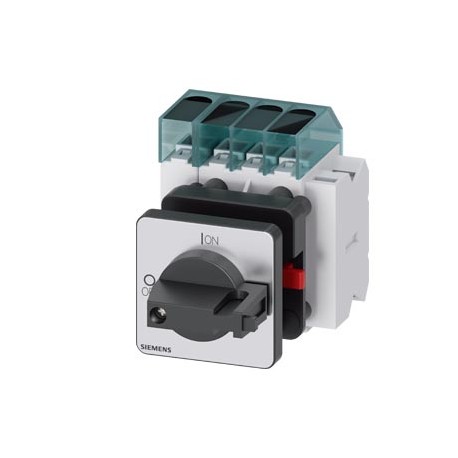

Load disconnector 3LD3, Iu 63 A Main switch 3-pole + N Rated operating capacity at AC-23 A at 400V 22.0 kW Front plate mounting Basic switch with Central hole mounting 22.5mm Toggle drive black 48x48 mm with auxiliary switch 1OE + 1S
INTERR. PPAL 3LD3 3 POLOS + N, LU 63A P/AC WITH 400V= 22.0 kW FRONT FIXING FIXING IN SINGLE DRILL 22.5 mm BLACK NET 48 x 48 mm WITH AUXILIARY CONTACTS 1NA+1NC. Cancelations and returns limited. Consult conditions.
POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > SWITCHES-DISCONNECTORS
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product | ||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3LD3450-1TL11 | |||||||||||||||||||||||||||||||||
Product Description | Load disconnector 3LD3, Iu 63 A Main switch 3-pole + N Rated operating capacity at AC-23 A at 400V 22.0 kW Front plate mounting Basic switch with Central hole mounting 22.5mm Toggle drive black 48x48 mm with auxiliary switch 1OE + 1S | |||||||||||||||||||||||||||||||||
Product family | Basic Devices | |||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
Price data | ||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 12R / 1CL | |||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
Metal Factor | None | |||||||||||||||||||||||||||||||||
Delivery information | ||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
Standard lead time ex-works | 130 Day/Days | |||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,261 Kg | |||||||||||||||||||||||||||||||||
Packaging Dimension | 79,00 x 85,00 x 110,00 | |||||||||||||||||||||||||||||||||
Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
Additional Product Information | ||||||||||||||||||||||||||||||||||
EAN | 4001869552026 | |||||||||||||||||||||||||||||||||
UPC | Not available | |||||||||||||||||||||||||||||||||
Commodity Code | 85365080 | |||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | LV10 | |||||||||||||||||||||||||||||||||
Product Group | 5887 | |||||||||||||||||||||||||||||||||
Group Code | P360 | |||||||||||||||||||||||||||||||||
Country of origin | Germany | |||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2006 | |||||||||||||||||||||||||||||||||
Product class | B: return restricted, please contact your Siemens partner/contact | |||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
Classifications | ||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Number of switches (EF005586) | - | |
Degree of protection (NEMA) (EF011959) | - | |
Rated permanent current at AC-23, 400 V (EF011777) | - | A |
Version as main switch (EF006981) | true | |
Version as maintenance-/service switch (EF006986) | true | |
Version as safety switch (EF006985) | true | |
Version as emergency stop installation (EF006959) | true | |
Version as reversing switch (EF009408) | false | |
Max. rated operation voltage Ue AC (EF007355) | 690 | V |
Rated permanent current Iu (EF001389) | 63.0 | A |
Rated permanent current at AC-21, 400 V (EF009165) | 63 | A |
Rated operation power at AC-3, 400 V (EF001364) | 18.5 | kW |
Rated short-time withstand current lcw (EF007050) | 1.0 | kA |
Number of poles (EF001391) | 4 | |
Number of auxiliary contacts as normally closed contact (EF001377) | 1 | |
Number of auxiliary contacts as normally open contact (EF001376) | 1 | |
Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
Motor drive optional (EF007386) | false | |
Motor drive integrated (EF006697) | false | |
Voltage release optional (EF007491) | false | |
Device construction (EF008240) | Built-in device fixed built-in technique | |
Suitable for floor mounting (EF007243) | FALSE | |
Suitable for front mounting 4-hole (EF007247) | false | |
Suitable for front mounting centre (EF007248) | true | |
Suitable for distribution board installation (EF007262) | false | |
Suitable for intermediate mounting (EF007264) | false | |
Colour control element (EF007167) | Black | |
Type of control element (EF006976) | Toggle | |
Interlockable (EF006281) | true | |
Type of electrical connection of main circuit (EF006819) | Frame clamp | |
Degree of protection (IP), front side (EF003118) | IP65 | |
Rated operating voltage (EF001435) | - | V |
Switching power at 400 V (EF009166) | - | kW |
Conditioned rated short-circuit current Iq (EF001444) | - | kA |
Rated operation power at AC-23, 400 V (EF007027) | - | kW |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
![]() |
3LD3450-1TL11 3LD3450-1TL11 EN_3LD3450-1TL11.pdf | 618 Kbytes |
![]() |
