644.0210-J10 SCAME EX ENCLOSURE 75x110x75 10WAGO View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

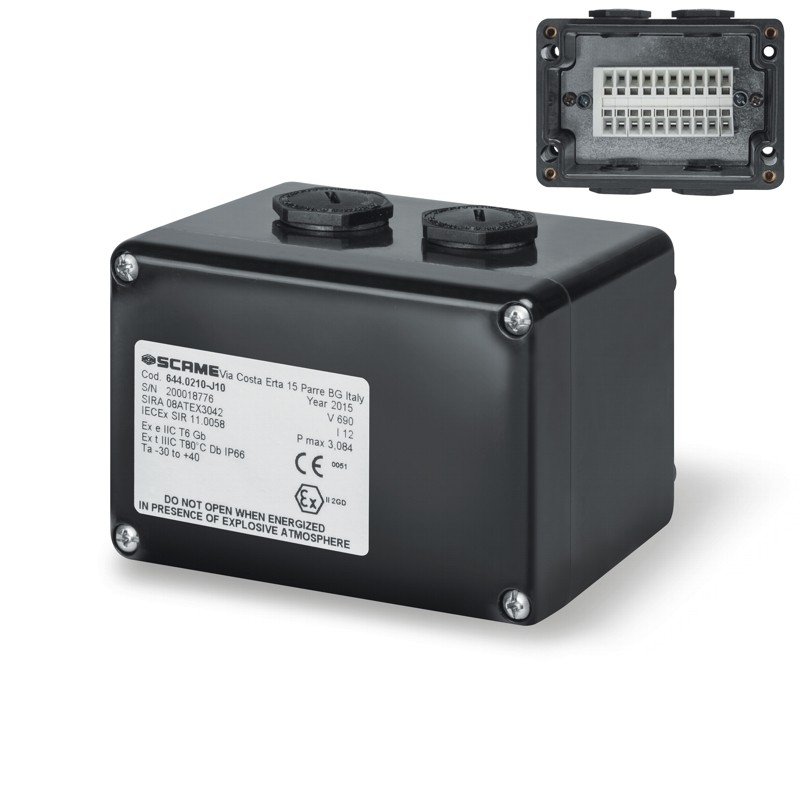

644.0210-J10 SCAME EX ENCLOSURE 75x110x75 10WAGO

644.0210-J10

SCAME

EX ENCLOSURE 75x110x75 10WAGO

EX BOX 75x110x75mm 10WAGO

110x75x55mm IP66 GW 960°C TERMINAL BOX BLACK THERMOSETTING

More details


Connection devices > Box/housing for surface mounting on the wall/ceiling

Distribution assemblies - SCAME > ZENITH-P Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $136.09
Unit price: $136.09
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
ZENITH-P Series
Synthetical description
SURFACE MOUNTING BOX
Protection degree
Splash proof
Protection degree IP
IP66
Material
THERMOSETTING
Impact resistance
7J
Equipment
Junction box
Terminal block
10x2,5mm² CAGE TERMINAL
GLOW WIRE
GW 960°C
Colour
BLACK
Dimensions
110x75x55mm
Cable entry
4xM20 PLUGGED
Cable size
plugged
Rated current (value)
12,0 A
Rated Sizing Voltage (Value)
690 V
Maximum power dissipation
3,050 W
Group and categories EX
II 2GD
Modo protezione gas
Ex eb IIC T6 Gb
Dust protection
Ex tb IIIC T80°C Db IP66
Ambient temperature Ta min
-30 °C
Ambient temperature Ta max
40 °C
Catalogue notes
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.


Datasheet - PDF
