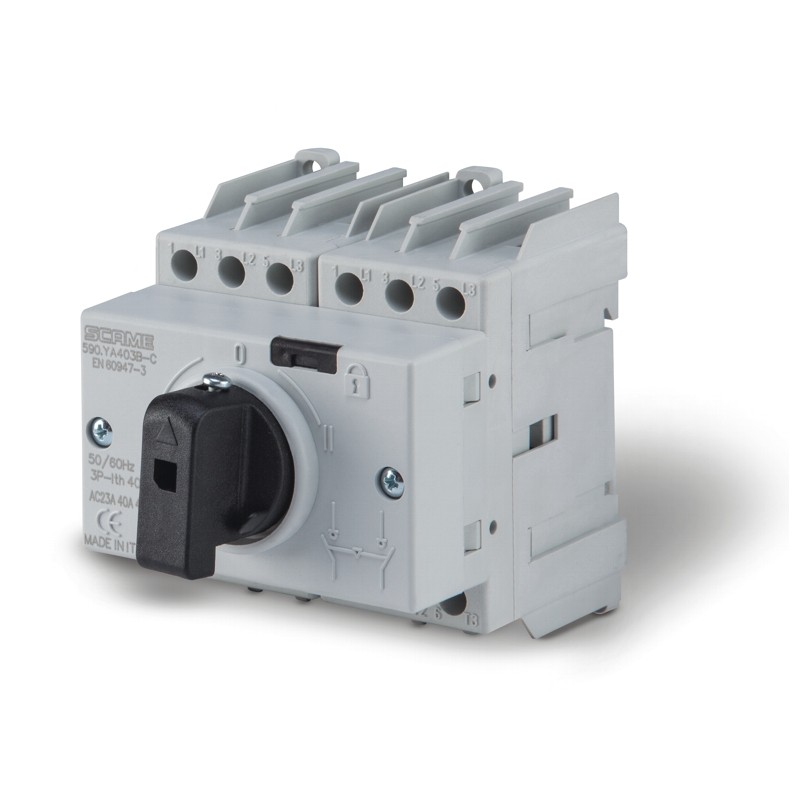

590.YA256B SCAME SWITCH DISCONNECTOR 25A 6P B View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

590.YA256B SCAME SWITCH DISCONNECTOR 25A 6P B

590.YA256B

SCAME

SWITCH DISCONNECTOR 25A 6P B

BODY INT. MANEUVER 25A 6P B

25A 6P Y3 BOX (B)

More details


Low-voltage industrial components > Switch disconnector

Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $115.42
Unit price: $115.42
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
COMMAND Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Open type
Mounting version
B
Material
THERMOPLASTIC
Installation temperature
-25°C/+60°C
Type
BOX (B)
Rated current
25A
Poles
6P
Switch size
Y3
Rated voltage
690V
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
32A
Current (Ie) in AC21A (415V)
32A
Current (Ie) in AC21A (500V)
32A
Current (Ie) in AC21A (690V)
32A
Current (Ie) in AC22A (415V)
25A
Current (Ie) in AC22A (500V)
25A
Current (Ie) in AC22A (690V)
25A
Current (Ie) in AC23A (415V)
25A
Current (Ie) in AC23A (500V)
25A
Current (Ie) in AC23A (690V)
25A
Power AC23A (415V)
11kW
Short-time current
1,1kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
25A
Terminals - Flexible wires
2.5-16mm²
Terminals - Rigid wires
2.5-16mm²
Catalogue notes
Equipped with direct handle
BOX (B) = Base mounting
DIN rail / screw fixing


Datasheet - PDF
