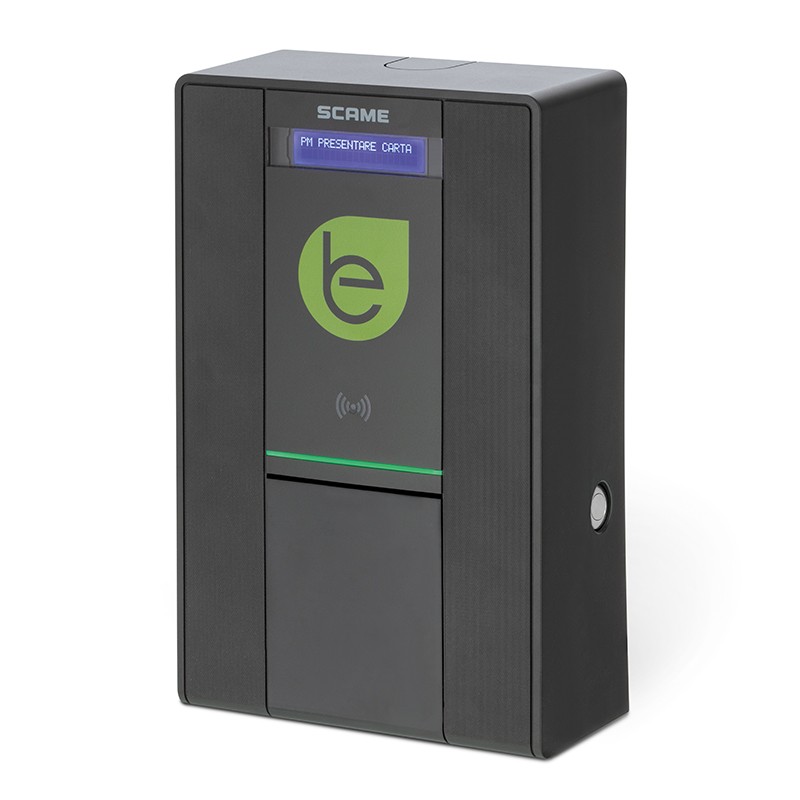

205.W65-A0 SCAME WALL BOX 1 SOCKET TYPE 2 Type 2 1P+N+T 16A 230V~ 3.7 kW 16A 230V 1P+N+T IP 54 IK08 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

205.W65-A0 SCAME WALL BOX 1 SOCKET TYPE 2 Type 2 1P+N+T 16A 230V~ 3.7 kW 16A 230V 1P+N+T IP 54 IK08

205.W65-A0

SCAME

WALL BOX 1 SOCKET TYPE 2 Type 2 1P+N+T 16A 230V~ 3.7 kW 16A 230V 1P+N+T IP 54 IK08

Type 2 1P+N+E 16A 230V~ 3,7kW 16A 230V 1P+N+E IP54 IK08 OCPP 1.6 JSON

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
BE-W Series
Synthetical description
WALL BOX 1 SOCKET TYPE 2
Material
ENGINEERING PLASTIC
Rated current
16A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
ANTHRACITE
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
235x370x115mm

Version
PRO
EV standard
Type 2 1P+N+E 16A 230V~ 3,7kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
Connectivity
WiFi
Communication protocol
OCPP 1.6 JSON
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
protection against overcurrents and electric shock
interfacing with OCPP Central Station
working in mode stand-alone free
managing of latching system
wireless connection to web
EV equipment
1 backup battery
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 DC Leakage detector
1 control card
1 stop charge push-button (mode free)
1 lcd display 2x20 rows backlight
1 RBG led stripes
1 local server wired with OCPP 1.6J protocol
1 digital energy meter 1P+N 40A
1 terminal strip 3x10mm²
1 modular contactor 2P 25A 24Vdc
1 circuit breaker 1P+N D20 30mA ist. A
1 dongle 3G

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
205.W65-A0 205.W65-A0 EN_205.W65-A0.pdf 43 Kbytes 205.W65-A0 205.W65-A0 EN_205.W65-A0.pdf
