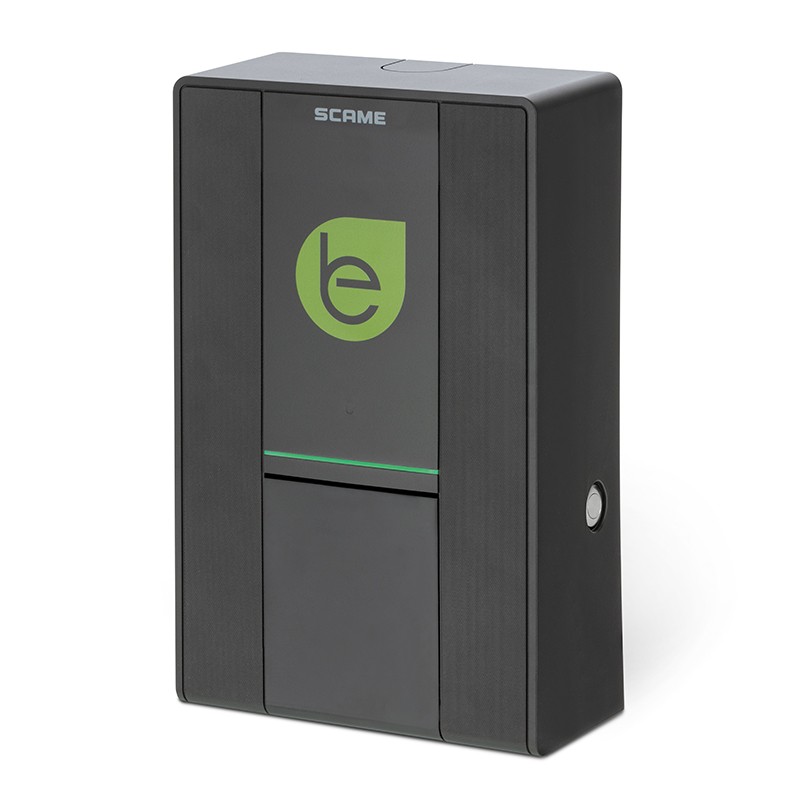

205.W20-D0 SCAME WALL BOX 1 SOCKET TYPE 2 Type 2 3P+N+T 32A 400V~ 22kW 32A 400V 3P+N+T IP 54 IK08 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

205.W20-D0 SCAME WALL BOX 1 SOCKET TYPE 2 Type 2 3P+N+T 32A 400V~ 22kW 32A 400V 3P+N+T IP 54 IK08

205.W20-D0

SCAME

WALL BOX 1 SOCKET TYPE 2 Type 2 3P+N+T 32A 400V~ 22kW 32A 400V 3P+N+T IP 54 IK08

Type 2 3P+N+E 32A 400V~ 22kW 32A 400V 3P+N+E IP54 IK08

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
BE-W Series
Synthetical description
WALL BOX 1 SOCKET TYPE 2
Material
ENGINEERING PLASTIC
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
ANTHRACITE
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
235x370x115mm

Version
SOLO
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
working in mode stand-alone free
managing of latching system
current consuption metering
EV equipment
1 terminal strip 5x10mm²
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 control card
1 stop charge push-button (mode free)
1 RBG led stripes
1 backup battery
1 modular contactor 4P 40A 24Vdc
1 current transformer
EV excluded
upstream protections (by the installer):
1 circuit breaker 3P+N C40 30mA ist. B

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
205.W20-D0 205.W20-D0 EN_205.W20-D0.pdf 42 Kbytes 205.W20-D0 205.W20-D0 EN_205.W20-D0.pdf
Download general catalog Download general catalog
