> SCAME>205.B52-CC SCAME BE-B COLUMN 2 T2 SOCKETS 11kW
ANUNCIAR
Previous Product Next Product

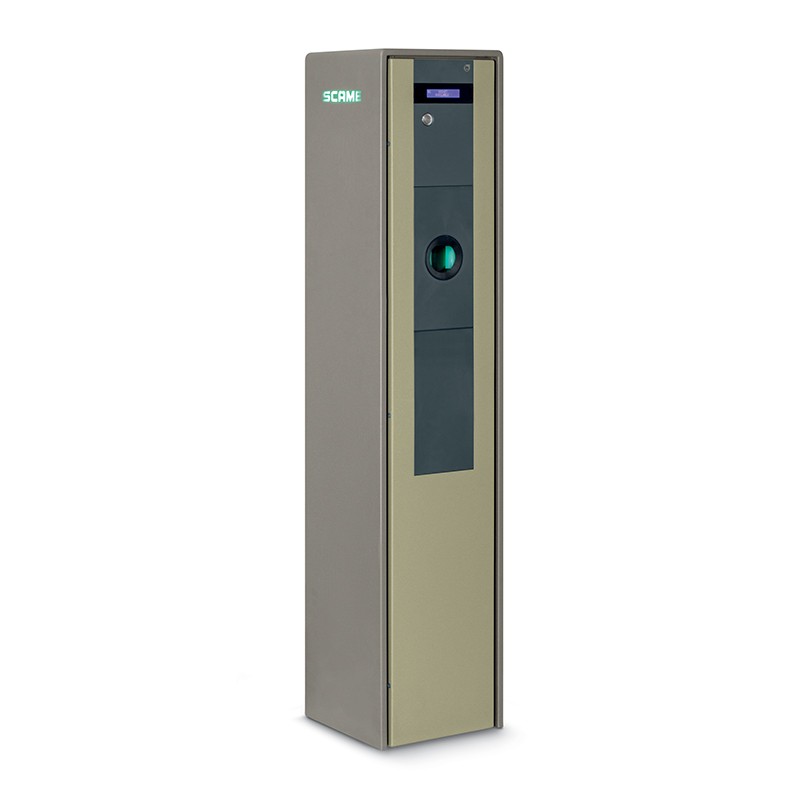

205.B52-CC SCAME BE-B COLUMN 2 T2 SOCKETS 11kW View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

205.B52-CC SCAME BE-B COLUMN 2 T2 SOCKETS 11kW

205.B52-CC

SCAME

BE-B COLUMN 2 T2 SOCKETS 11kW

COLUMN BE-B Type 2 3P+N+T 16A 400V~ 11kW 32A 400V 3P+N+T-IP54 IK10

Type 2 3P+N+E 16A 400V~ 11kW 32A 400V 3P+N+E IP54 IK10 OCPP 1.6 JSON 2x11kW (16A)

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $6,552.88
Unit price: $6,552.88
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
BE-B Series
Synthetical description
PILLAR BE-B
Material
VARNISHED METAL
Output
2x11kW (16A)
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
BRONZE
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
300x1466x300mm

Version
PRO
EV standard
Type 2 3P+N+E 16A 400V~ 11kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
Ethernet
Communication protocol
OCPP 1.6 JSON
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
protection against direct contact Safety Child Shutters
working in mode stand-alone free or personal
charge managing in case of power outage
identification of connected cord-set size
protection against overcurrents and electric shock
interfacing with OCPP Central Station
managing of lid locking and latching system
load Balancing function
EV equipment
1 base with separation chamber
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 backup battery
1 local server wired with OCPP 1.6J protocol
2 DC Leakage detectors
2 control cards
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
2 stop charge push-buttons (mode free)
1 terminal strip 5x35mm²
1 main switch 4P 40A
2 circuit breakers 3P+N C20 30mA ist. A
2 sockets located on the side with RGB Led
2 digital energy meters MID 3P+N 80A
2 modular contactors 4P 25A 24Vdc
EV specifications
Pillar in powder paint galvanized steel with sockets located on the side and illuminated with LED frame for signaling status.<br> Prepared for floor installation with basement with function of anti-condensation separation room.<br> Equipped with:<br> 2 sockets Type 2 in compliance with IEC/EN 62196-2 for mode 3 charging in compliance with IEC/EN 61851-1, equipped with shutter protection (IPXXD degree of protection without any additional devides), plug latching system to avoid unintetional withdraw under load, vandal-proof lockable lid, maximum supply current 16A three-phase 400Vac (11kW).<br> Complete with:<br> Automatic and residual current device for protection against over currents and indirect contact.<br> Digital meter for the measurement of the energy delivered and the control of current cosumption, MID certifided «DC Leakage» devices for detection of contiunuos earth leakage current (>=6 mA).<br> Backup batteries to ensure continuity of service in the case of power outage.<br> «Save Unlook» system to ensure the possibility of extracting the connector in the event of a blackout.<br> RFID reader for user identification and management of the charge, working in FREE or PERSONAL stand-alone mode.<br> LCD backlit display 2x20 character, for messages and diagnostic management with the possibility to change the language through the button.<br> Push button for display language changing and STOP to end the charge and allow plug extraction in FREE mode.<br> Remote control by local server wired connectable to Central Station with OCPP 1.6J/5 protocol.<br> Operating temperature -30°C to +50°C.<br> Impact resistance IK10.<br> Enclosure with IP54 degree of protection.<br> Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-7, CEI EN 60304-7-722 standards and complete with CE marking.<br> Lower part of the socket side customizable.<br> Color BE-BRONZE

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
205.B52-CC 205.B52-CC EN_205.B52-CC.pdf 32 Kbytes 205.B52-CC 205.B52-CC EN_205.B52-CC.pdf
Download general catalog Download general catalog
