> SCAME>Connector for electric vehicles - SCAME>LIBERA Series >204.WB11RS-T2 SCAME WALL BOX 1 SOC. TYPE 2 3,5kW RFID+POWER
Previous Product Next Product

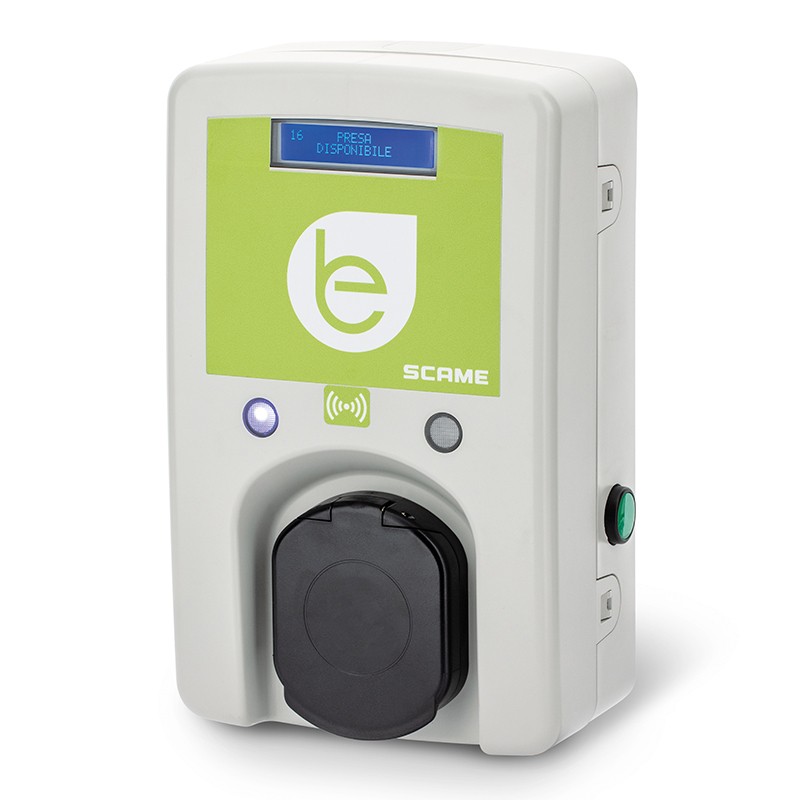

204.WB11RS-T2 SCAME WALL BOX 1 SOC. TYPE 2 3,5kW RFID+POWER View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.WB11RS-T2 SCAME WALL BOX 1 SOC. TYPE 2 3,5kW RFID+POWER

204.WB11RS-T2

SCAME

WALL BOX 1 SOC. TYPE 2 3,5kW RFID+POWER

WALL BOX 1 SOCKET TYPE 2 3.7kW RFID+POWER

Type 2 1P+N+E 16A 230V~ 3,7kW 16A 230V 1P+N+E IP54 IK08

More details


Industrial socket/plug applications > Charging device E-Mobility

Connector for electric vehicles - SCAME > LIBERA Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
WB Series
Synthetical description
WALL BOX 1 SOCKET TYPE 2
Material
ENGINEERING PLASTIC
Rated current
16A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
215x350x120mm

Version
LITE
EV standard
Type 2 1P+N+E 16A 230V~ 3,7kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
protection against direct contact Safety Child Shutters
working in mode stand-alone free or personal
identification of connected cord-set size
protection against overcurrents and electric shock
managing of latching system
POWER MANAGEMENT function (automatic modulation of charge current depending contractual power and power used by house).
EV equipment
1 terminal strip 1x6mm²
1 fuse holder 1P+N gG 4A
1 power supply 24Vdc 36W
1 DC Leakage detector
1 control card
1 stop charge push-button (mode free)
1 lcd display 2x20 rows backlight
1 reader RFID 13,56MHz
1 digital energy meter 1P+N 40A
1 couple of service led
1 modular contactor 2P 25A 24Vdc
1 circuit breaker 1P+N D20 30mA ist. A
1 digital energy meter 1P+N 63/80/100A (external)
EV excluded
emergency line 24Vdc (optional)

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
Download general catalog Download general catalog
