> SCAME>Connector for electric vehicles - SCAME>LIBERA Series >204.WB11P-3C32 SCAME WALL BOX 1 SOCKET 3C 7kW
Previous Product Next Product

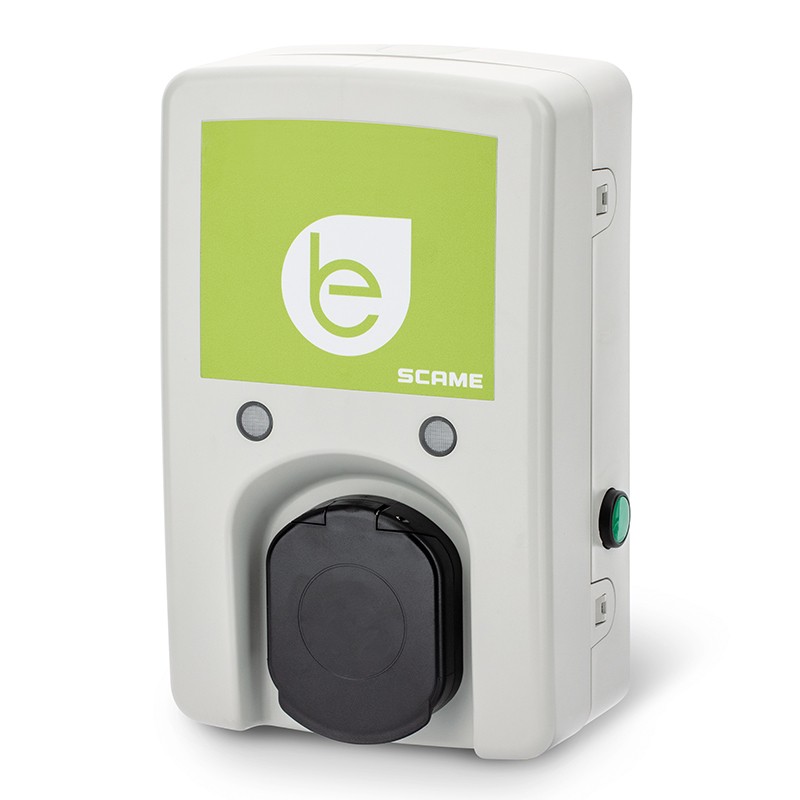

204.WB11P-3C32 SCAME WALL BOX 1 SOCKET 3C 7kW View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.WB11P-3C32 SCAME WALL BOX 1 SOCKET 3C 7kW

204.WB11P-3C32

SCAME

WALL BOX 1 SOCKET 3C 7kW

Type 3C 1P+N+E 32A 230V~ 7,4kW 32A 230V 1P+N+E IP54 IK08

More details


Industrial socket/plug applications > Charging device E-Mobility

Connector for electric vehicles - SCAME > LIBERA Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
WB Series
Synthetical description
WALL BOX 1 SOCKET 3C
Material
ENGINEERING PLASTIC
Rated current
32A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
215x350x120mm

Version
SOLO
EV standard
Type 3C 1P+N+E 32A 230V~ 7,4kW
EV specifications
Charging station for electric vehicles with wall installation (or on a pole) made of grey technopolymer resistant to impact and UV rays, IP54 degree of protection, size 215 x 350 x 123 mm.Container with status LED.<br>Station equipped with a type 3C socket with a protective shutter compliant with the CEI EN 62196-2 standard and suitable for charging in mode 3 in compliance with the CEI EN 61851-1 standard (IPXXD degree of protection is guaranteed without further disconnecting devices).<br>Maximum deliverable current 32 A single phase (7 kW) with identification of the size of the connected cable.<br>Station complete with both automatic and differential protection devices.<br>Operation in stand-alone FREE mode and STOP button to end the charge.<br>Operating temperature -25°C to +40°C, IK07 impact resistance.<br>Possibility of accessorising the station with pole support and galvanised steel plate.<br>Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-7, CEI EN 60304-7-722 standards and complete with CE marking.<br>

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.WB11P-3C32 204.WB11P-3C32 EN_204.WB11P-3C32.pdf 46 Kbytes 204.WB11P-3C32 204.WB11P-3C32 EN_204.WB11P-3C32.pdf
Download general catalog Download general catalog
