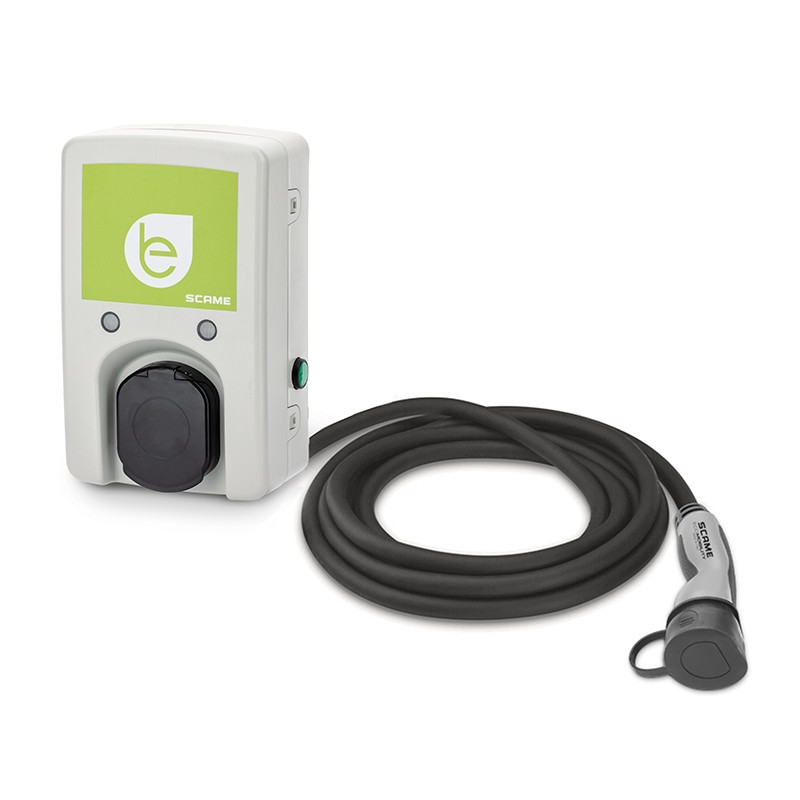

204.WB11E-T21 SCAME WALL BOX CABLE+SOCKET T2 IP54 16A 230V View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.WB11E-T21 SCAME WALL BOX CABLE+SOCKET T2 IP54 16A 230V

204.WB11E-T21

SCAME

WALL BOX CABLE+SOCKET T2 IP54 16A 230V

Type 2 1P+N+E 16A 230V~ 3,7kW 16A 230V 1P+N+E IP54 IK08 Type 2 4m

More details


Industrial socket/plug applications > Charging device E-Mobility

Connector for electric vehicles - SCAME > LIBERA Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
WB Series
Synthetical description
WALL BOX CABLE+SOCKET T2
Material
ENGINEERING PLASTIC
Cable length
4m
Cable section
3G2,5+1x0,5mm²
Rated current
16A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
215x350x120mm

Version
SOLO
EV standard
Type 2 1P+N+E 16A 230V~ 3,7kW
With integrated cable
Type 2
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
power contactor aperture monitoring
working in mode stand-alone free
current consuption metering
EV equipment
1 terminal strip 3x6mm²
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 DC Leakage detector
1 control card
1 stop charge push-button (mode free)
1 current transformer
1 couple of service led
1 modular contactor 2P 25A 24Vdc
1 cable wrapping support
1 cable 3G2,5+1x0,5mm² 4m
EV excluded
upstream protections (by the installer):
1 circuit breaker 1P+N D20 30mA ist. A
1 shunt trip release 24Vdc
emergency line 24Vdc (optional)
EV specifications
Charging station for electric vehicles with wall installation (or on a pole) made of grey technopolymer resistant to impact and UV rays, IP54 degree of protection, size 215 x 350 x 123 mm.Container with status LED.<br>Station equipped with a type 2 mobile socket (cable + mobile connector corresponding to a case C connection) in compliance with CEI EN 62196-2 and suitable for charging in mode 3 in compliance with CEI EN 61851-1.<br>The socket unit is mounted onto the vehicle to avoid tampering and disconnections while charging.<br>The IPXXD degree of protection required by the standard is provided through a control system to verify the correct opening of the power contactor.<br>Maximum deliverable current 16 A single-phase (3.5 kW).<br> For correct installation and commissioning an external upstream protection is necessary, using a 2P D20 30 mA circuit breaker ist.<br> A, together with a 24 Vdc trip coil for its activation.<br>Operation in stand-alone FREE mode and STOP button to end the charge.<br>Operating temperature -25°C to +40°C, IK07 impact resistance.<br>Possibility of accessorising the station with pole support and galvanised steel plate.<br>Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-7, CEI EN 60304-7-722 standards and complete with CE marking.<br>
