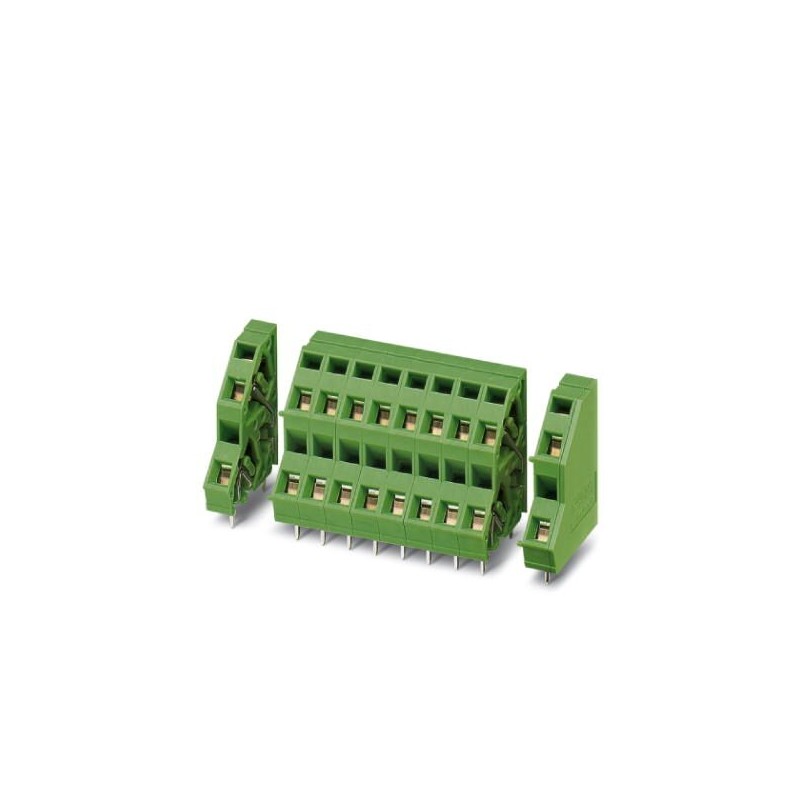

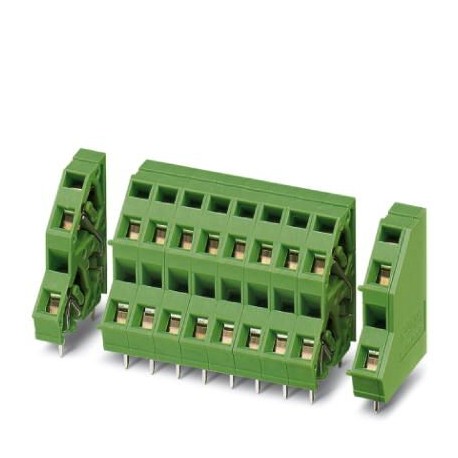

ZFKKDSA 1,5C-5,0- 7 1054520 PHOENIX CONTACT PCB terminal block, nominal current: 16 A, rated voltage (III/2)..
ZFKKDSA 1,5C-5,0- 7
1054520
PHOENIX_CONTACT
50
PCB terminal block, nominal current: 16 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², pitch: 5 mm, number of positions: 7, connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.7 mm
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Dimensions
| Length [ l ] | 21 mm |
|---|---|
| Pitch | 5 mm |
| Dimension a | 30 mm |
| Width [ w ] | 36 mm |
| Height | 26 mm |
| Height [ h ] | 29.7 mm |
| Solder pin [P] | 3.7 mm |
| Hole diameter | 1.1 mm |
General
| Range of articles | ZFKKDS(A) 1,5C |
|---|---|
| Nominal cross section | 1.5 mm² |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 7 |
Classifications
eCl@ss
| eCl@ss 5.1 | 27261100 |
|---|---|
| eCl@ss 6.0 | 27261100 |
| eCl@ss 7.0 | 27440401 |
| eCl@ss 8.0 | 27440401 |
| eCl@ss 9.0 | 27440401 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
