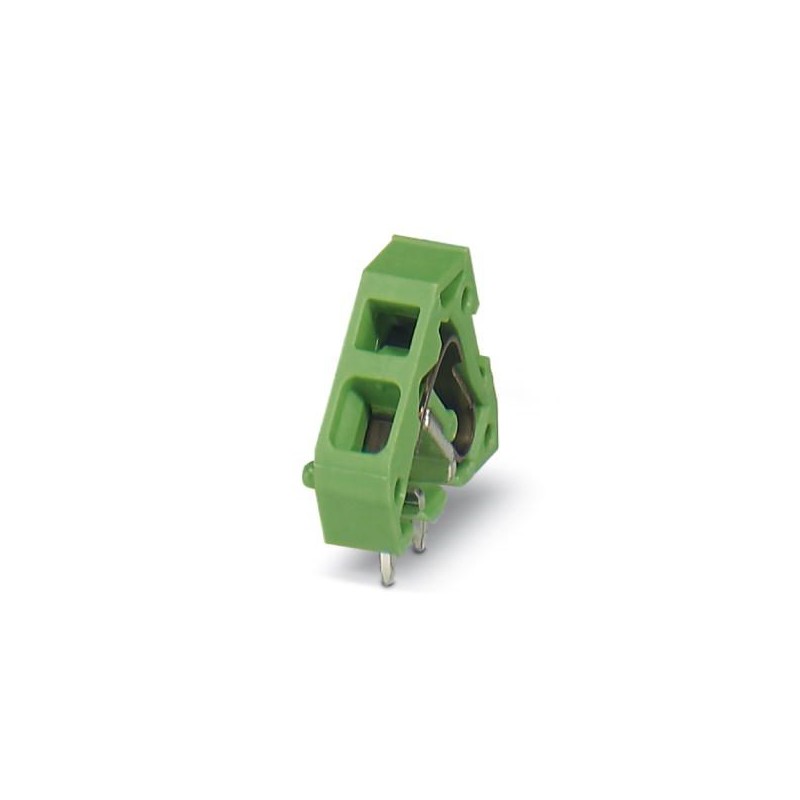

ZFKDSA 2,5-5,08-8 7RZ2,54 1832713 PHOENIX CONTACT PCB terminal block
ZFKDSA 2,5-5,08-8 7RZ2,54
1832713
PHOENIX_CONTACT
50
PCB terminal block
Terminal block for printed circuit board, rated current: 24 A, dimensioning voltage (III/2): 400 V, nominal cross-section: 2.5 mm², Number of potentials: 8, Number of rows: 1, Number of poles per row: 8, article family: ZFKDS(A) 2.5, pitch:5.08 mm, connection type: Spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, packaging type: boxed packaging. The item can be aligned with different numbers of poles!
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲General
| Range of articles | ZFKDS(A) 2,5 |
|---|---|
| Insulating material group | I |
| Rated voltage (III/2) | 400 V |
| Nominal current IN | 24 A |
| Nominal cross section | 2.5 mm² |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 8 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
