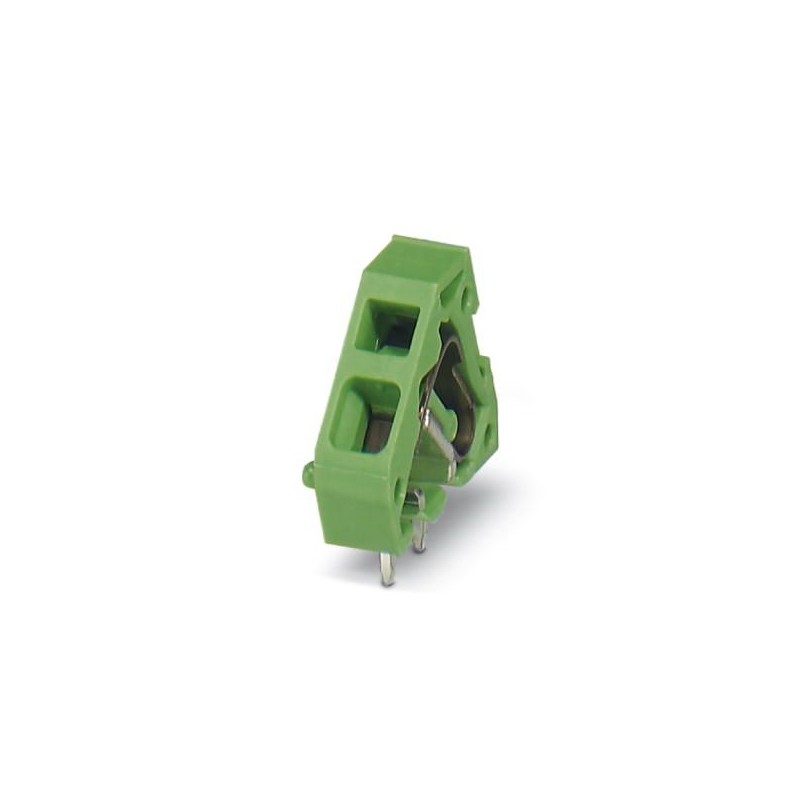

ZFKDSA 2,5-5,08- 4 BD:NZ 1995127 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

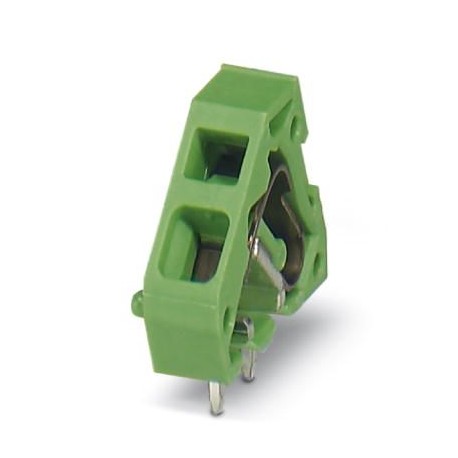

ZFKDSA 2,5-5,08- 4 BD:NZ 1995127 PHOENIX CONTACT PCB terminal block

ZFKDSA 2,5-5,08- 4 BD:NZ

1995127

PHOENIX_CONTACT

50

Available Ship on today

PCB terminal block

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Quantity Price
50+$1.76
200+$1.54
350+$1.45
500+$1.41
650+$1.39
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey 1995127
Packing unit 50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4017918991548
Weight per Piece (excluding packing)6.310 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]16.85 mm
Pitch5.08 mm
Dimension a15.24 mm
Height15 mm
Solder pin [P]3.5 mm
Hole diameter1.3 mm

General

Range of articlesZFKDS(A) 2,5
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN24 A
Nominal cross section2.5 mm²
Maximum load current24 A
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Internal cylindrical gageA3
Stripping length7 mm
Number of positions4

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.12

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
