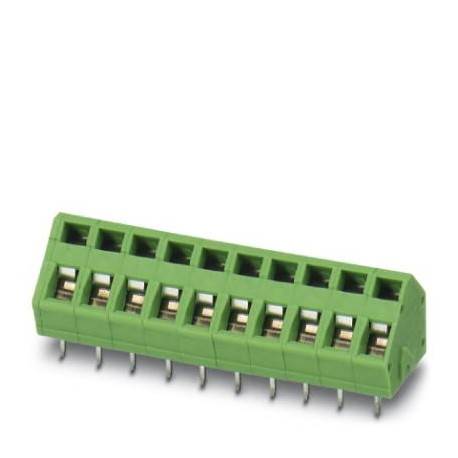

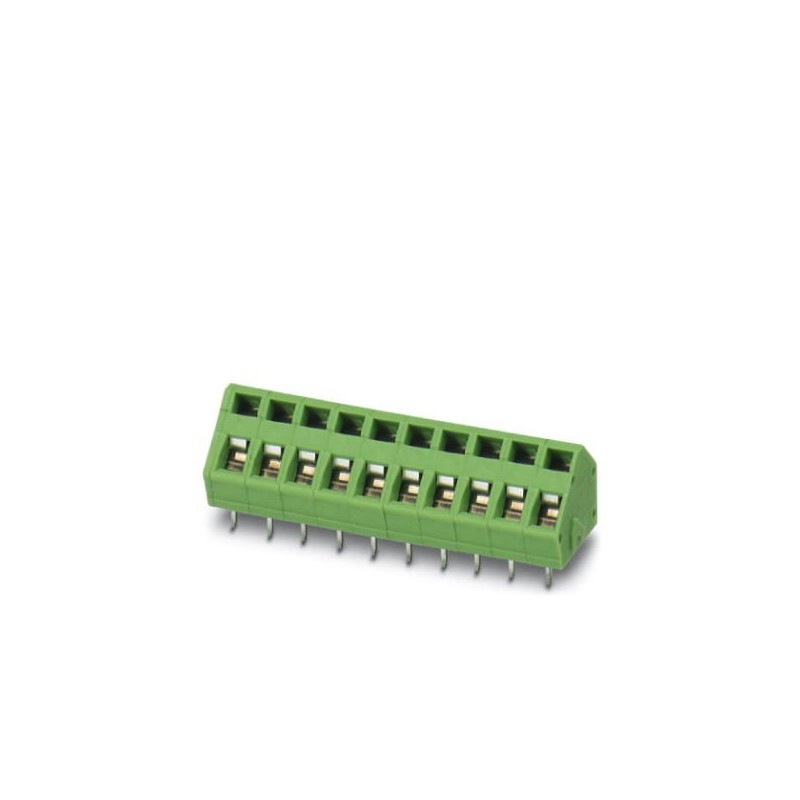

ZFKDSA 1,5C-5,0- 2 1933998 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

ZFKDSA 1,5C-5,0- 2 1933998 PHOENIX CONTACT PCB terminal block

ZFKDSA 1,5C-5,0- 2

1933998

PHOENIX_CONTACT

50

Available Ship on today

New orders for this item will be processed from April 13

PCB terminal block

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey 1933998
Packing unit 50 pc
Minimum order quantity50 pc
GTIN4017918896201
Weight per Piece (excluding packing)2.200 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]14.1 mm
Pitch5 mm
Dimension a5 mm
Width [ w ]6 mm
Height12.75 mm
Height [ h ]16.25 mm
Solder pin [P]3.5 mm
Pin spacing5.08 mm
Hole diameter1.1 mm

General

Range of articlesZFKDS(A) 1,5C
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN16 A
Nominal cross section1.5 mm²
Maximum load current16 A
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Internal cylindrical gageA1
Stripping length7 mm
Number of positions2

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
