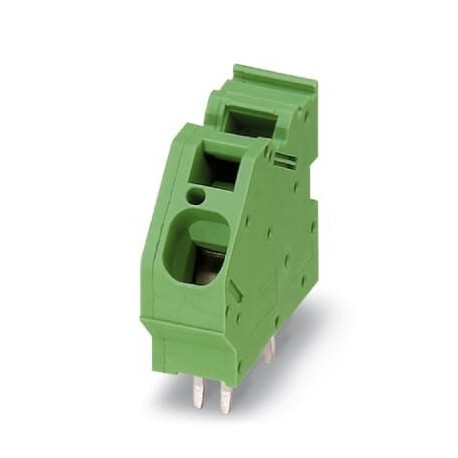

ZFKDSA 10-10,00- 3 MIX GY-GNYE 1813787 PHOENIX CONTACT PCB terminal block, nominal current: 76 A, nom. volta..
ZFKDSA 10-10,00- 3 MIX GY-GNYE
1813787
PHOENIX_CONTACT
50
PCB terminal block, nominal current: 76 A, nom. voltage: 400 V, pitch: 10 mm, number of positions: 3, connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: multi-color
Printed circuit board terminal block, rated current: 76 A, rated voltage (III/2): 400 V, rated cross-section: 10 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, article family: ZFKDS(A) 10, pitch: 10 mm, connection type: Spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: multicolor, Pin arrangement: Linear pin arrangement, Pin length [P]: 6.5 mm, number of welding pins per potential: 4, packaging type: boxed
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲PCB terminal block, nominal current: 76 A, nom. voltage: 400 V, pitch: 10 mm, number of positions: 3, connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: multi-color
Key Commercial Data
| Orderkey | 1813787 |
|---|---|
| Packing unit | 1 |
| GTIN | 4046356747929 |
| Custom tariff number | 85472000 |
Dimensions
| Length [ l ] | 33.4 mm |
|---|---|
| Pitch | 10 mm |
| Dimension a | 20 mm |
| Height | 27 mm |
| Solder pin [P] | 6.5 mm |
| Pin spacing | 15 mm |
| Hole diameter | 2.2 mm |
General
| Range of articles | ZFKDS(A) 10 |
|---|---|
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 320 V |
| Rated voltage (III/2) | 400 V |
| Rated voltage (II/2) | 800 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 76 A |
| Nominal cross section | 10 mm² |
| Solder pin surface | |
| Stripping length | 12 mm |
| Number of positions | 3 |
Connection data
| Conductor cross section AWG min. | 24 |
|---|---|
| Conductor cross section AWG max. | 6 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 4.0 | 27141111 |
|---|---|
| eCl@ss 4.1 | 27141109 |
| eCl@ss 5.0 | 27141190 |
| eCl@ss 5.1 | 27261100 |
| eCl@ss 6.0 | 27261100 |
| eCl@ss 7.0 | 27440401 |
| eCl@ss 8.0 | 27440401 |
| eCl@ss 9.0 | 27440401 |
ETIM
| ETIM 3.0 | EC001121 |
|---|---|
| ETIM 4.0 | EC002643 |
| ETIM 5.0 | EC002643 |
| ETIM 6.0 | EC002643 |
| ETIM 7.0 | EC002643 |
UNSPSC
| UNSPSC 6.01 | 30211801 |
|---|---|
| UNSPSC 7.0901 | 39121432 |
| UNSPSC 11 | 39121432 |
| UNSPSC 12.01 | 39121432 |
| UNSPSC 13.2 | 39121432 |
