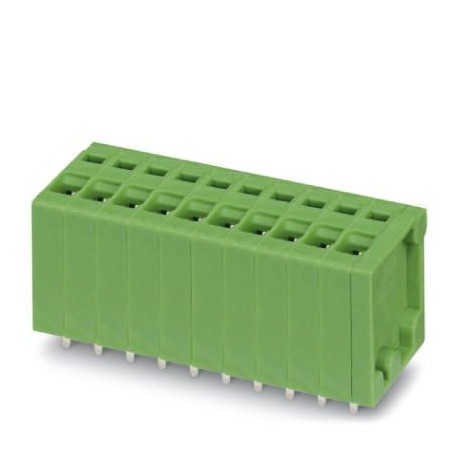

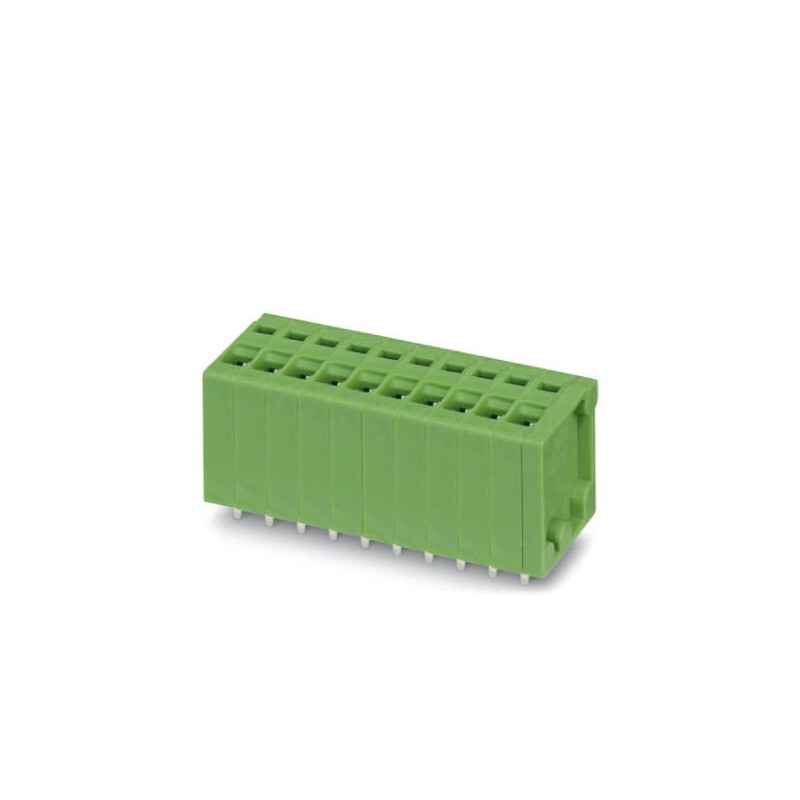

ZFKDSA 1-V-3,81- 3 1751723 PHOENIX CONTACT Leiterplattenklemme
ZFKDSA 1-V-3,81- 3
1751723
PHOENIX_CONTACT
50
Leiterplattenklemme
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1751723 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356318266 |
| Weight per Piece (excluding packing) | 3.470 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
Item properties
| Brief article description | PCB terminal block |
|---|---|
| Range of articles | ZFKDS(A) 1-V |
| Pitch | 3.81 mm |
| Number of positions | 3 |
| Connection method | Spring-cage connection |
| Mounting type | Wave soldering |
| Pin layout | Linear double pinning |
| Number of levels | 1 |
Electrical parameters
| Rated current | 12 A |
|---|---|
| Rated insulation voltage (III/2) | 200 V |
| Rated surge voltage (III/2) | 2.5 kV |
Connection capacity
| Conductor cross section solid | 0.14 mm² ... 1.5 mm² |
|---|---|
| Conductor cross section flexible | 0.14 mm² ... 1 mm² |
| Conductor cross section AWG / kcmil | 26 ... 16 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 0.5 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 0.5 mm² |
| Stripping length | 7.5 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | hot-dip tin-plated |
| Metal surface terminal point (top layer) | Tin (10 - 16 µm Sn) |
| Metal surface soldering area (top layer) | Tin (10 - 16 µm Sn) |
Material data - housing
| Insulating material | PA |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions for the product
| Dimensional drawing | |
|---|---|
| Length [ l ] | 15.9 mm |
| Pitch | 3.81 mm |
| Height (without solder pin) | 16 mm |
| Solder pin [P] | 3.5 mm |
| Pin dimensions | 0.8 x 0.8 mm |
| Dimension a | 7.62 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
Electrical tests
| Rated current | 12 A |
|---|---|
| Rated insulation voltage (III/2) | 200 V |
| Rated surge voltage (III/2) | 2.5 kV |
Air clearances and creepage distances
| Insulating material group | I |
|---|---|
| Voltage | 200 V |
| Rated insulation voltage (III/3) | 200 V |
| Rated insulation voltage (III/2) | 200 V |
| Rated insulation voltage (II/2) | 400 V |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141111eCl@ss 4.127141109eCl@ss 5.027141190eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
