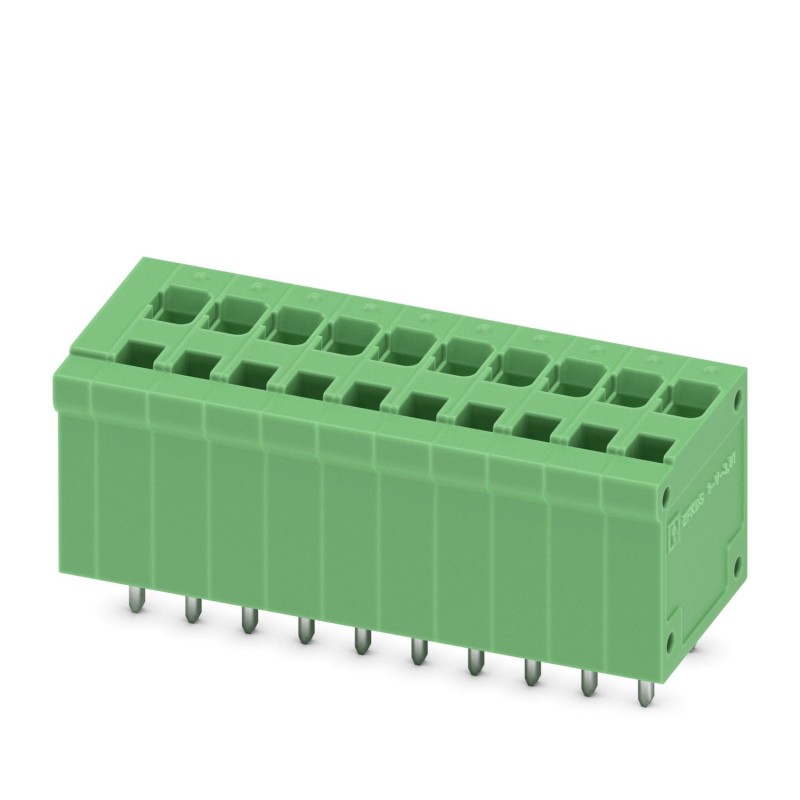

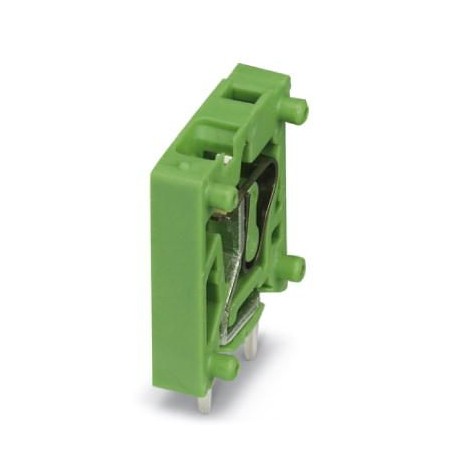

ZFKDS 1-V-3,81 BK 1766022 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

ZFKDS 1-V-3,81 BK 1766022 PHOENIX CONTACT PCB terminal block

ZFKDS 1-V-3,81 BK

1766022

PHOENIX_CONTACT

50

Available Ship on today

New orders for this item will be processed from April 13

PCB terminal block

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey1766022
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4046356431842
Weight per Piece (excluding packing)1.230 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]15.9 mm
Pitch3.81 mm
Height16 mm
Solder pin [P]3.5 mm
Hole diameter1.2 mm

General

Range of articlesZFKDS(A) 1-V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)200 V
Rated voltage (III/2)200 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Nominal cross section1 mm²
Solder pin surface
Stripping length7.5 mm
Number of positions1

Connection data

Conductor cross section AWG min.26
Conductor cross section AWG max.16

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
