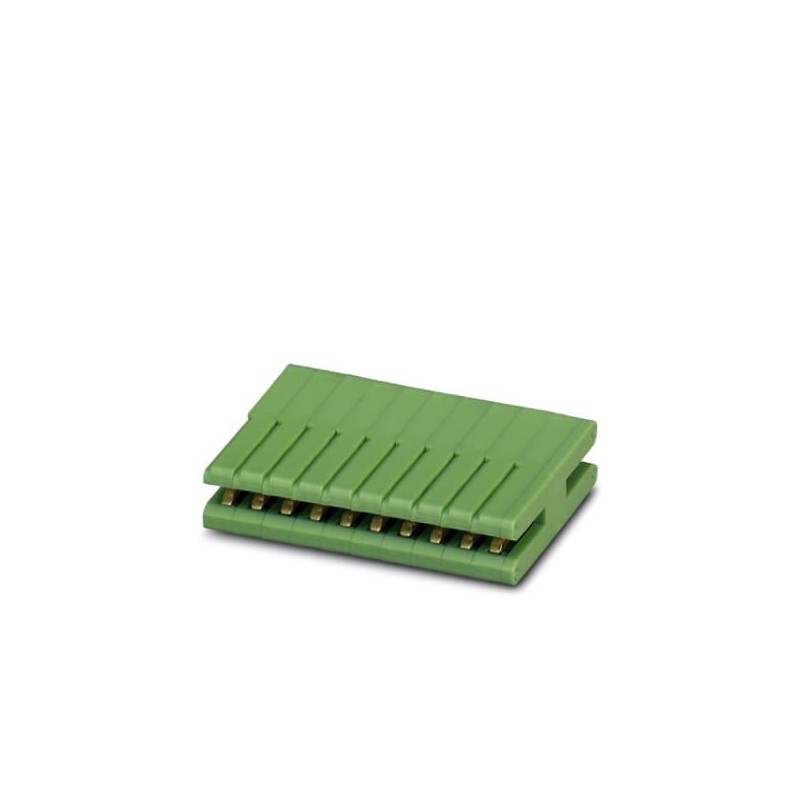

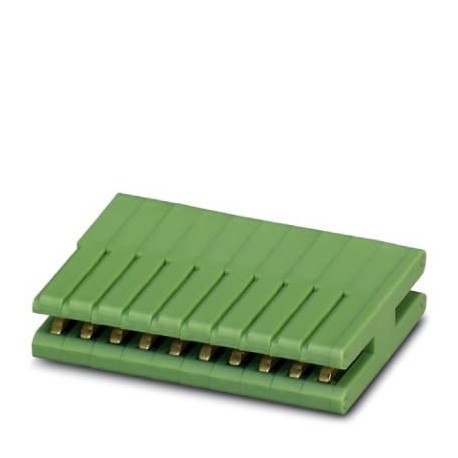

ZEC 1,0/10-LPV-3,5 GY35AUC2CI1 1751707 PHOENIX CONTACT Printed-circuit board connector
ZEC 1,0/10-LPV-3,5 GY35AUC2CI1
1751707
PHOENIX_CONTACT
50
Printed-circuit board connector
Connector for printed circuit board, nominal section: 1 mm², color: luminous gray, nominal current: 8 A, nominal voltage (III/2): 200 V, contact surface: Gold, contact type: Female, number of potentials: 10, number of rows: 1, number of poles: 10, number of connections: 10, family of articles: ZEC 1.0/.. -LPV, pitch: 3.5 mm, mounting: Direct plug-in connection technology, driver/printed circuit board connection direction: 0 °, number of solder pins per potential: 2, plug-in system: ZEC, lock: without, fixing type: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1751707 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| GTIN | 4046356317573 |
| Weight per Piece (excluding packing) | 6.390 g |
| Custom tariff number | 85366930 |
| Country of origin | GR (Greece) |
General
| Range of articles | ZEC 1,0/..-LPV |
|---|---|
| Rated voltage (III/3) | 160 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 8 A |
| Color | light gray |
| Number of positions | 10 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440402eCl@ss 8.027440402eCl@ss 9.027440402
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 10 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 3.5 mm |
| Modular spacing connections (EF006827) | 3.5 mm |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 200 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Gold |
| Type of electric connection (EF003961) | Other |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Grey |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
