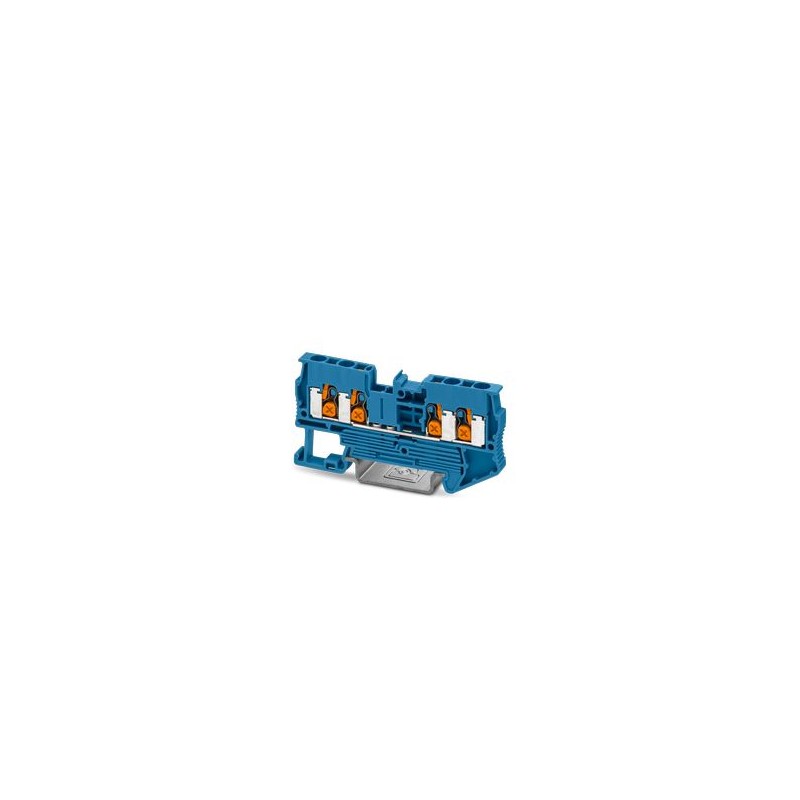

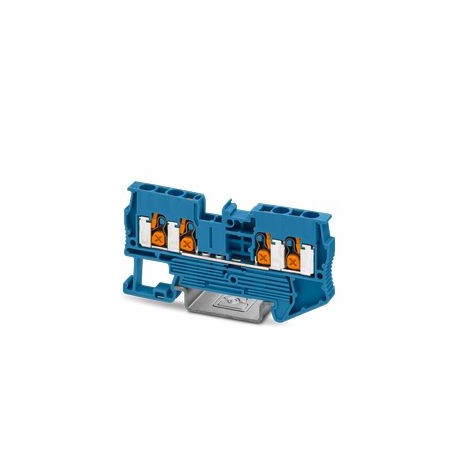

XT 2,5-QUATTRO BU
1343130
PHOENIX_CONTACT
50
Feed-through terminal, nominal voltage: 800 V, nominal current: 24 A, number of connections: 4, number of poles: 1, connection type: Push-X connection, Dimensioning section: 2.5 mm², cross-section: 0.5 mm² - 4 mm², installation type: NS 35/7.5, NS 35/15, colour: blue
Modular TBs
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
General | |
Observation | The maximum load current must not be exceeded by the total current of all connected conductors. |
Product Type | Multi-conductor terminal block |
Number of poles | 1 |
Field of Employment | Railway industry |
Machine building | |
Plant construction | |
Process Industry | |
Number of connections | 4 |
Number of rows | 1 |
Potential | 1 |
Insulation Properties | |
Surge Category | Iii |
Degree of pollution | 3 |
Dimensioning Transient Voltage | 8 kV |
Maximum Dissipated Power with Nominal Condition | 0.77 W |
Number of connections per floor | 4 |
Nominal Section | 2.5 mm² |
AWG Conductor Section | (Converted according to IEC) |
Peel Length | 10 mm ... 12 mm |
Standard-compliant connection | IEC 60947-7-1 |
Rigid conductor section | 0.5 mm² ... 4 mm² |
AWG Conductor Section | 20 ... 12 (Converted according to IEC) |
Flexible conductor section | 0.75 mm² ... 4 mm² |
Flexible Wire Section [AWG] | 18 ... 12 (Converted according to IEC) |
Flexible cable section (toe cap without plastic sleeve) | 0.5 mm² ... 2.5 mm² |
Flexible cable section (toe cap with plastic sleeve) | 0.5 mm² ... 2.5 mm² |
Nominal current | 24 A |
Maximum Charging Current | 28 A (with rigid 4 mm² cable cross-section) |
Nominal voltage | 800 V |
Nominal Section | 2.5 mm² |
Width | 5.2 mm |
Height | 72.2 mm |
Depth | 35.3 mm |
Depth at NS 35/7.5 | 36.8 mm |
Depth at NS 35/15 | 44.3 mm |
Colour | blue |
Flammability class according to UL 94 | V0 |
Insulating material group | I |
Insulating material | PA |
Static use of cold insulating material | -60 °C |
Relative Insulating Material Temperature Index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Flammability of NFPA 130 Surfaces (ASTM E 162) | approved |
NFPA 130 Specific Optical Flue Gas Density (ASTM E 662) | approved |
NFPA 130 Flue Gas Toxicity (SMP 800C) | approved |
Mechanical data | |
Open sidewall | Yes |
Needle Flame Test | |
Performance Time | 30 sec |
Broadband Oscillation/Noise | |
Test Specification | DIN EN 50155 (VDE 0115-200):2022-06 |
Spectrum | Category 2 durability test, on the bogie |
frequency | f1= 5 Hz to f2= 250 Hz |
ASD Level | 6.12 (m/s²)²/Hz |
Acceleration | 3.12g |
Test duration per axis | 5 h |
Test Directions | X, Y, and Z axes |
Crash | |
Test Specification | DIN EN 50155 (VDE 0115-200):2022-06 |
Shock Type | Semi-sinusoid |
Acceleration | 30g |
Duration of the crash | 18 ms |
Number of collisions per steering | 3 |
Test Directions | X, Y, and Z axes (pos. and neg.) |
Environmental conditions | |
Ambient Temperature (Storage/Transport) | -25 °C ... 60 °C (for a short time, no more than 24 hours, -60 °C to +70 °C) |
Ambient Temperature (Mounting) | -5 °C ... 70 °C |
Ambient Temperature (Drive) | -5 °C ... 70 °C |
Permissible air humidity (storage/transport) | 30 % ... 70 % |
Standard-compliant connection | IEC 60947-7-1 |
Type of mounting | NS 35/7.5 |
NS 35/15 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX TERMINAL BLOCKS EN.pdf | 69 Mbytes |
