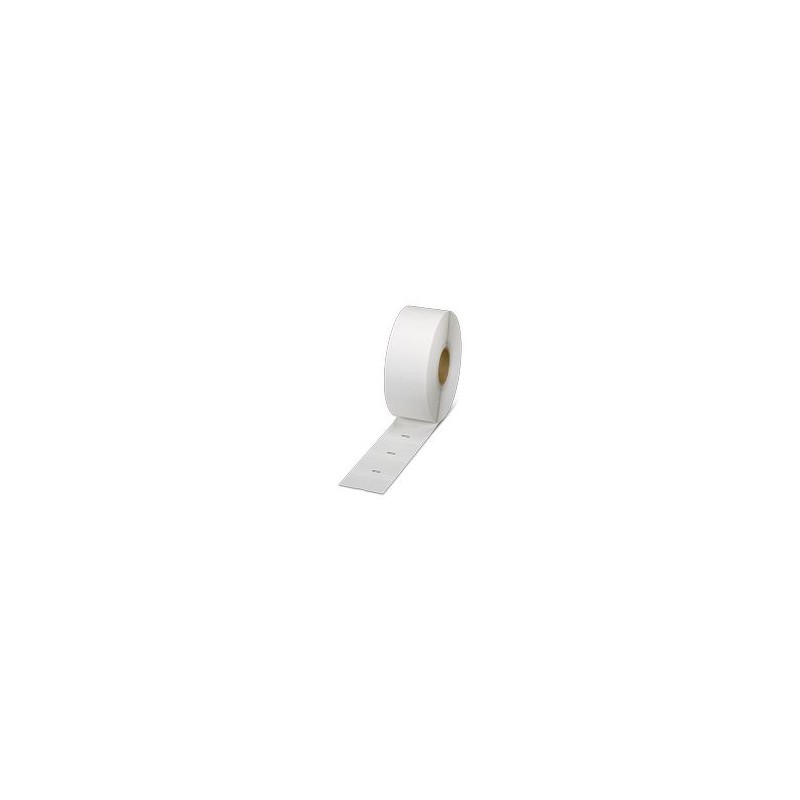

WML 8 (51X13)R 1488729 PHOENIX CONTACT Cable wrapping label, Roll, white, unlabeled, labelable with: THERMOM..
WML 8 (51X13)R
1488729
PHOENIX_CONTACT
Cable wrapping label, Roll, white, unlabeled, labelable with: THERMOMARK E.300 (D)/600 (D), THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting class: glued, cable diameter range: 4 ... 8.1 mm, cable diameter: ≤ 8.1 mm, usable area: 51 x 13 mm, Number of individual indexes: 1500
Cable Wrap Label, Roll, White, Unlabeled, Labelable with: THERMOMARKE.300 (D)/600 (D), THERMOMARK ROLL X1, THERMOMARK X1.2, THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLLMASTER 300/600, mounting class: glued, cable diameter range: 4 ... 8.1 mm, Number of individual indexes: 1500
Wire-wrap label, Roll, white, unlabeled, can be labeled with: THERMOMARK E.300 (D)/600 (D), THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting type: adhesive, cable diameter range: 4 ... 8.1 mm, cable diameter: ≤ 8.1 mm, lettering field size: 51 x 13 mm, Number of individual labels: 1500
Installation, isolation and connection material > Cable coding system
MS Material
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Conductor marking |
| Type | Label |
| Marking | |
| Number of individual labels | 1500 |
| Identification technology | Thermal transfer for rolls |
| Width | 50.8 mm |
| Length | 38.1 mm |
| Foil strength | 80 µm |
| Adhesive strength | 21 µm |
| Adhesive | Acrylic |
| Color | white |
| Material | PVC |
| Components | Silicone-free |
| External cable diameter | ≤ 8.1 mm |
| 4 mm ... 8.1 mm |
| Test for substances that would hinder coating with paint or varnish | |
| Result | Test passed |
| Test for substances that would hinder coating with paint or varnish | |
| Result | Test passed |
| Scratch test for the determining scratch resistance | |
| Specification | DIN EN ISO 1518-1:2019-10 (following) |
| Requirements | ≥ 5 N |
| Result | Test passed |
| Tesafilm test | |
| Specification | DIN EN ISO 2409:2013 (following) |
| Result | Test passed |
| UV resistance | |
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
| Temperature resistance | |
| Specification | ANSI/UL 969-2018:03 (following) |
| Test duration | 240 h |
| Rating 100 °C (121 °C) | Test passed |
| Specification | ISO 175:2010 (following) |
| Test duration | 168 h |
| IRM 901 | Test passed |
| IRM 902 | Test passed |
| Testing in a condensation changing climate in the presence of sulfur dioxide | |
| Specification | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Salt spray test | |
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Test duration | 96 h |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (assembly) | > 0 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % (Storage in a dry and dark place in the original packaging is recommended) |
| Shelf life | 2 years |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Mounting type | adhesive |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Roller shape |
| Type (EF001139) | Medium-walled |
| Toothing (EF009649) | None |
| Material (EF002169) | Other |
| Core diameter (EF005497) | 4 mm |
| Cable diameter (EF002356) | 4 mm |
| Width (EF000008) | 50.8 mm |
| Colour (EF000007) | White |
| Fluorescent (EF009518) | No |
| With label space (EF003456) | Yes |
| Mounting method (EF000003) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MARKING SYSTEMS PHOENIX EN.pdf | 47 Mbytes |
|
