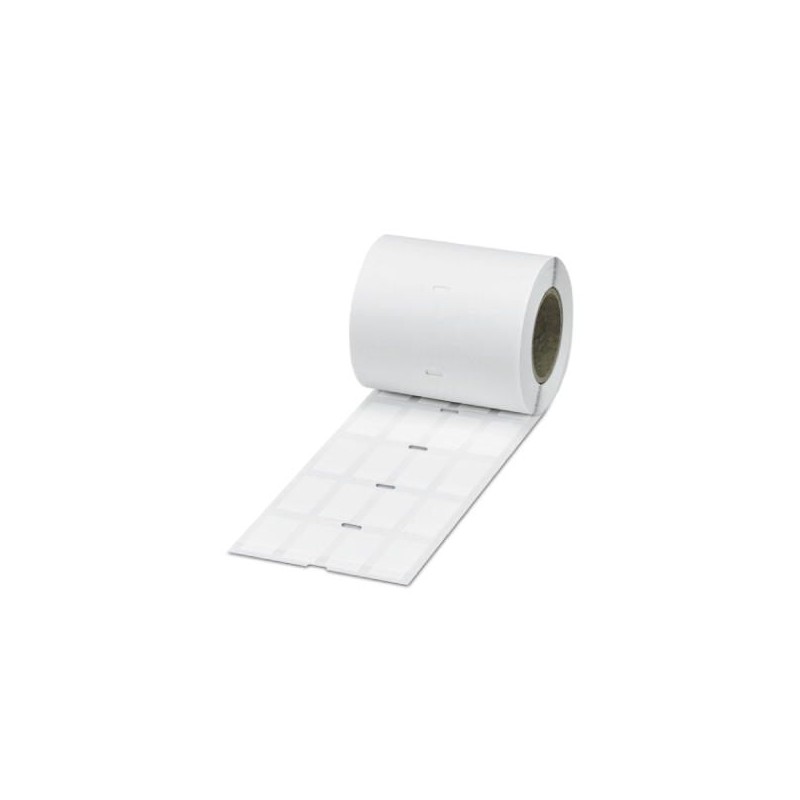

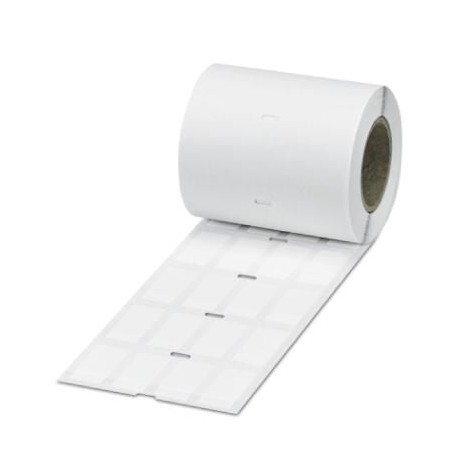

WML 7,5 (17X9)RL 1110065 PHOENIX CONTACT Cable marker label, Roll, white, unlabeled, can be labeled with: TH..
WML 7,5 (17X9)RL
1110065
PHOENIX_CONTACT
Cable marker label, Roll, white, unlabeled, can be labeled with: THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK ROLL X1, THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK S1.1, mounting type: adhesive, cable diameter: ≤ 7.5 mm, lettering field size: 17 x 9 mm, Number of individual labels: 5000
Cable wrapping label, Roll, white, unlabeled, labelable with: THERMOMARKE.300 (D)/600 (D), THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting class: glued, cable diameter range: 2.9 ... 7.6 mm, cable diameter: ≤ 7.6 mm, usable area: 17x9mm, Number of individual indexes: 5000
Installation, isolation and connection material > Cable coding system
MS Material
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1110065 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4063151024437 |
| Weight per Piece (excluding packing) | 820.000 g |
| Custom tariff number | 39199080 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -50 °C ... 110 °C |
|---|---|
| Recommended storage conditions | 23 °C / 50% relative humidity. Storage in poly bags is recommended prior to processing. |
General
| Color | white |
|---|---|
| Base element material | Vinyl film |
| Type | Label |
| Components | Silicone-free |
| Material | PVC |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 5000 |
| Number of individual labels per row | 4 |
| Adhesive | Acrylic |
| Printability | Thermal transfer |
| Device | 1085260 THERMOMARK ROLL 2.0 |
| 0804501 THERMOMARK ROLLMASTER 300 | |
| 0804663 THERMOMARK ROLLMASTER 600 | |
| Ink ribbon | 5145384 THERMOMARK-RIBBON 110 |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Result of weather resistance test | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result of wipe resistance test | Test passed |
| Foil strength | 50 µm |
| Adhesive strength | 25 µm |
| Marking mounting type | adhesive |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MARKING SYSTEMS PHOENIX EN.pdf | 47 Mbytes |
|
