WIL-SC-LMS-SET04 2404759 PHOENIX CONTACT Evaluation unit for live monitoring system for the permanent record..
WIL-SC-LMS-SET04
2404759
PHOENIX_CONTACT

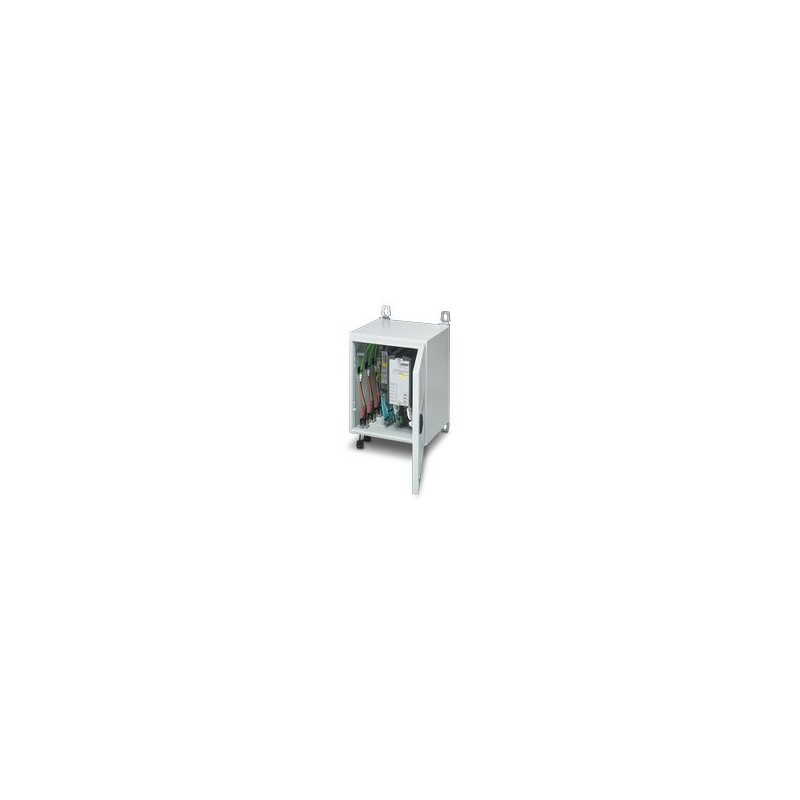

Evaluation unit for live monitoring system for the permanent recording and evaluation of lightning discharges in wind turbines. Control cabinet solution ready for installation.
Evaluation unit for the live monitoring system for the continuous detection and evaluation of lightning strikes in wind turbine generators. Ready-to-install control cabinet solution.
Industry Solutions (IS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Switchgear and controlgear assembly |
| Installation location | Indoor use, no exposure to direct sunlight |
| Insulation characteristics | |
| Protection class | I |
| Control voltage | 24 V DC |
| Nominal current control voltage | 0.3 A |
| Nominal voltage UN | 24 V DC |
| Nominal power | 8 W |
| External dimensions | |
| Width / Height / Depth | 250 mm / 300 mm / 210 mm |
| RAL color | 7035 light grey |
| Material Housing | Sheet steel (Wall housing, textured powder coating) |
| Cable entry | |
| Connection method | Connector Connector |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 60 °C |
| Maximum altitude | max. 4000 m |
| Permissible humidity (operation) | 30 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) |
| Shock (operation) | EN 60068-2-27 |
| Shock (storage/transport) | EN 60068-2-27 |
| Vibration (operation) | 2g (EN 60068-2-6, 5 Hz ... 500 Hz, 5 test runs per axis) |
| Vibration (storage/transport) | 2g (EN 60068-2-6, 5 Hz ... 500 Hz, 5 test runs per axis) |
