WIL-ID-S-868MHZ-DETECT-6 1044652 PHOENIX CONTACT Sensor-protected evaluation unit, components of the ID-S ic..
WIL-ID-S-868MHZ-DETECT-6
1044652
PHOENIX_CONTACT

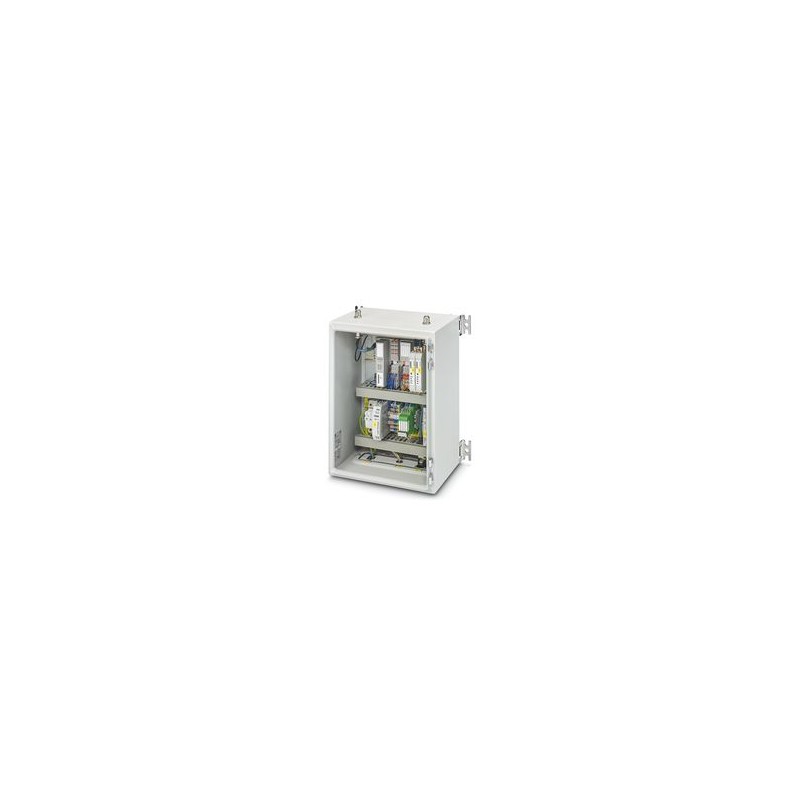

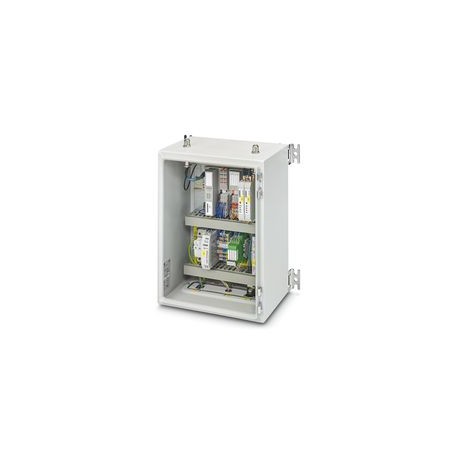

Sensor-protected evaluation unit, components of the ID-S ice detection system, with 6 ID-S-S 868 sensors, communication with 868 MHz frequency band, as well as Modbus TCP and PROFINET
Industry Solutions (IS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Combination of Switching Devices |
| Insulation Properties | |
| Kind of protection | I |
| Control voltage | 24 V DC |
| Nominal current: control voltage | 1.25 A |
| Nominal voltage UN | 230 V AC (50 Hz) |
| Nominal Current IN | 0.13 A |
| Nominal power | 30 W |
| Fuse | |
| Recommended pre-fuse: AC 230 V | 6 A (Characteristic curve B, 1 pole) |
| Exterior Dimensions | |
| Width / Height / Depth | 300 mm / 400 mm / 210 mm |
| 354 mm / 467 mm / 210 mm (With wall mounting brackets and connections) | |
| Colour RAL | 7035 |
| Material: Shell | Sheet steel |
| Environmental conditions | |
| Protection Index | IP54 |
| Ambient Temperature (Service) | -25 °C ... 50 °C |
| Permissible air humidity (service) | ≤ 95% (at 25°C, non-condensing) |
| Air Pressure (Service) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
