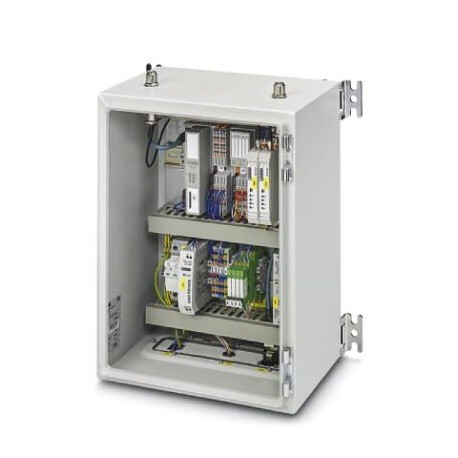

WIL-BI-IDS-868-00 1097085 PHOENIX CONTACT Sensor-supported evaluation unit, component of the ID-S ice detect..
WIL-BI-IDS-868-00
1097085
PHOENIX_CONTACT

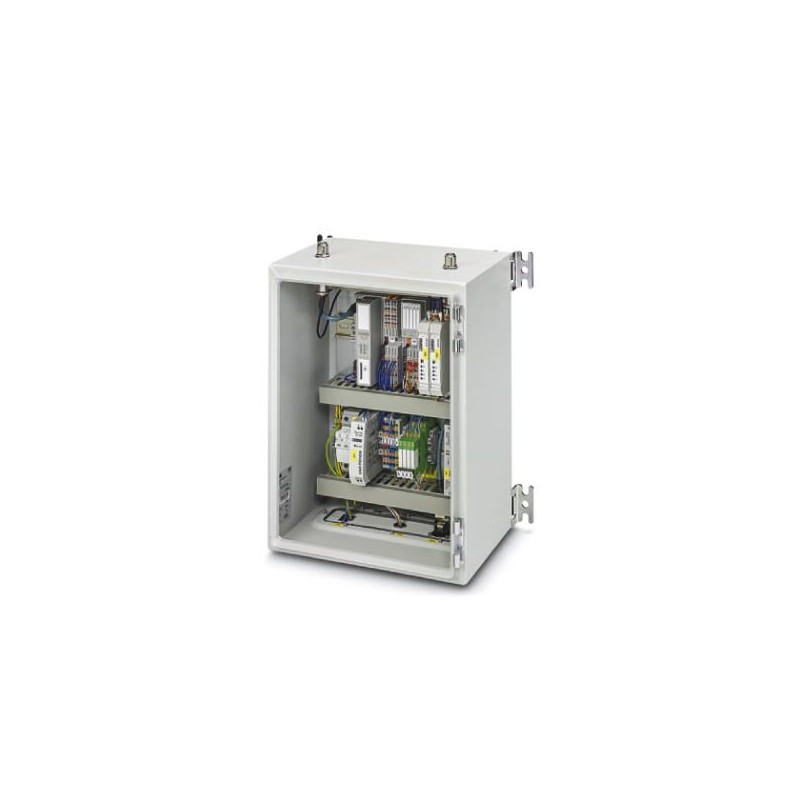

Sensor-supported evaluation unit, component of the ID-S ice detection system, communication via 868 MHz frequency band as well as Modbus/TCP and PROFINET
Sensor data evaluation unit for ice detection, including application software. Communication via Modbus/TCP and PROFINET. Sensor communication via 868 MHz frequency band. Please refer to the scope of delivery in the "Technical data" tab.
Industry Solutions (IS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Ambient conditions
| Ambient temperature (operation) | -25 °C ... 50 °C |
|---|---|
| Air pressure (operation) | 70 hPa ... 106 kPa (up to 3000 m above mean sea level) |
| Permissible humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Dimensions
| Outer dimensions: width, height, depth | 300 mm x 400 mm x 210 mm |
|---|---|
| 354 mm x 467 mm x 210 mm (With wall mounting brackets and connections) |
Technical characteristics
| Nominal power | 30 W |
|---|---|
| Nominal current IN | 0.13 A |
| Nominal voltage UN | 230 V AC (50 Hz) |
| Control voltage | 24 V DC |
| Nominal current control voltage | 1.25 A |
| Recommended backup fuse for 230 V AC | 6 A (Characteristic B, 1-pos.) |
| Recommended backup fuse | 6 A (Characteristic B, 1-pos.) |
| Frequency range | 863 MHz ... 870 MHz (typical: 868 MHz) |
Classifications
