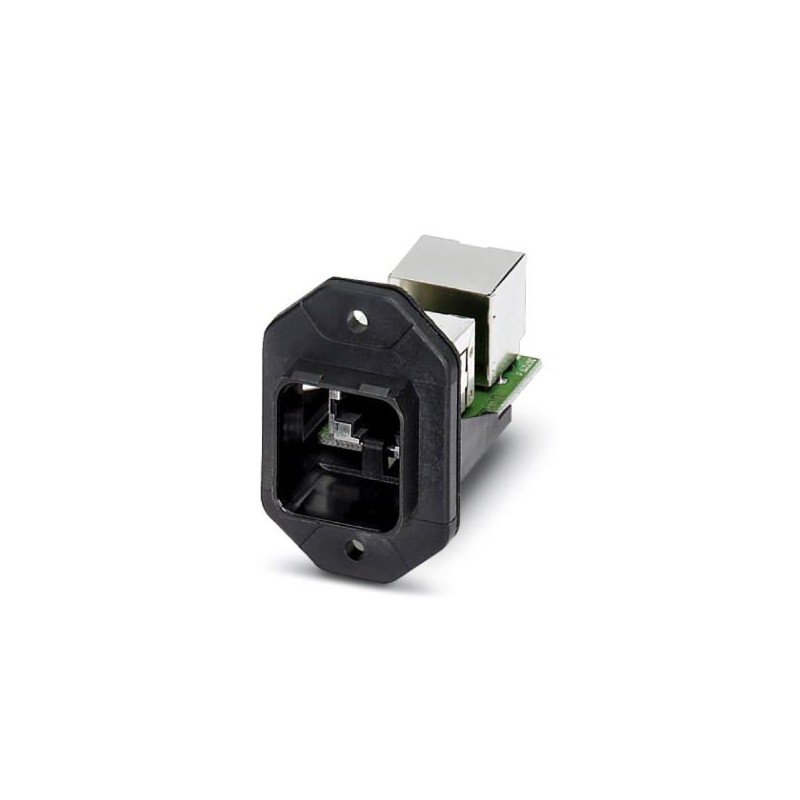

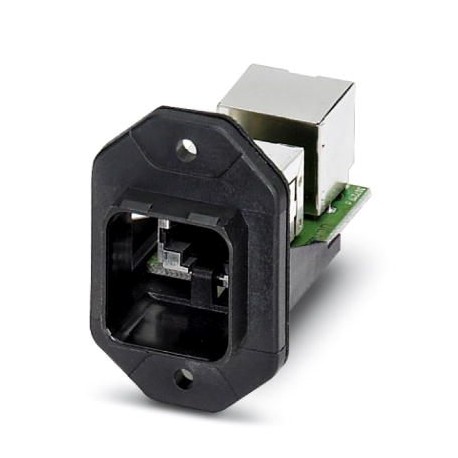

VS-PPC-F1-RJ45-POBK-1RF-BU/BU 1404760 PHOENIX CONTACT Panel mounting frames
VS-PPC-F1-RJ45-POBK-1RF-BU/BU
1404760
PHOENIX_CONTACT
Panel mounting frames
Recessed frame RJ45, IP54, for push-pull lock, for rectangular mounting opening, with gasket, without fixing screws, plastic, with RJ45 contact insert, 8 poles, shielded, female connector to female connector, CAT5e, Freenet system
Connectors > Fixing element for industrial connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1404760 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356320849 |
| Weight per Piece (excluding packing) | 19.800 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 8 |
|---|---|
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 500 |
| Color | black |
| Insulation resistance | ≥ 500 MΩ |
| Degree of protection | IP67 |
| Type | RJ45, IP65/67, version 14 |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -10 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PA-GF |
| Contact carrier material | Thermoplastic |
| Contact material | Copper alloy |
| Contact surface material | Gold over nickel |
| Sealing material | NBR |
| Seal material | NBR |
| Height | 42 mm |
Electrical characteristics
| Number of positions | 8 |
|---|---|
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| GRP transmission properties | CAT5 (IEC 11801:2002) |
| Rated current | 1 A |
| Overvoltage category | I |
| Degree of pollution | 1 |
| Rated voltage (III/3) | 72 V (DC) |
| 72 V (DC) | |
| Rated surge voltage | ≥ 1 kV |
| Rated current | 1 A |
| Insulation resistance | ≥ 500 MΩ |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
Environmental Product Compliance
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
|---|
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027261200eCl@ss 7.027440210eCl@ss 8.027440210eCl@ss 9.027440210
| Feature Name | Feature Value |
|---|---|
| Material assembly frame (EF007542) | Plastic |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 29.5 mm |
| Height (EF000040) | 42 mm |
| Depth (EF000049) | 63.2 mm |
