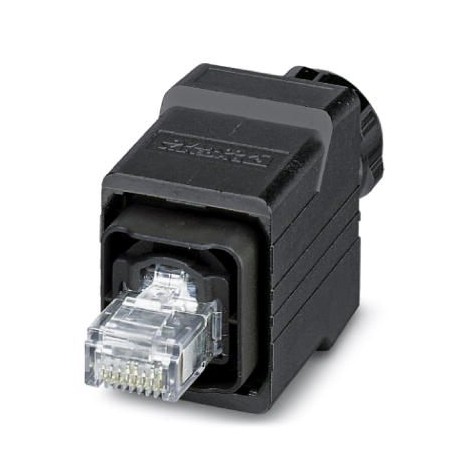

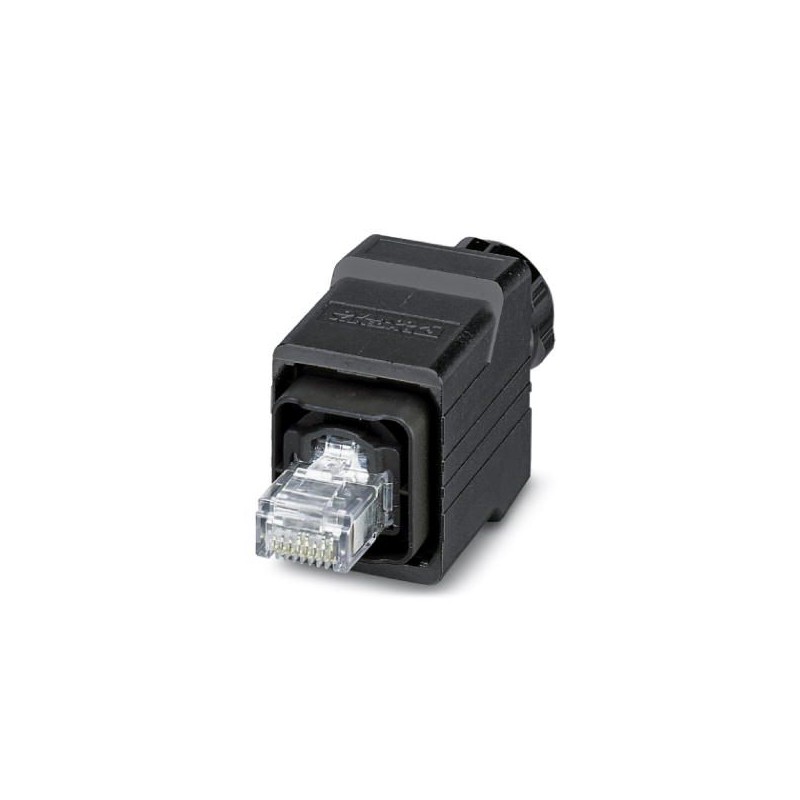

VS-PPC-C1-RJ45-POBK-PG9-4Q5-OL 1404142 PHOENIX CONTACT RJ45 connector
VS-PPC-C1-RJ45-POBK-PG9-4Q5-OL
1404142
PHOENIX_CONTACT
RJ45 connector
RJ45 plug-in connector, IP67, with push-pull lock, plastic housing, CAT5e, 4 poles, with QUICKON quick connect technology, for 1 and 7 wire conductors AWG 26 ... 22, for cable diameters of 5.0 mm... 8.0 mm
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1404142 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356303699 |
| Weight per Piece (excluding packing) | 29.740 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Standards and Regulations
| Standards/regulations | IEC PAS 61076-3-117 |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440101eCl@ss 8.027440101eCl@ss 9.027440101
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 4 |
| Type of housing (EF006980) | Straight |
| Ambient temperature (EF002386) | -40 °C |
| Over voltage category (EF006785) | I |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.13 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.13 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.13 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.13 mm² |
| Material of contact surface (EF004020) | Gold |
| Housing material (EF001596) | Plastic |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Min. number of insertion cycles (EF012212) | 500 |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
