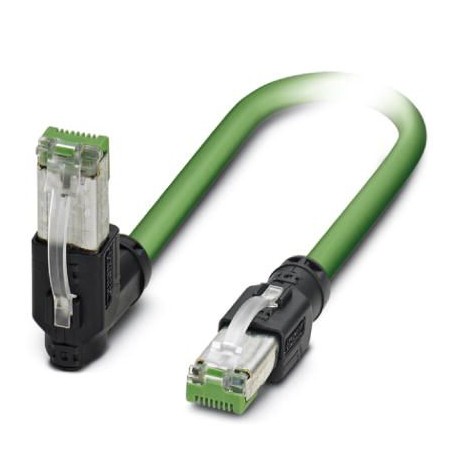

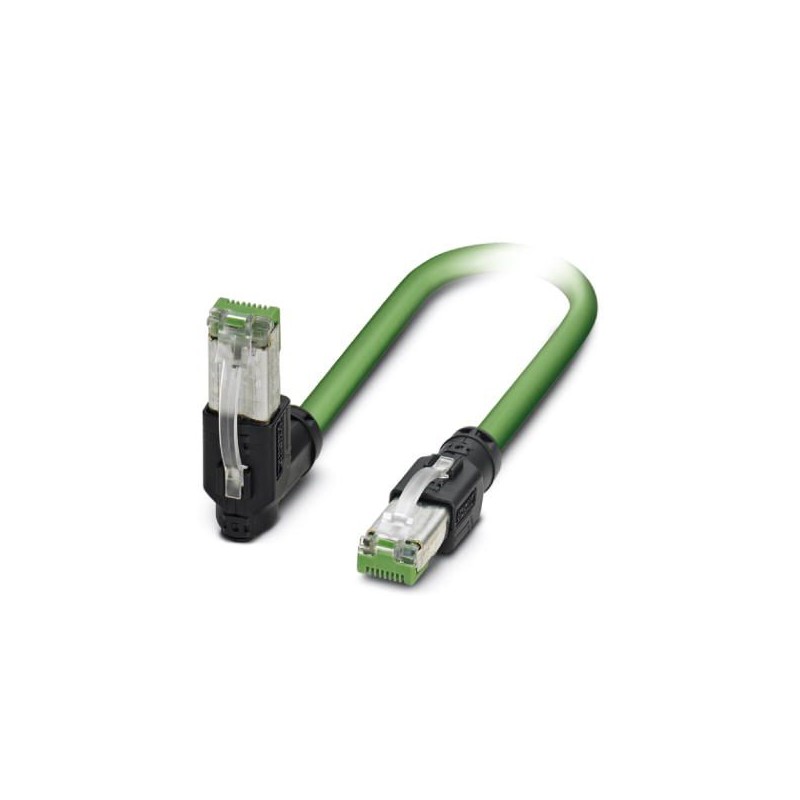

VS-PNRJ45-PNRJ45R-93C-2,0 1418390 PHOENIX CONTACT Patch cable
VS-PNRJ45-PNRJ45R-93C-2,0
1418390
PHOENIX_CONTACT
Patch cable
Data and telecommunication > Patch cord copper (twisted pair)
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1418390 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356534628 |
| Weight per Piece (excluding packing) | 164.000 g |
| Custom tariff number | 85444210 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -20 °C ... 70 °C (cable, flexible installation) |
Cable
| Cable structure | 1x4xAWG22/19; S/TQ |
|---|---|
| Conductor cross section | 0.38 mm² |
| AWG signal line | 22 |
| Conductor structure signal line | 19x 0.15 mm |
| Core diameter including insulation | 1.5 mm 0.1 mm |
| Wire colors | White, yellow, blue, orange |
| External sheath, color | green RAL 6018 |
| Number of bending cycles | 5000000 |
| Bending radius | 60 mm |
| Traversing rate | 3 m/s |
| Acceleration | 3 m/s² |
| Outer sheath, material | PUR |
| Conductor material | Tin-plated Cu litz wires |
| Wave impedance | 100 Ω ±15 Ω (at 1 ... 100 MHz) |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.119030300eCl@ss 6.027061800eCl@ss 7.027060308eCl@ss 8.027060308eCl@ss 9.027060308
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
