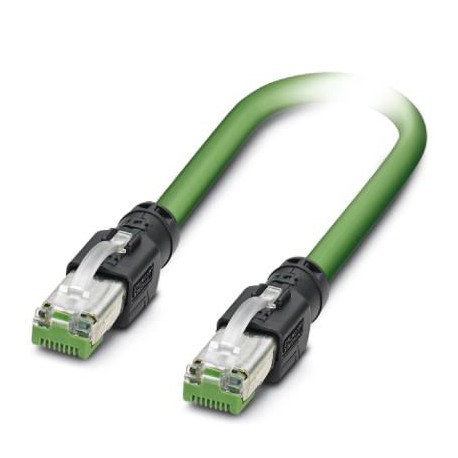

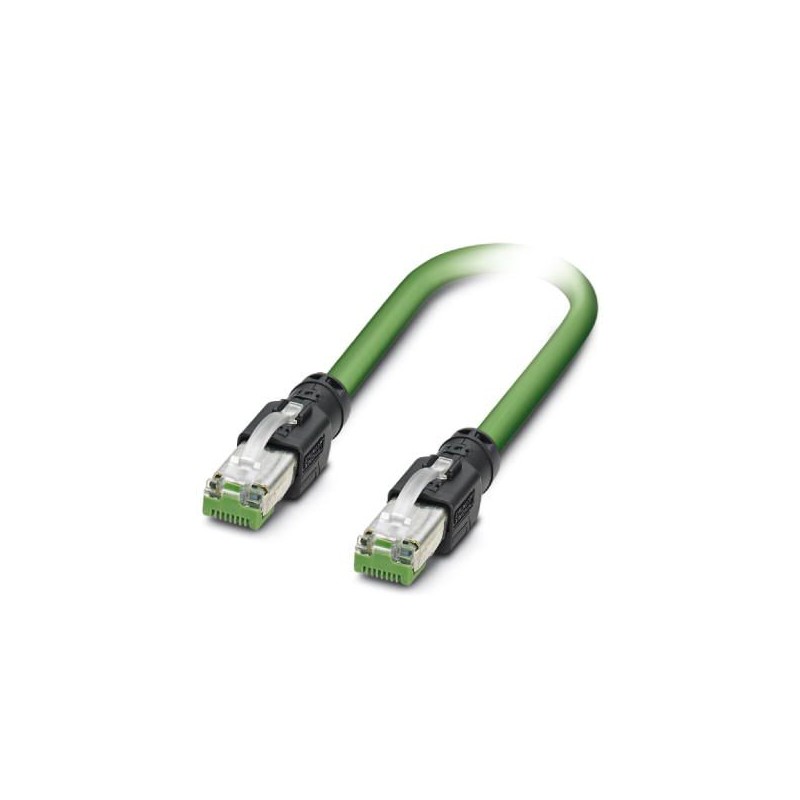

VS-PNRJ45-PNRJ45-93C-2,0 1418387 PHOENIX CONTACT Patch cable
VS-PNRJ45-PNRJ45-93C-2,0
1418387
PHOENIX_CONTACT
Patch cable
PROFINET patch cable, shielded, star quad, flexible AWG 22 (19 wires), green, RJ45/IP20 connector, straight, in RJ45/IP20 connector, straight, length: 2 m
Sensors > Sensor-actuator patch cord
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1418387 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356534611 |
| Weight per Piece (excluding packing) | 161.100 g |
| Custom tariff number | 85444210 |
| Country of origin | PL (Poland) |
General data
| Number of positions | 4 |
|---|---|
| Degree of pollution | 1 |
| Rated voltage (III/3) | 72 V (DC) |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Housing material | PA 6.6 |
Cable
| Cable structure | 1x4xAWG22/19; S/TQ |
|---|---|
| Conductor cross section | 0.38 mm² |
| AWG signal line | 22 |
| Conductor structure signal line | 19x 0.15 mm |
| Core diameter including insulation | 1.5 mm 0.1 mm |
| Wire colors | White, yellow, blue, orange |
| External sheath, color | green RAL 6018 |
| Number of bending cycles | 5000000 |
| Bending radius | 60 mm |
| Traversing rate | 3 m/s |
| Acceleration | 3 m/s² |
| Outer sheath, material | PUR |
| Conductor material | Tin-plated Cu litz wires |
| Wave impedance | 100 Ω ±15 Ω (at 1 ... 100 MHz) |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.119030300eCl@ss 6.027061800eCl@ss 7.027060308eCl@ss 8.027060308eCl@ss 9.027060308
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | Other |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 2 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | No |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Material of contact surface (EF004020) | Other |
| Degree of protection (IP) (EF005474) | Other |
