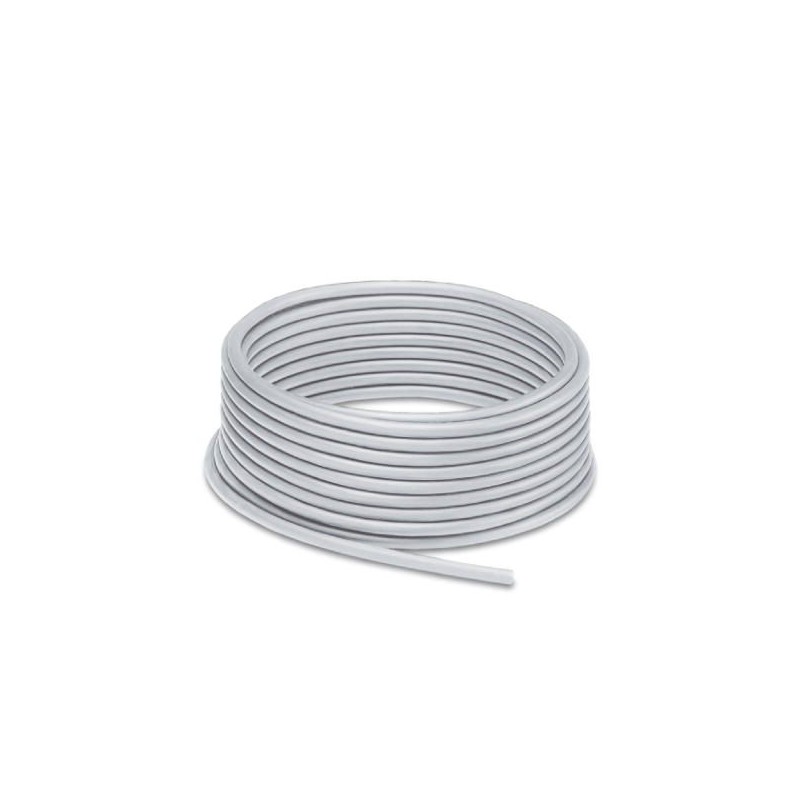

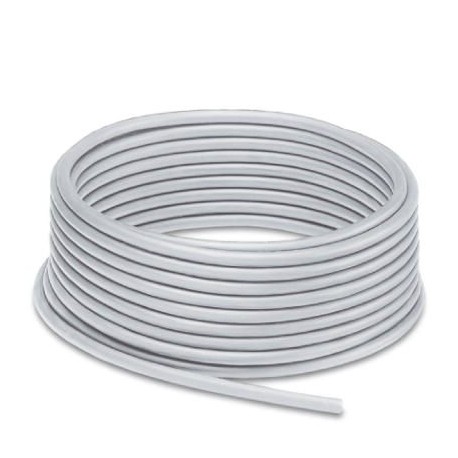

VS-PN-CABLE-1020/PVC-5X2,5/100 1609523 PHOENIX CONTACT Power cable
VS-PN-CABLE-1020/PVC-5X2,5/100
1609523
PHOENIX_CONTACT
Power cable
PROFINET power cable, 5 x 2.5 mm², flexible (7 wires), outer sheath: PVC, outer diameter 11.8 mm, RAL 7001 (silver grey), oil-resistant, cable reel: 100 m
Cables > Power cable less 1 kV, for moving application
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1609523 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 216 (PC-2007) |
| GTIN | 4046356166881 |
| Weight per Piece (excluding packing) | 24,070.000 g |
| Custom tariff number | 85444995 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
|---|---|
| -5 °C ... 70 °C (cable, flexible installation) |
Line characteristics
| Cable type | PVC gray |
|---|---|
| Conductor cross section | 5x 2.5 mm² |
| AWG power supply | 14 |
| Conductor structure, voltage supply | 50x 0.25 mm |
| External cable diameter | 11.8 mm |
| Wire colors | blue, brown, black, gray, green/yellow |
| External sheath, color | gray RAL 7001 |
| Insulation resistance | > 0.2 MΩ*km |
| Nominal voltage, cable | 750 V |
| 1000 V (Fixed, protected installation) | |
| Test voltage, cable | 4000 V |
| Overall twist | 5 cores, twisted |
| Outer sheath, material | PVC |
| Material conductor insulation | PVC |
| Conductor material | Bare Cu litz wires |
| Cable weight | 242 kg/km |
| Minimum bending radius, fixed installation | 4 x D |
| Minimum bending radius, flexible installation | 15 x D |
| cable layer type | Indoors |
| Flame resistance | according to IEC 60332-1-2 |
| Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
| -5 °C ... 70 °C (cable, flexible installation) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.119030300eCl@ss 6.027061800eCl@ss 7.027061801eCl@ss 8.027061801eCl@ss 9.027061801
| Feature Name | Feature Value |
|---|---|
| AWG size (EF011789) | Other |
| Nominal cross section conductor (EF000060) | 2.5 mm² |
| Conductor category (EF001632) | Class 6 = very flexible |
| Number of cores (EF001792) | 5 |
| Screen over stranding element (EF001623) | None |
| Stranding element (EF001617) | No |
| Screen over stranding (EF001624) | None |
| Material core insulation (EF000061) | Polyvinyl chloride (PVC) |
| Specification core insulation (EF011805) | Other |
| Core identification (EF000067) | Colour |
| With protective conductor (EF007468) | Yes |
| Suspension element (EF001794) | Other |
| Material outer sheath (EF001625) | Polyvinyl chloride (PVC) |
| Specification material outer sheath (EF011806) | Other |
| Colour outer sheath (EF001618) | Grey |
| Screen (EF001791) | No |
| Torsion resistant (EF001687) | No |
| Low smoke according to EN IEC 61034-2 (EF003799) | No |
| Cable width approx. (EF003796) | 11.8 mm |
| Cable height approx. (EF003797) | 11.8 mm |
| Outer diameter approx. (EF003921) | 11.8 mm |
| Min. permitted bending radius, moving application/free movement (EF011802) | 177 mm |
| Min. permitted bending radius, stationary application/permanent installation (EF011803) | 48 mm |
| Nominal voltage U0 (EF001790) | 750 V |
| Max. conductor temperature (EF003803) | 80 °C |
