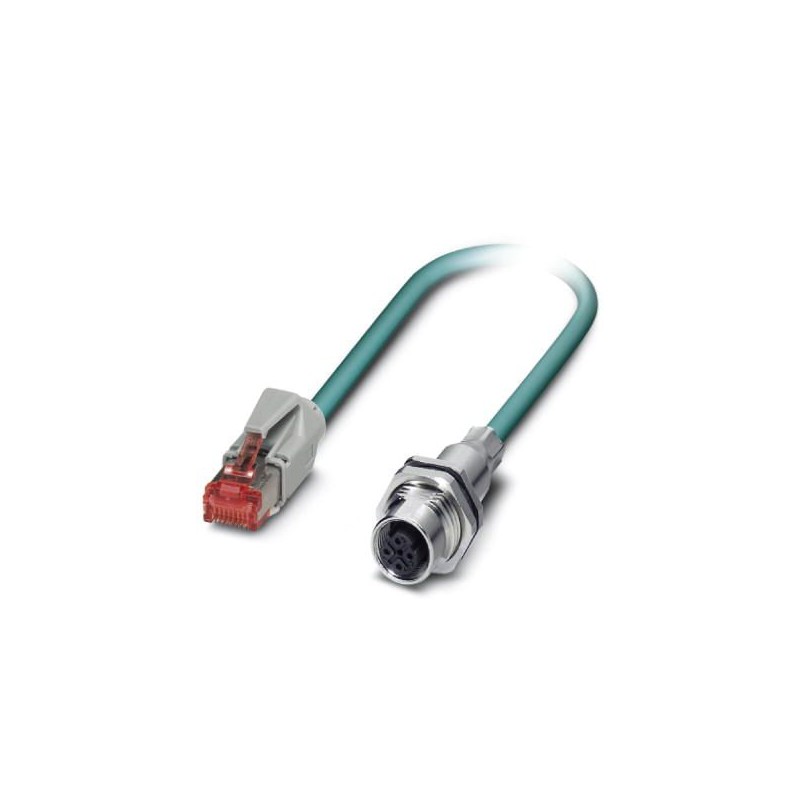

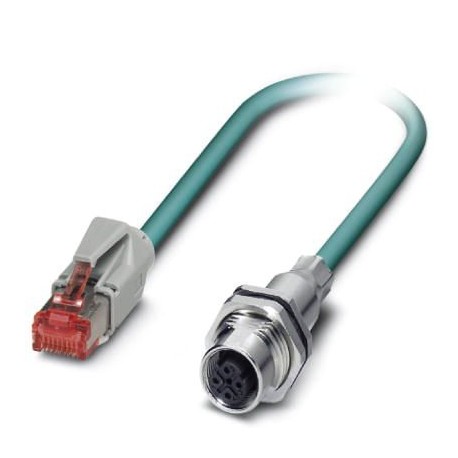

VS-M12FSBPS-IP20-93E-LI/0,5 1404205 PHOENIX CONTACT Network cable
VS-M12FSBPS-IP20-93E-LI/0,5
1404205
PHOENIX_CONTACT
Network cable
Data and telecommunication > Patch cord copper (twisted pair)
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1404205 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356681490 |
| Weight per Piece (excluding packing) | 55.500 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
|---|---|
| -20 °C ... 80 °C (cable, flexible installation) |
Cable
| Cable type | Ethernet |
|---|---|
| Cable type (abbreviation) | 93E |
| Signal type/category | Ethernet CAT5 (IEC 11801:2002) |
| Cable structure | 2x2xAWG26/7 PIMF |
| Conductor cross section | 2x 2x 0.14 mm² |
| AWG signal line | 26 |
| Conductor structure signal line | 7x 0.15 mm |
| Core diameter including insulation | ≤ 1.05 mm |
| Wire colors | white/orange-orange, white/green-green |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Aluminum-lined polyester foil |
| Overall twist | Two pairs with two fillers to the core |
| Shielding | Tinned copper braided shield |
| External sheath, color | water blue RAL 5021 |
| External cable diameter D | 6.7 mm |
| Smallest bending radius, movable installation | 34 mm |
| Tensile strength GRP | 30 N (for installation) |
| 10 N (in accordance with installation) | |
| Cable weight | 42 kg/km |
| Outer sheath, material | PUR |
| Material conductor insulation | Cell PE |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | ≥ 5 GΩ*km |
| Conductor resistance | ≤ 150 Ω/km |
| Working capacitance | 42 pF |
| Wave impedance | 100 Ω ±5 % (at 100 MHz) |
| Signal speed | 0.72 c |
| Shield attenuation | 60 dB (up to 1000 MHz) |
| Coupling resistance | 5.00 mΩ/m (at 10 MHz) |
| Nominal voltage, cable | max. 125 V |
| Test voltage, cable | 1000 V |
| Special properties | Free of substances which would hinder coating with paint or varnish |
| Flame resistance | complying with IEC 60332-2-2 |
| Halogen-free | complying with IEC 60754-1/2 |
| Resistance to oil | in accordance with DIN EN 60811-2-1 |
| Other resistance | Microbe resistance as per VDE 0282 section 10 |
| Hydrolysis resistance as per DIN 53504 | |
| Concentration of fumes | in accordance with IEC 61034-1/2 |
| Ambient temperature (operation) | -40 °C ... 70 °C (cable, fixed installation) |
| -10 °C ... 50 °C (cable, flexible installation) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.119030300eCl@ss 6.027061800eCl@ss 7.027060308eCl@ss 8.027060308eCl@ss 9.027060308
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
