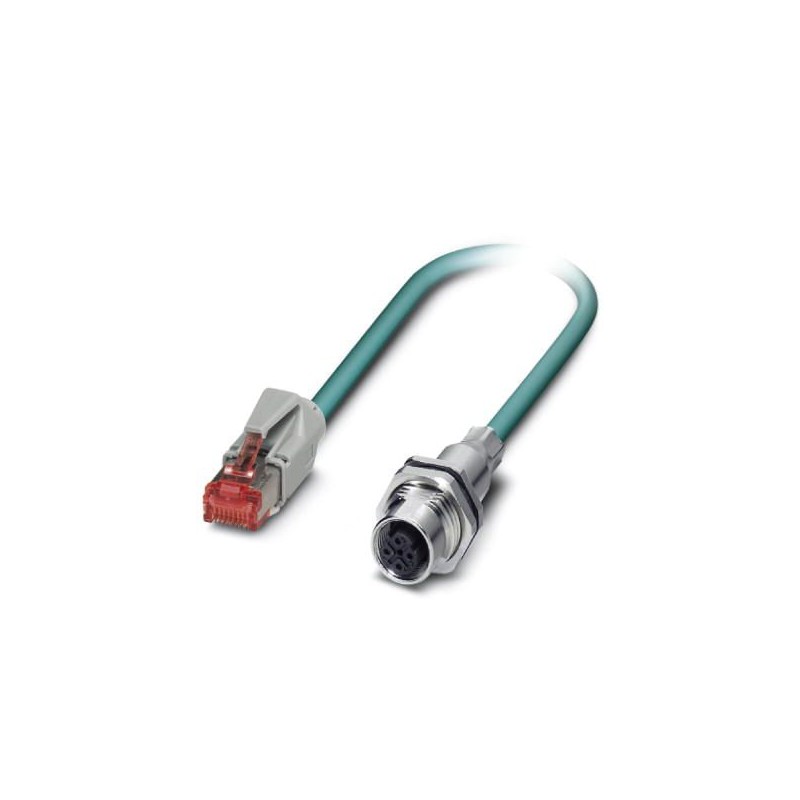

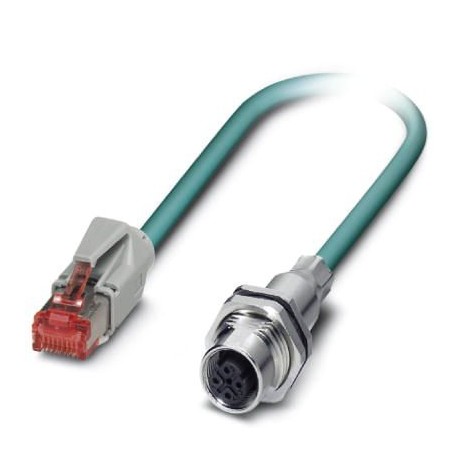

VS-M12FSBP-IP20-93E-LI/0,3 1403157 PHOENIX CONTACT Network cable
VS-M12FSBP-IP20-93E-LI/0,3
1403157
PHOENIX_CONTACT
10
Network cable
Ready-made Ethernet cable, CAT5e, shielded, 2 pairs, flexible AWG 26 (7 wire), RAL 5021 (aqua blue), M12 built-in mount female, SPEEDCOM backwall mount/bolted mount to RJ45/IP20 male connector, Line, length 0.3 m
Connectors > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1403157 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 10 pc |
| GTIN | 4046356644068 |
| Weight per Piece (excluding packing) | 44.500 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
Mechanical characteristics
| Number of positions | 4 |
|---|---|
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 100 |
| Cable diameter | 6.70 mm |
| Cable outlet | straight |
| Cable structure | 2x2xAWG26/7; SF/UTP |
| Length of cable | 0.3 m |
| Degree of protection | IP67 |
| No. of cable outlets | 1 |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C (cable, fixed installation) |
|---|---|
| -5 °C ... 60 °C (cable, flexible installation) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.119030300eCl@ss 6.027061800eCl@ss 7.027060308eCl@ss 8.027060308eCl@ss 9.027060308
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 4 |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 2 A |
| Ambient temperature (EF002386) | -25 °C |
| Rated voltage (EF000228) | 48 V |
| Over voltage category (EF006785) | II |
| Pollution degree (EF006786) | 3 |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Min. number of insertion cycles (EF012212) | 100 |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
Datasheet - PDF
