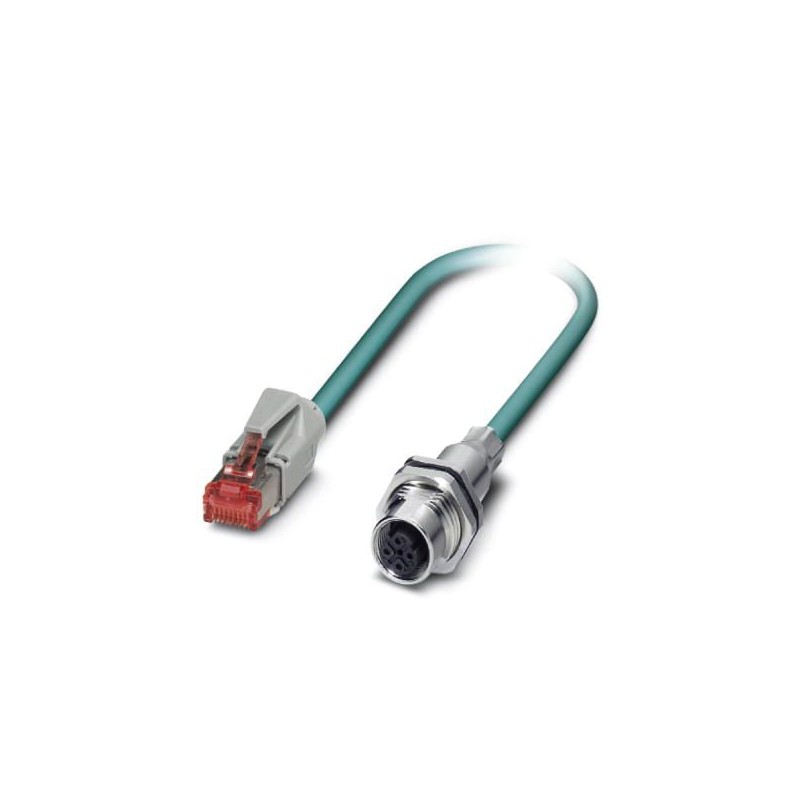

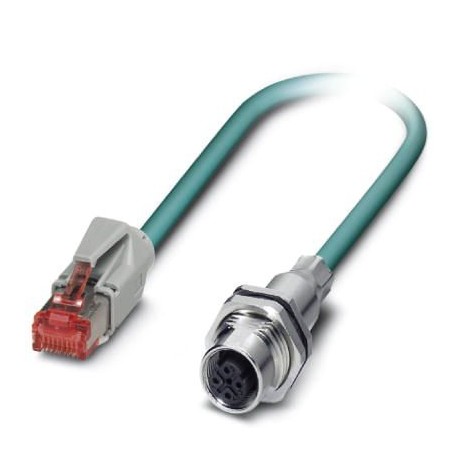

VS-M12FSBP-IP20-93E-LI/0,25 1402129 PHOENIX CONTACT Network cable
VS-M12FSBP-IP20-93E-LI/0,25
1402129
PHOENIX_CONTACT
50
Product on demand only, returns will not be accepted.
Network cable
Network cable, CAT5 Ethernet (100 MBit/s), 4-pole, PUR, water blue RAL5021, Built-in mounting female straight M12 SPEEDCON / IP67, to Straight RJ45 / IP20 connector, cable length: 0.25 m
Connectors > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1402129 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356584883 |
| Weight per Piece (excluding packing) | 44.000 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
Mechanical characteristics
| Number of positions | 4 |
|---|---|
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 100 |
| Cable diameter | 6.70 mm |
| Cable outlet | straight |
| Cable structure | 2x2xAWG26/7; SF/UTP |
| Length of cable | 0.25 m |
| Degree of protection | IP67 |
| No. of cable outlets | 1 |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C (cable, fixed installation) |
|---|---|
| -5 °C ... 60 °C (cable, flexible installation) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.119030300eCl@ss 6.027061800eCl@ss 7.027060308eCl@ss 8.027060308eCl@ss 9.027060308
| Feature Name | Feature Value |
|---|---|
| Cable type (EF000081) | SF/UTP |
| Category (EF001619) | 5 |
| Length (EF001438) | 0.25 m |
| Type of connector connection 1 (EF002505) | Other |
| Type of connector connection 2 (EF002506) | RJ45 8(4) |
| Colour outer sheath (EF001618) | Other |
| Anti-kink sleeve (EF002435) | Moulded-on |
| Locking lever (EF005199) | No |
| Oil resistant according to EN IEC 60811-404 (EF009770) | No |
| Cable construction (EF003433) | Other |
| Pin assignment (EF000940) | 1:1 |
| Compatible with Grade2TV according to XP-C 90-483 (EFFR0001) | No |
| Compatible with Grade3TV according to XP-C 90-483 (EFFR0002) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
