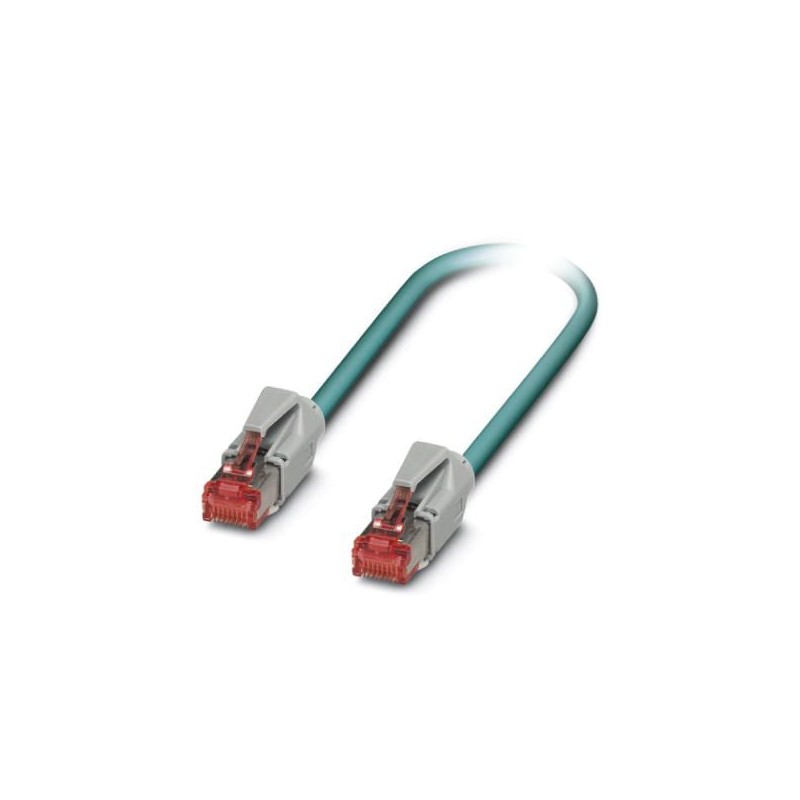

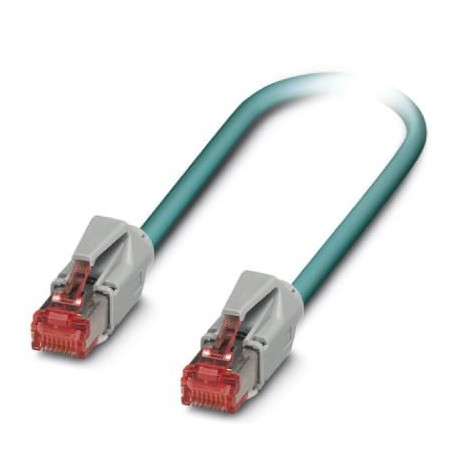

VS-IP20-IP20-93E-LI/0,3 1400850 PHOENIX CONTACT Network cable
VS-IP20-IP20-93E-LI/0,3
1400850
PHOENIX_CONTACT
50
Network cable
Ready-made Ethernet cable, CAT5e, shielded, 2 pairs, flexible AWG 26 (7 wires), RAL 5021 (aqua blue), RJ45/IP20 male to RJ45/IP20 male connector, Line, length 0.3 m
Data and telecommunication > Patch cord copper (twisted pair)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1400850 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356509732 |
| Weight per Piece (excluding packing) | 33.100 g |
| Custom tariff number | 85444210 |
| Country of origin | PL (Poland) |
Mechanical characteristics
| Number of positions | 4 |
|---|---|
| Number of slots | 1 |
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 750 |
| Cable diameter | 6.70 mm |
| Cable outlet | straight |
| Cable structure | 2x2xAWG26/7; SF/UTP |
| Degree of protection | IP20 |
| IP20 | |
| No. of cable outlets | 1 |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C (cable, fixed installation) |
|---|---|
| -5 °C ... 60 °C (cable, flexible installation) | |
| Degree of protection | IP20 |
Material data
| Flammability rating according to UL 94 | V2 |
|---|---|
| Outer sheath, material | PUR |
| External sheath, color | water blue RAL 5021 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.119030300eCl@ss 6.027061800eCl@ss 7.027060308eCl@ss 8.027060308eCl@ss 9.027060308
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
