VS-FSBPYS-OE-94H/3,0 SCO 1412494 PHOENIX CONTACT Flush-type socket VS-FSBPYS-OE-94H/3,0 SCO 1412494
VS-FSBPYS-OE-94H/3,0 SCO
1412494
PHOENIX_CONTACT
30

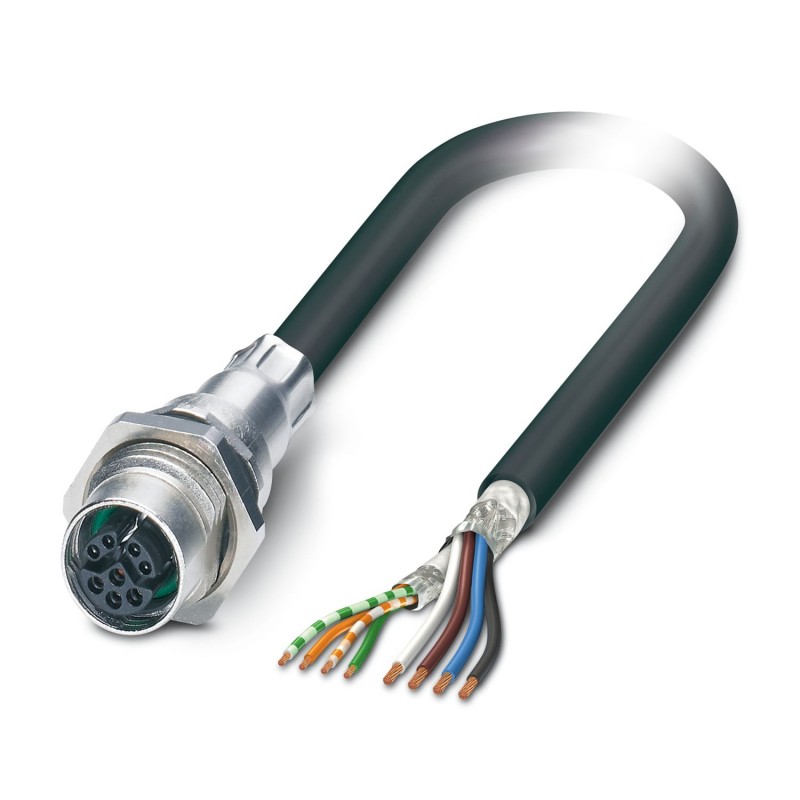

Flush-type socket - VS-FSBPYS-OE-94H/3,0 SCO - 1412494
Hybrid flush-type socket, Ethernet, 8-pos., M12-SPEEDCON, rear/screw mounting with M16 thread, 360° shield connection with connected shielded hybrid cable
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Notes on operation | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Mounting type | Rear mounting |
| Product type | Circular connectors (device side) |
| Number of positions | 8 |
| Shielded | yes |
| Coding | Y |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Material | Zinc die-cast (nickel-plated) |
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM |
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PPA |
| Outer sheath, material | PUR mixture halogen-free |
| Conductor material | Bare Cu litz wires |
| Rated surge voltage | 0.8 kV |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC (Power and data) |
| 50 V DC (Power and data) | |
| Nominal current IN | 6 A (Power) |
| 0.5 A (Data) | |
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Wave impedance | 100 Ω |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Cable length | 3 m |
| Cable type | Ethernet hybrid |
| Cable structure | 2x2xAWG26 + 1x4xAWG20 |
| External cable diameter | 7.60 mm |
| Outer sheath, material | PUR mixture halogen-free |
| External sheath, color | black RAL 9005 |
| Wire diameter incl. insulation | 1.05 mm |
| Single wire, color | Ethernet: white/orange-orange, white/green-green Power: white, blue, brown, black |
| Cable cross section | 0.15 mm² |
| 0.6 mm² | |
| Conductor material | Bare Cu litz wires |
| Conductor structure signal line | 4x 1.05 mm |
| AWG signal line | 26 |
| Conductor structure, voltage supply | 4x 1.40 mm |
| AWG power supply | 20 |
| Test voltage Core/Core | 1.5 kV AC (Core - core) |
| Test voltage Core/Shield | 1.50 kV AC (Line-shield) |
| Wave impedance | 100 Ω ±15 Ω (At an ambient temperature of 20°C) |
| Smallest bending radius, movable installation | min. 110 mm |
| Ambient temperature (operation) | -40 °C ... 90 °C (fixed routing) |
| -30 °C ... 70 °C (Flexibly installed) |
| Ambient conditions | |
| Degree of protection | IP67 |
| IP67, when plugged in | |
| Ambient temperature (operation) | -30 °C ... 70 °C (Flexibly installed) |
| -40 °C ... 90 °C (fixed routing) | |
| -40 °C ... 85 °C | |
