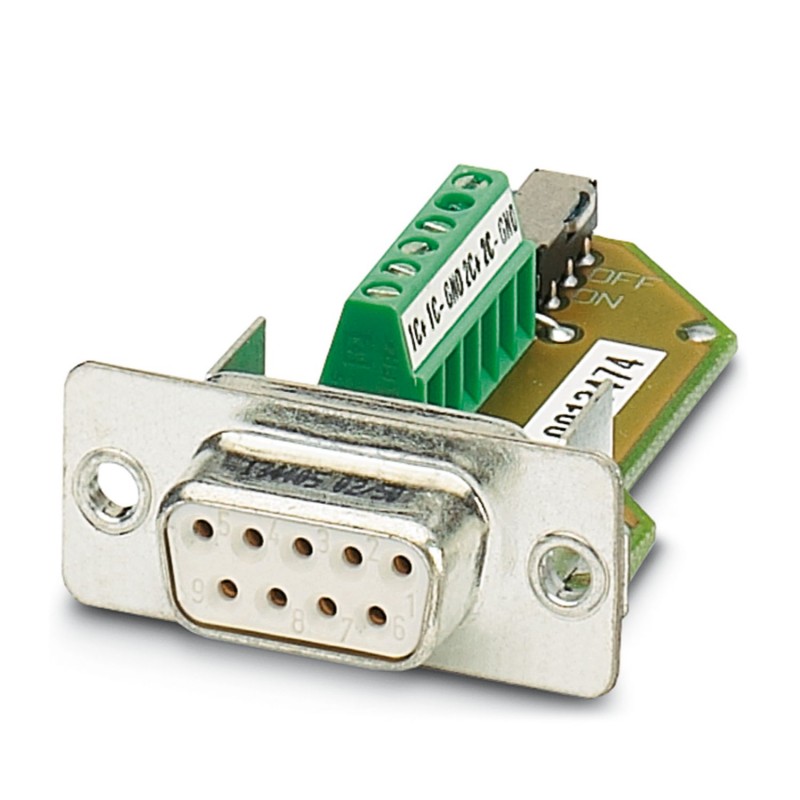

VS-09-BU-DSUB/CAN 1689051 PHOENIX CONTACT D-SUB contact insert
VS-09-BU-DSUB/CAN
1689051
PHOENIX_CONTACT
10
Product on demand only, returns will not be accepted.
D-SUB contact insert
CAN-BUS D-SUB contact insert, construction 09, execution: female
D-SUB CAN-BUS contact insert, type 09, version: Socket
Data and telecommunication > D-Sub connector
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Female insert |
| Type | D-SUB |
| Connection profile | D-SUB |
| Number of slots | 1 |
| Shielded | yes |
| Data management status | |
| Article revision | 02 |
| Transmission medium | Copper |
| Power transmission | Power |
| Connection technology | |
| Connection method | Screw connection |
| Width | 24 mm |
| Height | 59.8 mm |
| Length | 104.65 mm |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | tin-plated |
| Contact carrier material | PA |
| Ambient conditions | |
| Degree of protection | IP20 |
| Mounting type | Screw mounting |
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 0 |
| Contact insert without contacts (EF007324) | Yes |
| Contact type (EF001587) | Bus |
| With wire protection (EF000550) | No |
| Material of contact surface (EF004020) | Tin |
| Material of contact insert (EF008521) | Other |
| Material contact (EF007544) | Copper |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Width (EF000008) | 24 mm |
| Height (EF000040) | 59.8 mm |
| Depth (EF000049) | 104.65 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
