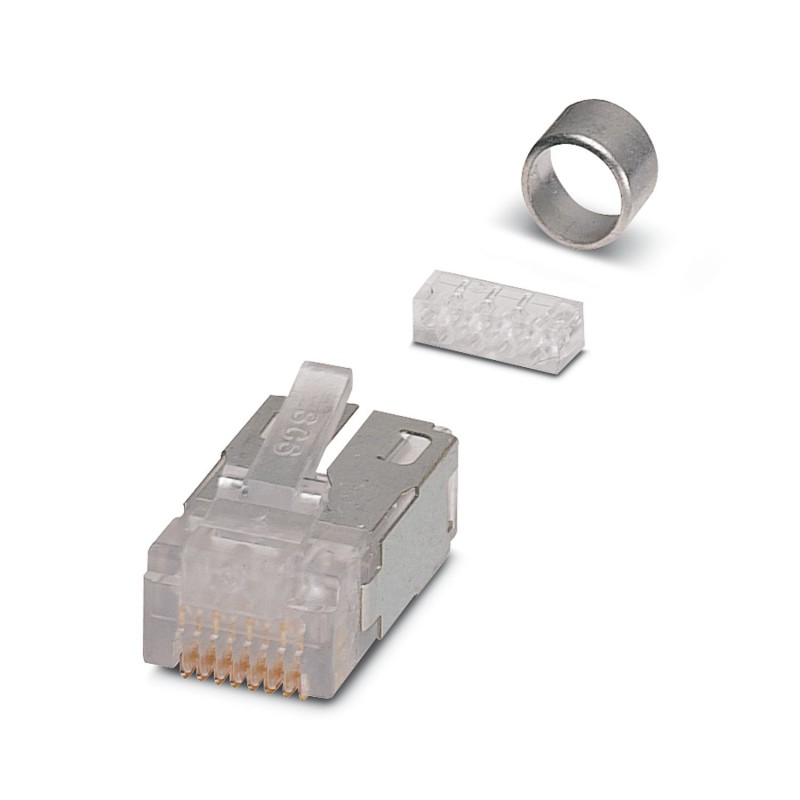

VS-08-ST-RJ45 1688573 PHOENIX CONTACT RJ45 male insert
VS-08-ST-RJ45
1688573
PHOENIX_CONTACT
5
RJ45 male insert
Connectors > Contact insert for rectangular connectors
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1688573 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 168 (PC-2007) |
| GTIN | 4017918622404 |
| Weight per Piece (excluding packing) | 2.840 g |
| Custom tariff number | 85366990 |
| Country of origin | US (United States) |
Mechanical characteristics
| Number of positions | 8 |
|---|---|
| Number of slots | 1 |
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 750 |
| Connection method | IDC |
| Conductor cross section | 0.13 mm² ... 0.2 mm² (solid) |
| 0.14 mm² (flexible) | |
| Connection cross section AWG | 26 ... 24 (solid) |
| 26 (flexible) | |
| Cable outlet | straight |
| No. of cable outlets | 1 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact carrier material | Thermoplastic |
| Contact material | Copper alloy |
| Contact surface material | Gold over nickel |
| Height | 12.3 mm |
Electrical characteristics
| Number of positions | 8 |
|---|---|
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| GRP transmission properties | CAT5 (IEC 11801:2002) |
| Rated current | 1.5 A |
| Overvoltage category | II |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 72 V (DC) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
