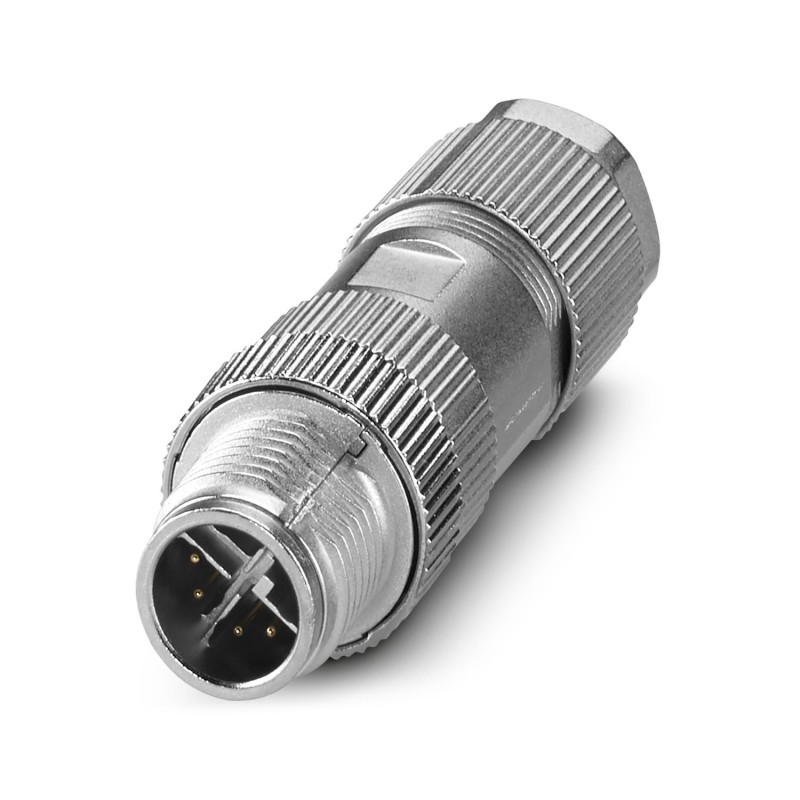

VS-08-M12MS-10G-P SCO WL 1403882 PHOENIX CONTACT M12 connector, CAT6
VS-08-M12MS-10G-P SCO WL
1403882
PHOENIX_CONTACT
50
M12 connector, CAT6
M12 plug-in connector, CAT6A, male, straight, 8 poles, shielded, for cable diameter of 4 mm ... 8 mm, customer variant
Connectors > Circular connector for field assembly (industrial connector)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲
General
| Note | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
|---|---|
| Rated current at 40°C | 0.5 A |
| Rated voltage | 50 V AC |
| 60 V DC | |
| Number of positions | 8 |
| Insulation resistance | ≥ 100 MΩ |
| Standards/regulations | M12 connector IEC 61076-2-109 |
| Signal type/category | Ethernet CAT6A(IEC 11801), 10 Gbps |
| Status display | No |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection method | Piercecon® |
| Insertion/withdrawal cycles | ≥ 100 |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PP |
| Material of grip body | Zinc die-cast, nickel-plated |
Standards and Regulations
| Standards/specifications | M12 connector IEC 61076-2-109 |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27440102 |
|---|---|
| eCl@ss 4.0 | 27140815 |
| eCl@ss 4.1 | 27140815 |
| eCl@ss 5.0 | 27260701 |
| eCl@ss 5.1 | 27260701 |
| eCl@ss 6.0 | 27279221 |
| eCl@ss 7.0 | 27440104 |
| eCl@ss 8.0 | 27440104 |
| eCl@ss 9.0 | 27440102 |
UNSPSC
| UNSPSC 6.01 | 31251501 |
|---|---|
| UNSPSC 7.0901 | 31251501 |
| UNSPSC 11 | 31251501 |
| UNSPSC 12.01 | 31251501 |
| UNSPSC 13.2 | 31251501 |
| UNSPSC 18.0 | 39121413 |
| UNSPSC 19.0 | 39121413 |
| UNSPSC 20.0 | 39121413 |
| UNSPSC 21.0 | 39121413 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
