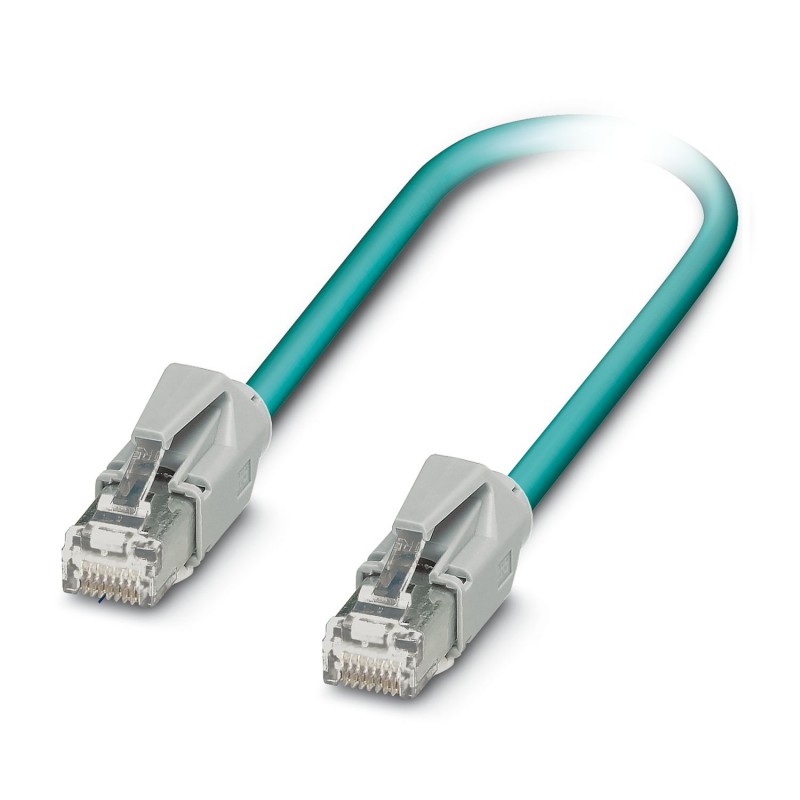

VS-08-LI-C25-51-0,5-VW 1405073 PHOENIX CONTACT Connector component
VS-08-LI-C25-51-0,5-VW
1405073
PHOENIX_CONTACT
10
Connector component
Plug-in connector components, number of poles: 8
Cables > Data cable
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1405073 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356302890 |
| Weight per Piece (excluding packing) | 41.800 g |
| Custom tariff number | 85444210 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 8 |
|---|---|
| Shielded | yes |
| Cable diameter | 6.10 mm |
| Cable structure | 4x2xAWG26/7; S-UTP |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 80 °C (cable, fixed installation) |
|---|---|
| -5 °C ... 60 °C (cable, flexible installation) | |
| Plug / socket |
Line characteristics
| Cable type | Ethernet |
|---|---|
| Cable structure | 4x2xAWG26/7; S-UTP |
| Conductor cross section | 0.14 mm² |
| AWG signal line | 26 |
| Conductor structure signal line | 7x 0.16 mm |
| Core diameter including insulation | 1 mm |
| External cable diameter | 6.10 mm |
| Wire colors | white/blue-blue, white/orange-orange, white/green-green, white/brown-brown |
| External sheath, color | water blue RAL 5021 |
| Insulation resistance | ≥ 5 GΩ*km |
| Conductor resistance | ≤ 284 Ω/km |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Working capacitance | 48 nF (At 800 Hz) |
| Wave impedance | 100 Ω ±15 % (at 1 ... 100 MHz) |
| Nominal voltage, cable | 125 V |
| Test voltage Core/Core | 1000 V |
| Test voltage Core/Shield | 500 V |
| Twisted pairs | 2 cores to the pair |
| Overall twist | 4 pairs for core |
| Shielding | Plastic-coated aluminum foil, tinned copper braided shield |
| Optical shield covering | 85 % |
| Outer sheath, material | PUR |
| Conductor material | Bare Cu litz wires |
| Smallest bending radius, fixed installation | 50 mm (cable, fixed installation) |
| Smallest bending radius, movable installation | 95 mm (cable, flexible installation) |
| Ambient temperature (operation) | -20 °C ... 70 °C (cable, fixed installation) |
| -5 °C ... 60 °C (cable, flexible installation) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.119030300eCl@ss 6.027061800eCl@ss 7.027061801eCl@ss 8.027061801eCl@ss 9.027061801
