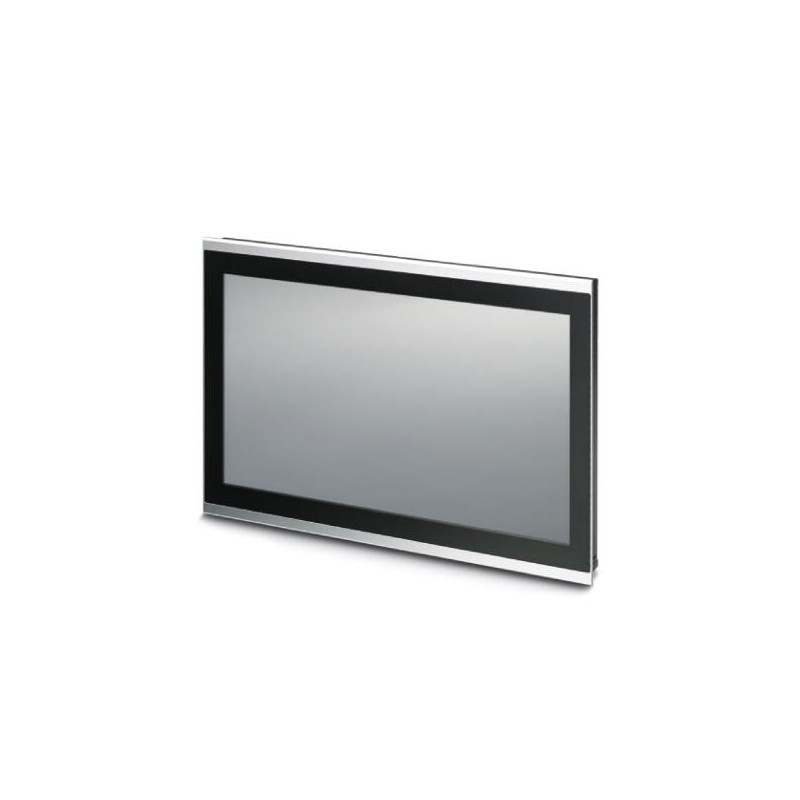

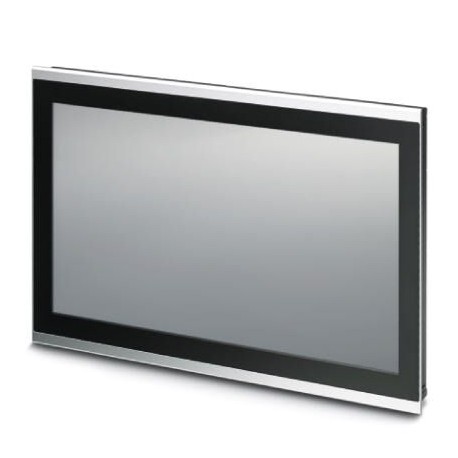

VL2 PPC18.5 2000 AU 04 2404328 PHOENIX CONTACT Panel PC with 47.0 cm / 18.5" TFT-display (projective-capacit..
VL2 PPC18.5 2000 AU 04
2404328
PHOENIX_CONTACT
Panel PC with 47.0 cm / 18.5" TFT-display (projective-capacitive, ten-touch control), 1366 x 768 Pixel(s) (WXGA), 16.7 million colors, Intel
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Panel PC with 47.0 cm / 18.5" TFT-display (projective-capacitive, ten-touch control), 1366 x 768 Pixel(s) (WXGA), 16.7 million colors, Intel®Celeron®N2930 1.83 GHz/2.16 GHz, 1x COM (RS-232/422/485), 4x USB 2.0, 2x Ethernet (10/100/1000 Mbps), RJ45, Windows®10 IoT Enterprise LTSB 2015 (64-bit), Multi-language. (bus system:)
Key Commercial Data
| Orderkey | 2404328 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626449296 |
| Custom tariff number | 84715000 |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| Outer dimensions: width, height, depth | 464 mm x 313 mm x 8 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 455 mm x 303.2 mm (Panel cutout for 18.5-in. display) |
| Installation depth | 123 mm |
Display
| Display | 47.0 cm / 18.5" TFT |
|---|---|
| Screen resolution | 1366 x 768 Pixel(s) (WXGA) |
| Touch technology | projective-capacitive, ten-touch control |
| Brightness | 300 cd/m², typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | > 50000 h |
| Colors | 16.7 million colors |
Computer data
| Processor | Intel®Celeron®N2930 1.83 GHz/2.16 GHz |
|---|---|
| Cooling | passive |
| Operating system | Windows®10 IoT Enterprise LTSB 2015 (64-bit), Multi-language |
| RAM | 4 GB DDR3 SODIMM |
| Mass storage | 2.5" SSD (MLC), 150 GB |
| Raid system | without RAID system |
| Network | 2x Ethernet (10/100/1000 Mbps), RJ45 |
| Interfaces | 1x COM (RS-232/422/485) |
| 4x USB 2.0 | |
| Monitor output | 1x DisplayPort |
| Optional interfaces | Without optional interface |
| PCI option 1 | without slot |
| Graphics card | Intel®HD Graphics |
| Realtime clock | Yes (battery-backed) |
| Service life of battery | 5 years (typical) |
General
| Mounting type | Front installation |
|---|---|
| Weight | 12 kg |
Ambient conditions
| Degree of protection | IP66 (front), IP30 (back) |
|---|---|
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Vibration (operation) | DIN EN 60068-2-6 |
| Shock | 15g, 11 ms in accordance with IEC 60068-2-27 |
Device supply
| Power supply unit | 24 V DC ±20 % |
|---|
Standards and Regulations
| Shock | 15g, 11 ms in accordance with IEC 60068-2-27 |
|---|---|
| Vibration (operation) | DIN EN 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 4.0 | 27250315 |
|---|---|
| eCl@ss 4.1 | 27250315 |
| eCl@ss 5.0 | 27259205 |
| eCl@ss 5.1 | 27330200 |
| eCl@ss 6.0 | 27242300 |
| eCl@ss 7.0 | 27242301 |
| eCl@ss 8.0 | 27242301 |
| eCl@ss 9.0 | 19200103 |
ETIM
| ETIM 4.0 | EC001414 |
|---|---|
| ETIM 5.0 | EC001414 |
| ETIM 6.0 | EC001414 |
| ETIM 7.0 | EC001414 |
