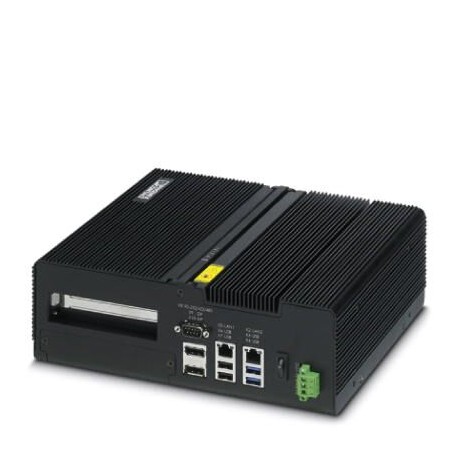

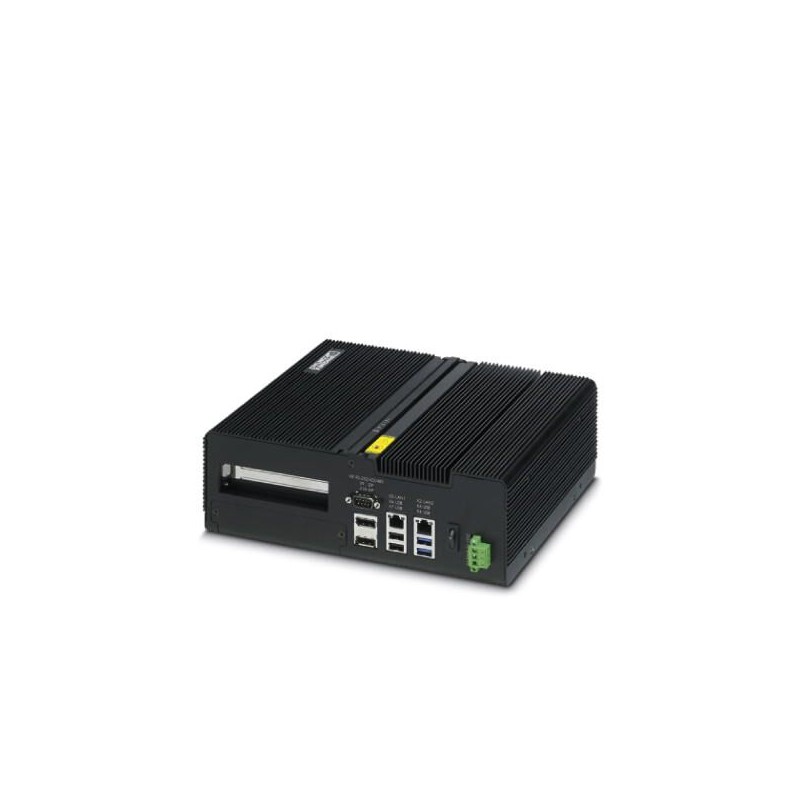

VL2 BPC 2000 VDL 01 1066262 PHOENIX CONTACT Industrial PC VL2-BPC 2000 VDL 01 1066262
VL2 BPC 2000 VDL 01
1066262
PHOENIX_CONTACT
Industrial PC - VL2-BPC 2000 VDL 01 - 1066262
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Article code specific to the customer based on a product standard, configured as 2400332/A21/I32/R26/M75/M00/OS00/T22/S00/EF00/PS01
Data commercial
| Key order | One million sixty six thousand two hundred sixty two |
|---|---|
| Packing unit | 1 pcs |
| Key selling | DRBAAA - |
| EAN | Four trillion fifty five billion six hundred twenty six million seven hundred thirty two thousand five hundred three |
| Unit weight (excluding packaging) | 4.800,000 g |
Observation
| Restriction of use | EMC: class A product, see manufacturer's declaration in the download center |
|---|
Data computer
| Processor | Intel®Celeron®N2930 1.83 GHz/2.16 GHz |
|---|---|
| Cooling | passive |
| Operating system | OS-specific client |
| Main memory | 4 GB DDR3 SODIMM |
| Data memory | 2.5" SSD (MLC), 150 GB |
| Network | 2x Ethernet (10/100/1000 Mbit/s), RJ45 |
| Interfaces | 1x COM (RS-232/422/485) |
| 4x USB 2.0 | |
| Monitor output | 2 x display ports |
| Optional Interfaces | without optional interface |
| 2x COM (RS-232), 1x COM (RS-232/422/485) | |
| Ports | PCI/PCIe optional |
| Graphics card | Intel graphics card®HD |
| Real-time clock | yes (with backup battery) |
| Battery life | 5 years (typ.) |
Overview
| Mounting type | Rack mount |
|---|---|
| Wall mount | |
| Weight | 4,2 kg |
Environmental conditions
| Index of protection | IP30 |
|---|---|
| Room temperature (service) | 0 °C ... 45 °C (with HDD) |
| -20 °C ... 65 °C For temperatures up to 65 °C, it is necessary a modification with a battery BR2032. (with SSD) | |
| Ambient temperature (storage / transport) | -40 °C ... 70 °C |
| Humidity of air permissible (service) | 5 % ... 95 % (without condensation) |
| Humidity of air permissible (storage / transport) | 5 % ... 95 % (without condensation) |
| Vibration (service) | DIN EN 60068-2-6 |
| Shock | 15g, 11 ms according to IEC 60068-2-27 |
Dimensions
| External dimension Width, Height, Depth | 264 mm x 215 mm x 95 mm |
|---|
Standards and specifications
| Shock | 15g, 11 ms according to IEC 60068-2-27 |
|---|---|
| Vibration (service) | DIN EN 60068-2-6 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
