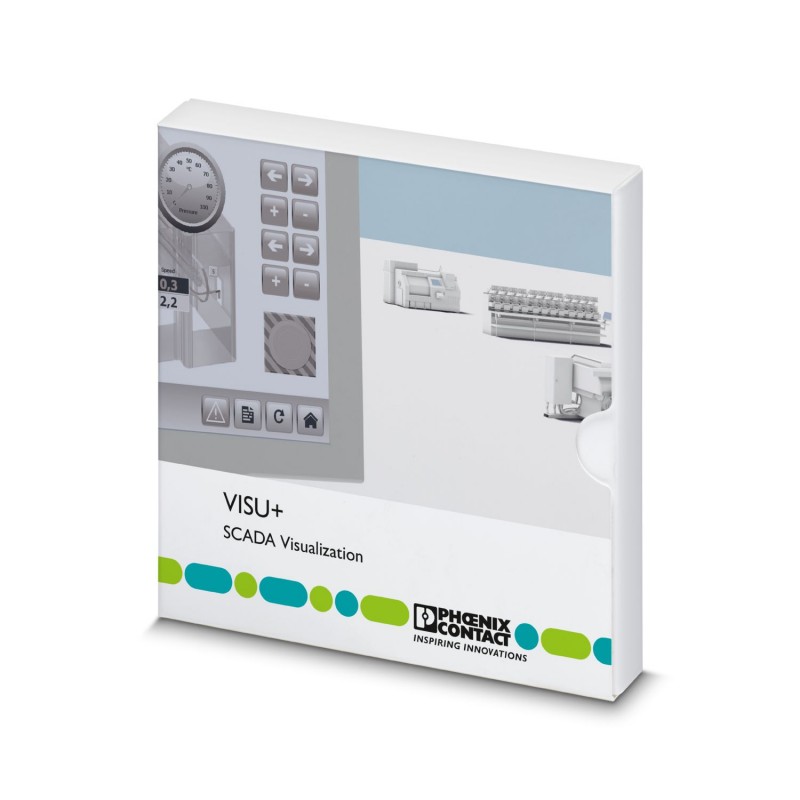

VISU+ 2 RT-D 4096 NETWORK 1088160 PHOENIX CONTACT Runtime license for Visu+ including networking function wh..
VISU+ 2 RT-D 4096 NETWORK
1088160
PHOENIX_CONTACT
Runtime license for Visu+ including networking function where the I/O data and variables in scripting are limited to 4096 bytes. 2 direct driver connections are also supported.
Runtime license for Visu+ plus the networking function with a restriction of I/O data and scripted variables to 4096 bytes. In addition, 2 direct driver connections are possible.
PLC's > Visualization software
Automation Software (AS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲License information
| Intended use for the software | Visualization |
|---|---|
| Type of license | Runtime license |
Functions
| Basic functions | Know-How protection and safety through encoding of projects |
|---|---|
| Realtime database coupling with ODBC to MS ACCESS, MS EXCEL and SQL server | |
| FDA CFR 21 Part 11 compatible | |
| Expanded functionality | Networking |
| Integrated function | Networking |
| Online configuration | |
| Password protection | |
| Language selection | |
| Number of I/O nodes | 4096 I/O bytes |
Hardware requirements
| Hard disk | min. 1 GByte (recommended: 2 GB) |
|---|---|
| RAM | min. 1 GByte (2 GB for Windows Vista and Windows 7) |
| CPU | Pentium/Celeron, 1.6 GHz |
| Optical drive | DVD-ROM |
| Monitor resolution | XGA (1024 x 768) |
| Operating equipment | Keyboard, mouse |
Software requirements
| Operating system | Windows®XP (SP3) |
|---|---|
| Windows®Vista Business | |
| Windows®7 Professional SP1 (32-Bit/64-Bit) | |
| Windows®7 Ultimate SP1 (32-Bit/64-Bit) | |
| Windows®8 Professional (32-Bit/64-Bit) | |
| Windows®8 Enterprise (32-Bit/64-Bit) | |
| Windows®Server 2003 | |
| Windows®Server 2008 | |
| Windows®Server 2008 R2 | |
| Windows®10 (32-Bit/64-Bit) |
Classifications
eCl@ss
| eCl@ss 5.0 | 27242500 |
|---|---|
| eCl@ss 6.0 | 27242500 |
| eCl@ss 7.0 | 27242502 |
| eCl@ss 8.0 | 27242502 |
| eCl@ss 9.0 | 27242502 |
| Feature Name | Feature Value |
|---|---|
| With OPC-interface, server (EF003172) | No |
| With OPC-interface, client (EF003173) | No |
| With programming interfaces (EF003174) | No |
| Multi-user capable, runtime (EF003152) | No |
| Max. number of clients (EF003154) | 0 |
| Suitable for web-clients (EF003155) | No |
| SCADA functionality (EF007458) | No |
| Alarm-management (EF006805) | No |
| Trend representation (EF007510) | No |
| Online projecting possible (EF003158) | Yes |
| Language switch possible (EF007493) | Yes |
| With script language Visual Basic (EF003163) | No |
| With other script language (EF003164) | No |
| Library with object elements (EF003165) | Not available |
| User groups (password protection) possible (EF003166) | Yes |
| Function process diagnostics (EF003170) | Not available |
| Min. required processor speed for runtime system (EF003175) | 1.6 GHz |
| Min. required processor speed for configuration software (EF003181) | 1.6 GHz |
