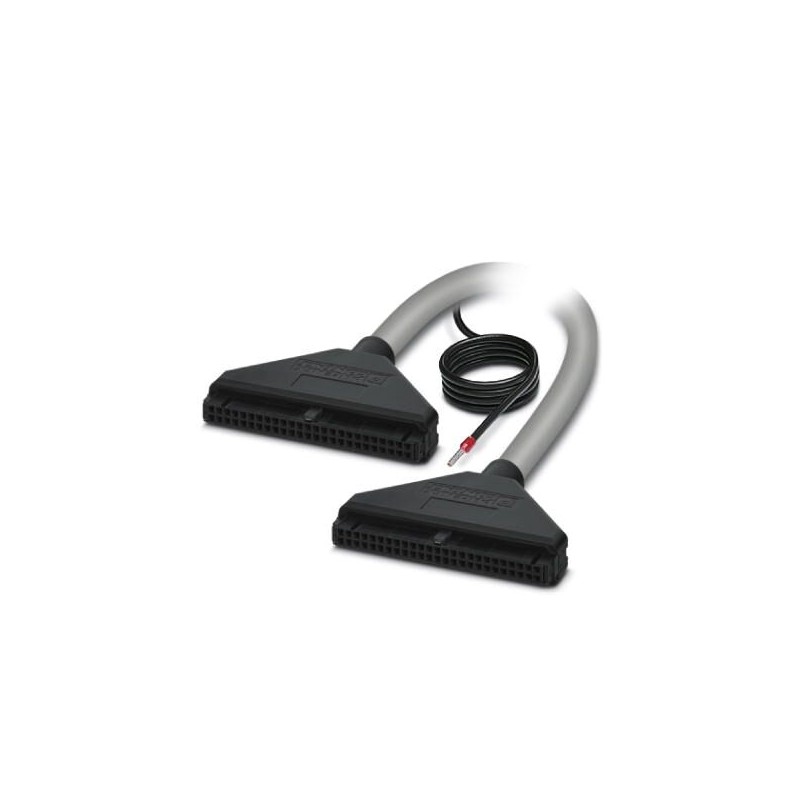

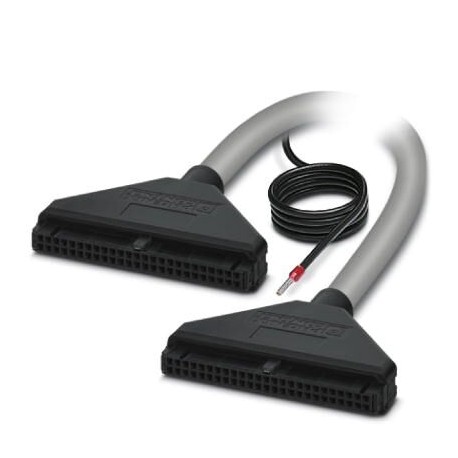

VIP-CAB-FLK50/21,0M/S/SC057 1098755 PHOENIX CONTACT Assembled shielded round cable with additional shield co..
VIP-CAB-FLK50/21,0M/S/SC057
1098755
PHOENIX_CONTACT
Assembled shielded round cable with additional shield connection and two molded 50-pos. female connectors (1:1 connection). The cable has two 180° punched-on connectors, cable length: 21 m
Shielded ready-made round cable, with additional screen connection and two 50-pin injected plug pins (1:1 connection). The cable has two 180° plug-in connectors, cable length: 21 m
PLC's > PLC connection cable
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C (fixed installation) |
|---|---|
| -10 °C ... 70 °C (flexible installation) | |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Maximum altitude | ≤ 2000 m |
| Degree of protection | IP20 |
| ≥ IP54 (Installation location) |
General
| Max. permissible operating voltage | 24 V DC |
|---|---|
| Max. current carrying capacity per path | 0.5 A |
| Length of cable | 21 m |
| External cable diameter | 11 mm ±0,3 mm |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Single wire, number of litz wires | 7 |
| Single wire, material | Cu tin-plated |
| Wire diameter incl. insulation | 1 mm ±0.03 mm |
| Smallest bending radius, fixed installation | 113 mm |
| Smallest bending radius, movable installation | 203 mm |
| Bending cycles | 5000 (at a radius of ≥ 18x outside diameter) |
| Cable, preassembly | Insulation displacement, IEC 60352-4/DIN EN 60352-4 |
| Shielding | yes |
| Tinned copper-braided shield, approx. 85% covering | |
| Cable insulation resistance | ≥ 20 MΩ/km (20 °C) |
| Cable resistance | ≤ 145 Ω/km (at 20 °C) |
| Outer sheath, material | PVC |
| External sheath, color | gray RAL 7035 |
| Nominal operating mode | 100% operating factor |
Connection data
| Connection name | Flat-ribbon cable connector |
|---|---|
| Connection in acc. with standard | IEC 60603-13 |
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 50 |
| Exit angle | 180 ° |
| Insertion/withdrawal cycles | > 200 |
| Pitch | 2.54 mm |
Connection data 2
| Connection name | Flat-ribbon cable connector |
|---|---|
| Connection in acc. with standard | IEC 60603-13 |
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 50 |
| Exit angle | 180 ° |
| Insertion/withdrawal cycles | > 200 |
| Pitch | 2.54 mm |
Standards and Regulations
| Flame resistance | according to IEC 60332-1 |
|---|---|
| According to CSA FT1 | |
| in acc. to UL VW1 | |
| Resistance to oil | against occasional splashes |
| Gasoline resistance | against occasional splashes |
| Designation | Air clearances and creepage distances |
| Standards/regulations | DIN EN 50178 |
| Rated insulation voltage | 50 V |
| Rated surge voltage | 0.5 kV (1.2/50 μs) |
| Insulation | Functional insulation |
| Pollution degree | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 29 Mbytes |
|
