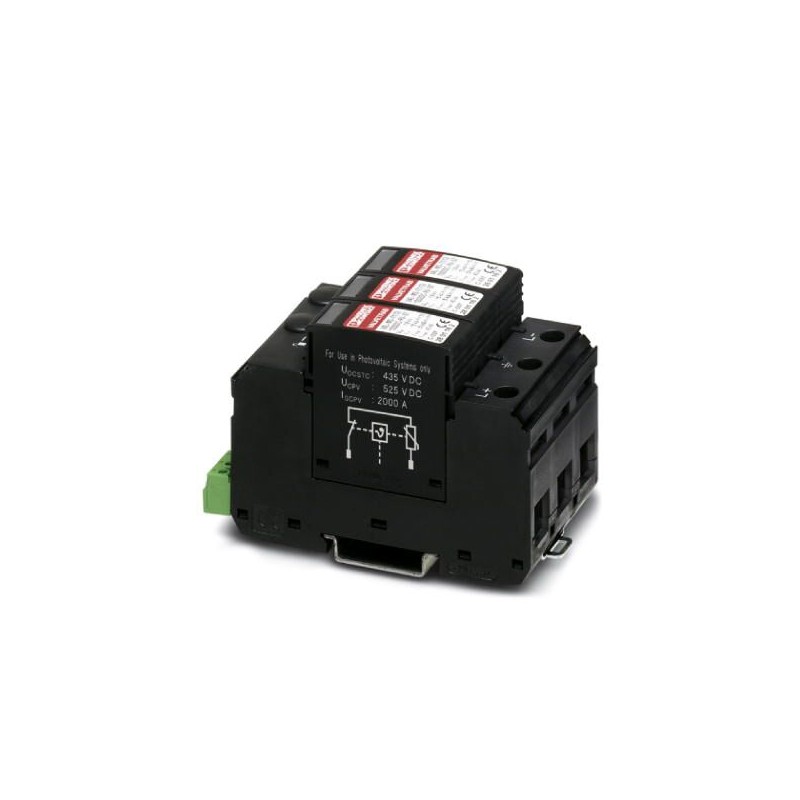

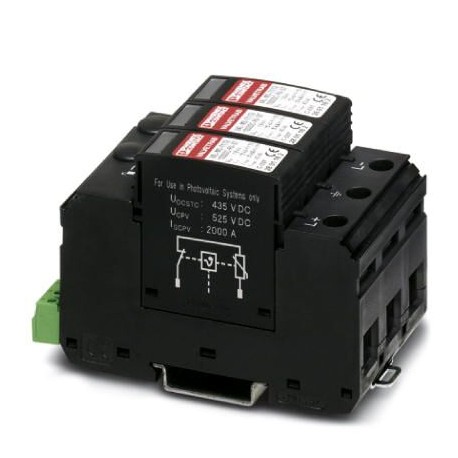

VAL-MS-T1/T2 1000DC-PV/2+V-FM/40 1099593 PHOENIX CONTACT Surge protection
VAL-MS-T1/T2 1000DC-PV/2+V-FM/40
1099593
PHOENIX_CONTACT
40
Surge protection
Lightning surge / current protection device for isolated and grounded 2-pole photovoltaic 1000V DC direct current systems, for rail mounting, 3-pole base element with remote indication contact, three plug-in protection elements with temperature control, status message on each male connector.
Earthing, lightning and surge protection > Surge protection device for power supply systems
Trabtech (TT)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| System configuration DC (EF009926) | Yes |
| System configuration IT (EF009927) | No |
| System configuration TN (EF009928) | No |
| System configuration TN-C (EF009929) | No |
| System configuration TN-C-S (EF009933) | No |
| System configuration TN-S (EF009930) | No |
| System configuration TT (EF009931) | No |
| System configuration other (EF009932) | No |
| Lightning impulse current (10/350 µs) (EF000421) | 5 kA |
| Nominal discharge surge current (8/20) (EF004214) | 40 kA |
| Max. continuous voltage DC (EF004777) | 1170 V |
| Voltage protection level (DC+ - DC-) (EF009643) | 3.5 kV |
| Voltage protection level (DC+/DC- - PE) (EF009644) | 3.5 kV |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Construction size (EF002566) | Other |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 25 mm² |
| With remote signalling contact (EF000422) | Yes |
| Signalling at the device (EF004241) | Optic |
| Category type 1 (EF004229) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PROTECTION EN .pdf | 27 Mbytes |
|
