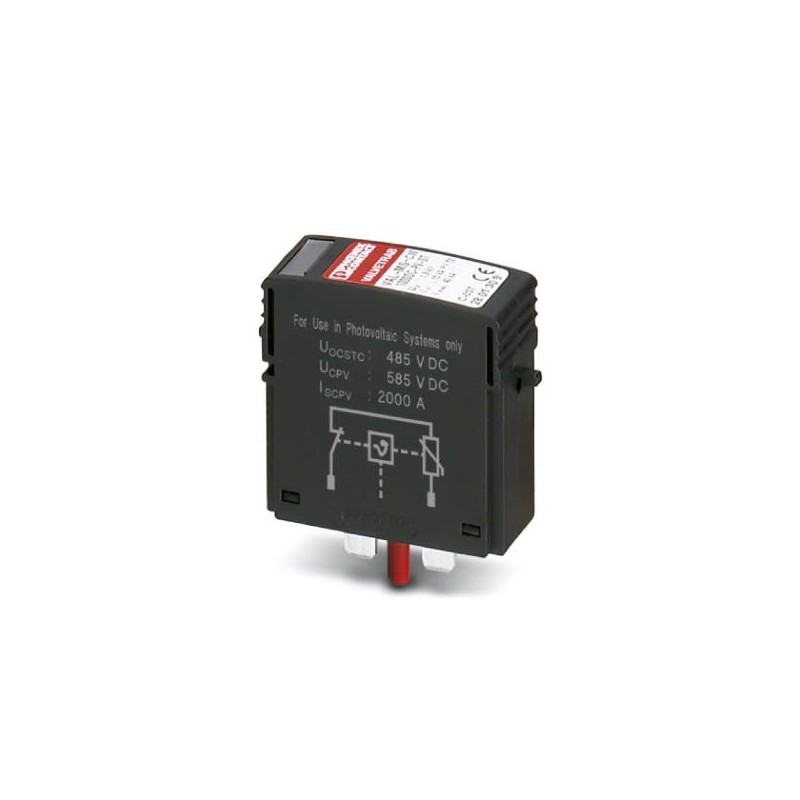

VAL-MS 1000DC-PV-ST/36 2908668 PHOENIX CONTACT Protection plug-in replacement for combinations of arresters ..
VAL-MS 1000DC-PV-ST/36
2908668
PHOENIX_CONTACT
36
Protection plug-in replacement for combinations of arresters PV line of products, VAL-MS 1000DC-PV-...
Trabtech (TT)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | Two million nine hundred eight thousand six hundred sixty eight |
|---|---|
| Packing unit | 36 pcs |
| Key selling | CL1151 - |
| Minimum order quantity | 36 pcs |
| EAN | Four trillion fifty five billion six hundred twenty six million three hundred twenty one thousand one hundred three |
| Unit weight (excluding packaging) | 49,300 g |
| Tariff number tariff | Eighty five million three hundred sixty three thousand ten |
| Country of origin | (Germany) |
Environmental conditions
| Index of protection | IP20 |
|---|---|
| Room temperature (service) | -40 °C ... 80 °C |
| Ambient temperature (storage / transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level, that is to say, on the level of the sea)) |
| Humidity of air permissible (service) | 5 % ... 95 % |
| Shocks (in service) | 60g (Semisinusoide / 11ms / 3x X, And, Z) |
| Vibration (in-service) | 7.5 g (5-500 Hz / 2.5 h / XYZ) |
Overview
| Class test IEC | PV II |
|---|---|
| PV T2 | |
| Type IN | T2 |
| Behavior problems in SPD | CMO (Behavior with failure of disconnection) |
| Instead of mounting | Interior |
| Accessibility | Accessible |
| Mounting location of the disconnect device | Internal |
| Mounting type | in a base element |
| Color | deep black RAL 9005 |
| Material housing | PA 6.6-FR |
| Pollution degree | Two |
| Class of flammability according to UL 94 | V-0 |
| Construction | Male |
| Message surge Protection faulty | optical |
Protection circuit side voltage (continuous DC)
| Constant voltage maximum OrCPV | 585 V DC |
|---|---|
| Resistance to short-circuit ISCPV | Two thousand |
| Current of constant service ICPV | < 20 µA |
| Absorption of standby power PC | ≤ 25 mVA |
| Transient current nominal (8/20) µs | 15 kA |
| Transient current maximum Imax(8/20) µs | 40 kA |
| Level of protection Orp | ≤ 1,9 kV |
| Residual voltage Ures | ≤ 1,9 kV (In) |
| ≤ 1.5 kV (with 5 kA) | |
| ≤ 1,7 kV (10 kA) | |
| ≤ 2 kV (20 kA) | |
| ≤ 2,3 kV (30 kA) | |
| ≤ 2.5 kV (40 kA) | |
| Reaction time tTo | ≤ 25 ns |
| Insulation resistance Riso | > 5 GΩ (at 500 V DC) |
Specifications UL
| Type SPD | 1CA |
|---|---|
| Constant voltage maximum MCOV | 1170 V DC |
| Rated voltage | 1170 V DC |
| Tracks of protection | (L+) - (L-) |
| (L+) - G | |
| (L-) - G | |
| Power distribution system | DC PV |
| Protection nominal voltage VPR | 3 kV |
| Transient current nominal In | 10 kA |
| Capacity of short circuit (SCCR) | 50 kA |
Ratings
eCl@ss 10.0.1Twenty seven million one hundred thirty thousand eight hundred ninetyeCl@ss 4.0Twenty seven million one hundred forty thousand two hundred oneeCl@ss 4.1Twenty seven million one hundred thirty thousand eight hundred oneeCl@ss 5.0Twenty seven million one hundred thirty thousand eight hundred oneeCl@ss 5.1Twenty seven million one hundred thirty thousand eight hundred oneeCl@ss 6.0Twenty seven million one hundred thirty thousand eight hundredeCl@ss 7.0Twenty seven million one hundred thirty thousand eight hundred fiveeCl@ss 8.0Twenty seven million one hundred thirty thousand eight hundred ninetyeCl@ss 9.0Twenty seven million one hundred thirty thousand eight hundred ninety
UNSPSC 6.01Thirty million two hundred twelve thousand tenUNSPSC 7.0901Thirty nine million one hundred twenty one thousand six hundred tenUNSPSC 11Thirty nine million one hundred twenty one thousand six hundred tenUNSPSC 12.01Thirty nine million one hundred twenty one thousand six hundred tenUNSPSC 13.2Thirty nine million one hundred twenty one thousand six hundred twenty
